TOSOT DC INVERTER U-MATCH AIR
72
(6) Electric wiring of outdoor unit side
NOTICE!
When connecting the power supply cord, make sure that the phase of the power supply
matches with the exact terminal board. If not, the compressor will rotate reversely and run improperly.
Remove the big handle 24k /front board (36-60k) of the outdoor unit and insert the end of the
communication cord and the power cable into the terminal board.

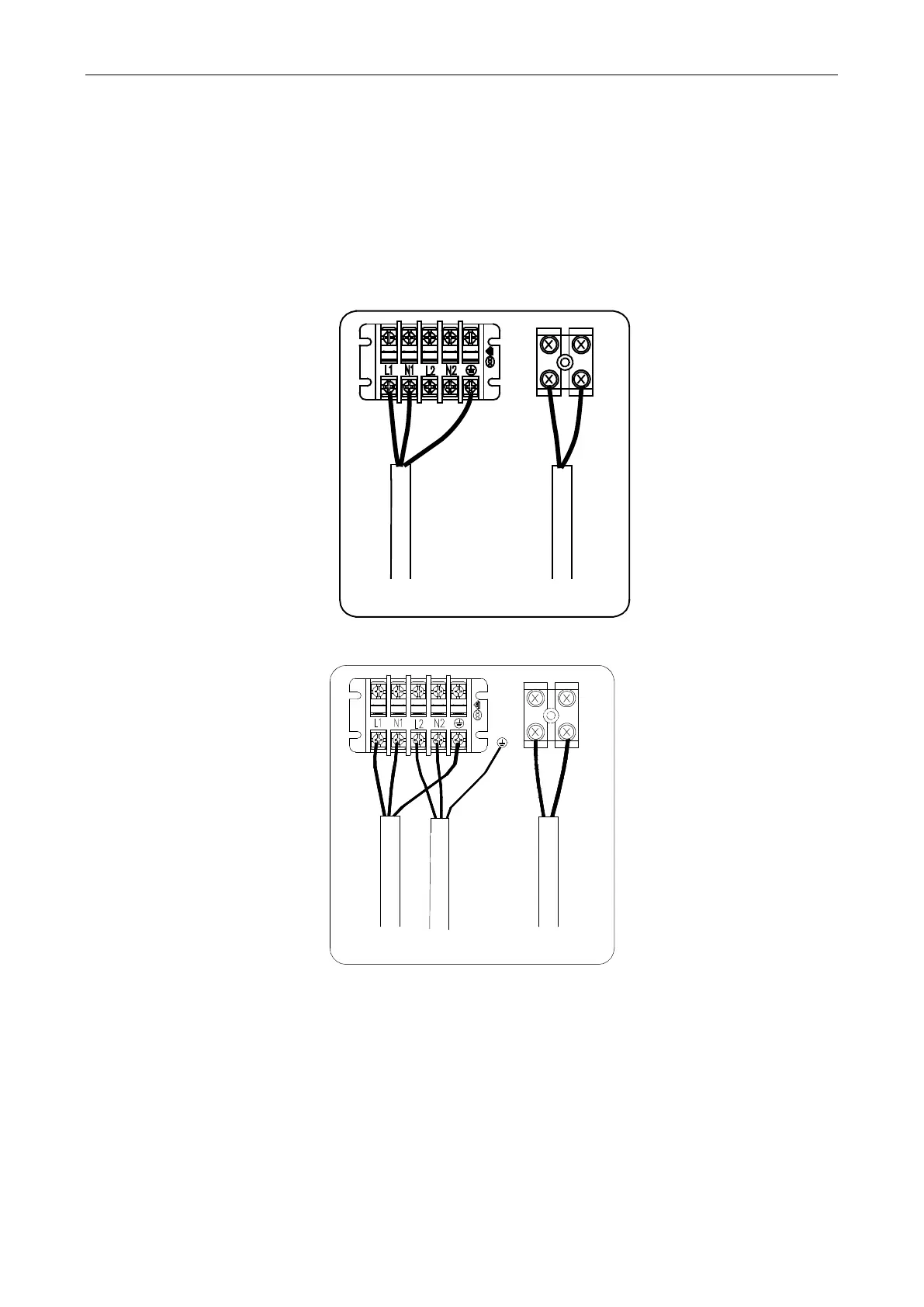

Single phase:
1) Separate Power Supply for indoor unit and outdoor unit.
2) The Power supply for indoor units from outdoor unit.
1
2
Power supply
to indoor unit
Power lines should go along the right side plate. Communication lines between indoor and outdoor
units also should go along the right side plate and keep away from power lines.
To Next Page
