TWP Weighing Indicator Service Manual
- 4 -
2. INSTALLATION AND PRECAUTION
 The weighing indicator is a precision electronic instrument. Handle it care
fully.
 Don’t install the scale in direct sunlight.
 Avoid sudden temperature changes, vibration, wind and water.
 Avoid sudden and jerky acceleration of the load.
 Avoid heavy RF noise.
 Keep the indicator clean.
Load Cell Connection

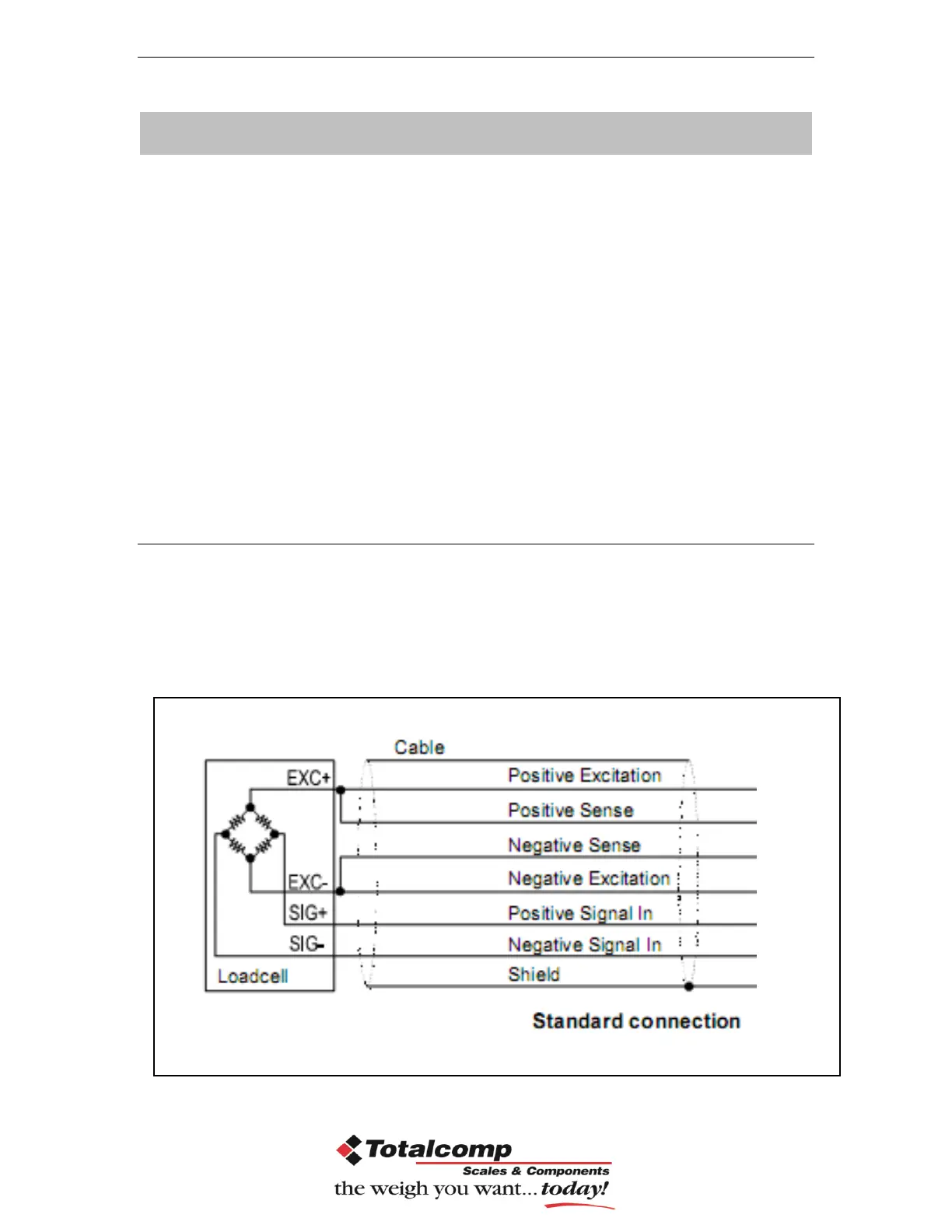

 Connect the load cell cables to the terminal as shown below.
 The load cell drive voltage is 5 VDC, between positive excitation and
negative excitation.
5
5
4
4
1
2
3
