Installing the Virtuo Floor Stand
Connecting the subwoofer and array speaker wires
Virtuo Floor Stand Guide
33
Connecting the subwoofer and array speaker wires

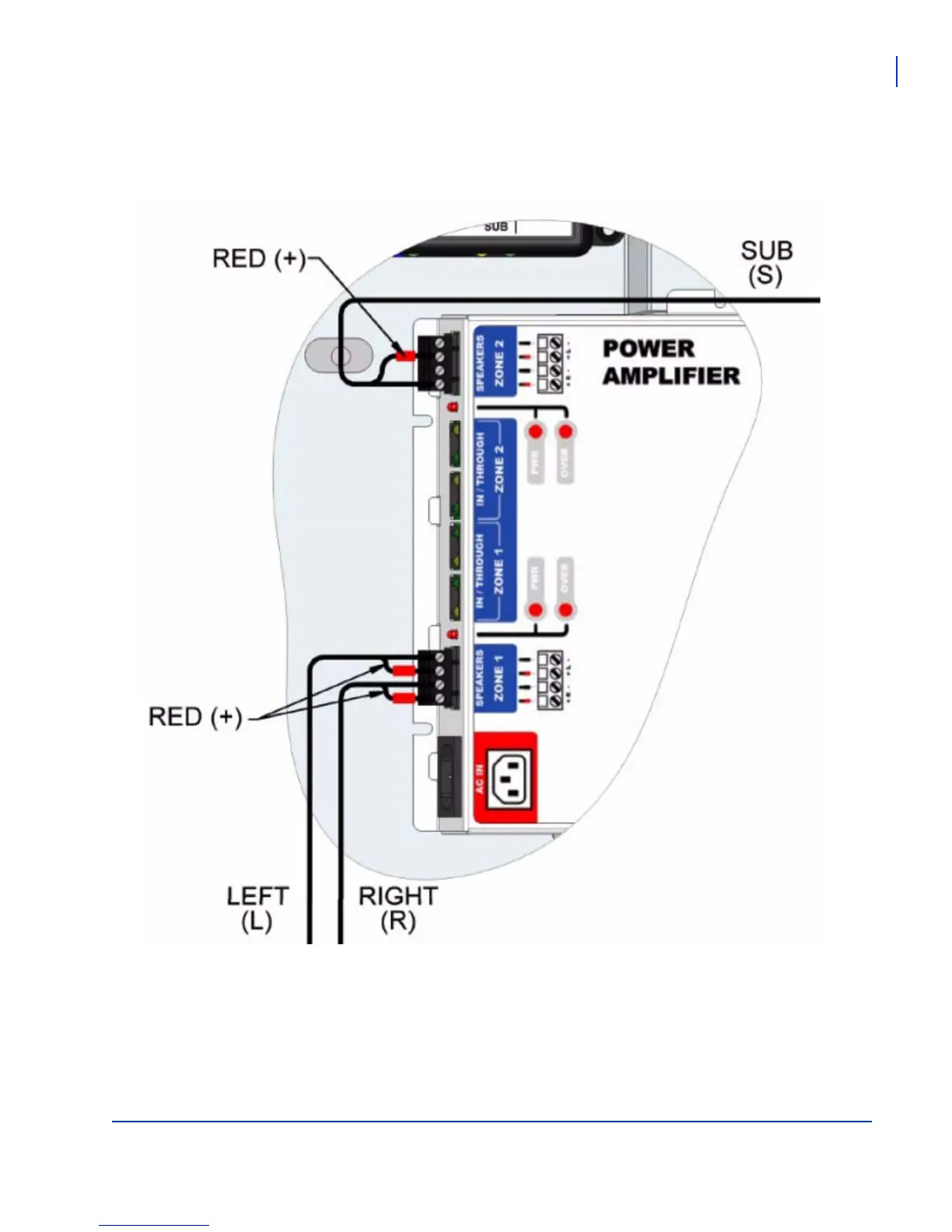

1. Connect the subwoofer speaker wire to Zone 2 output of the power amplifier according to this diagram.
2. Connect the array speaker wires to Zone 1 output of the power amplifier according to this diagram.
