Speaker wiring examples
36
Speaker wiring examples
These diagrams show examples of some possible speaker wiring configurations.

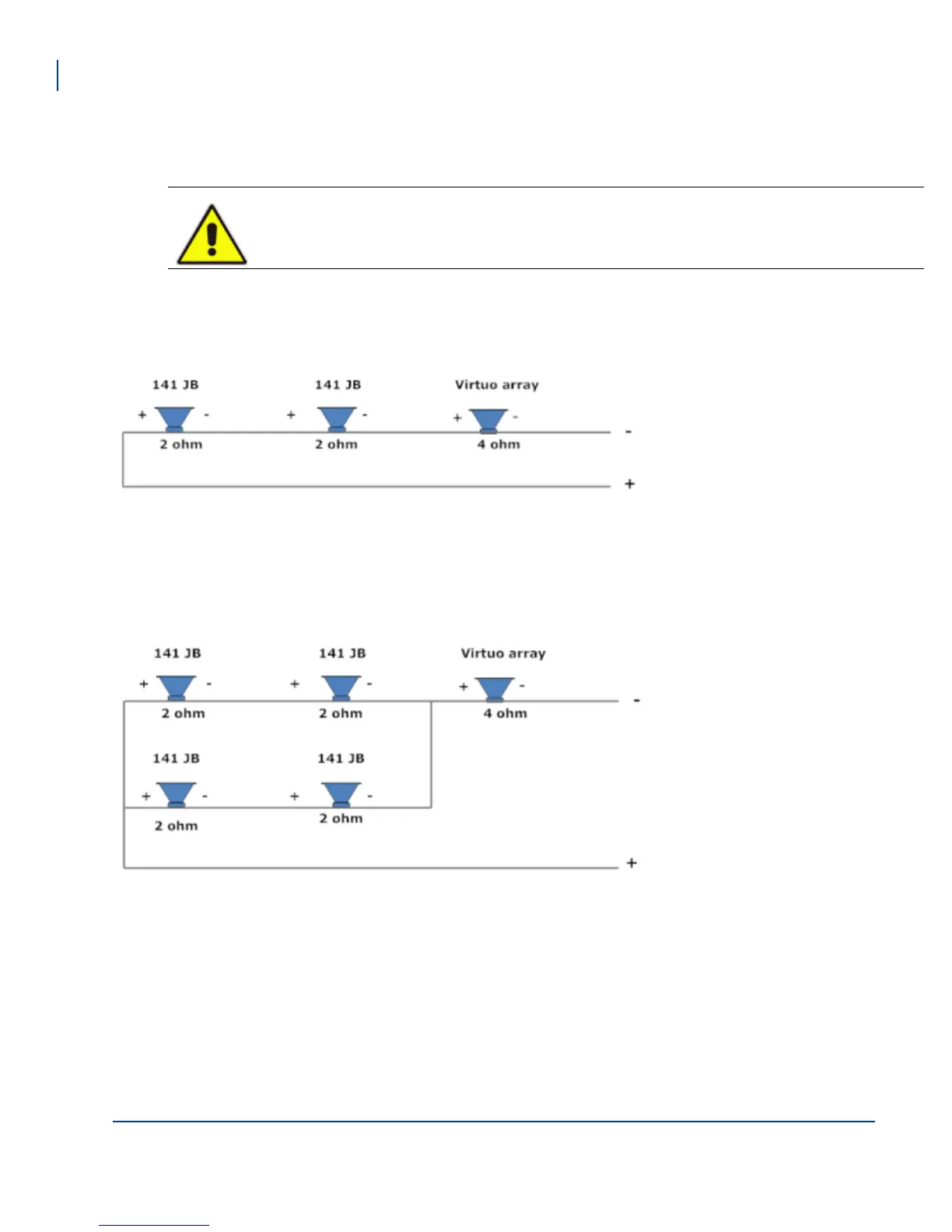

2 Bose 141 JB speakers & 1 Virtuo Array
This series configuration provides a total of 8 ohm impedance load to the amplifier
4 Bose 141 JB speakers & 1 Virtuo Array
This parallel configuration provides a total of 6 ohm impedance load to the amplifier
CAUTION: Any configuration you choose must include a series connection with a Virtuo array
speaker.
