tousek ST 63 - 2.5 Programming the ST 63 Unit; Programming Buttons and Display Usage; Programming Menu Structure; Initial Basic Settings Configuration

- 12 - tousek / EN_ST-63_02 / 25. 03. 2020
–
ESC ENTER
+
text display
• The program menu is divided into „POSITIONING“ „BASIC SETTINGS” and „ MENU CONTROL”
BASIC SETTINGS
•
When entering the programming of the control unit for the rst time you will see the BASIC SETTINGS .
• Here the necessary adjustments for the use of the operator/gate can be set quickly.
• For advanced settings/programming please choose the menu point „menu control”.
MENU CONTROL
• For futher programming you will reach immediatly the MENU (CONTROL) (Basic settings are skipped)
• The menu control includes all kinds of settings.
The di󰀨erent menu points are indicated as follows:
 = selectable settings  = factory settings  = status display
G
shows the menu points which are in the “ BASIC SETTINGS”
Programming menu Adjustments - overview
2.5 Programming ST 63 control unit for folding and swing gates

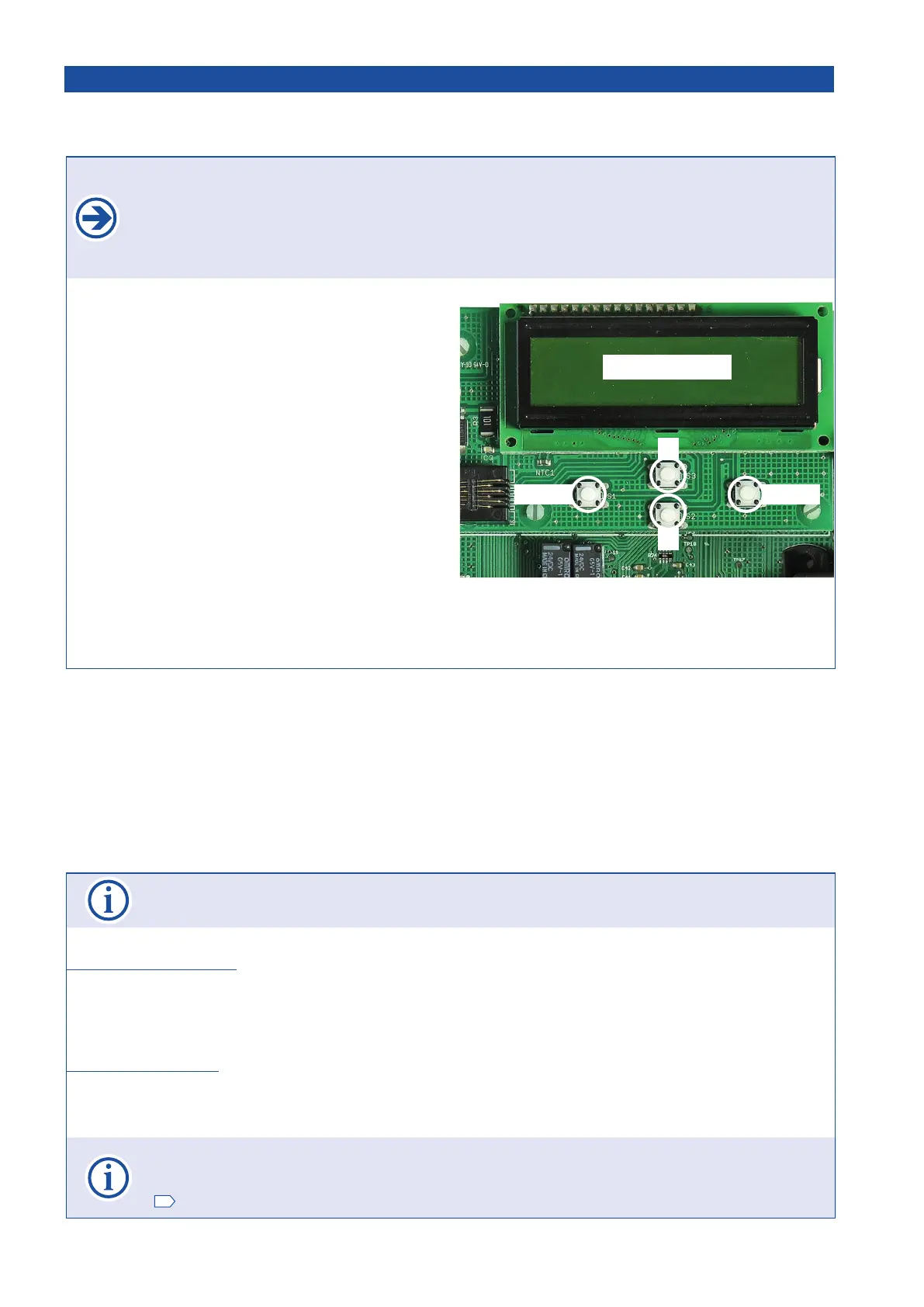

Programming buttons Adjustments - overview
• The adjustment (programming) of the operating parameters is carried out with four programming buttons and
the display.
• Before starting the programming, please choose the language. Use the buttons + or - to choose menu langua-
ge and conrm with ENTER.
•
Note: Language selection can also be chosen by pressing the ESC button for 5s, from any position in menu.
• Before the programming can be started, you have to select the door type (swing gate or folding gate)
• The text display informs about behaviour, chosen menus
and adjustment of di󰀨erent settings.
• The programming of the control is carried out with the help
of four buttons (+, -, ENTER and ESC).
• Scrolling through the available menu points (up/
down) or the adjustment of a parameter (value in-
crease/decrease) is carried out with buttons + and –..
AUTO-COUNT: when holding one of the buttons the value
changes automatically.
• When pressing the ENTER-button a conrmation for
entering the shown menu point, resp. for accepting the
shown value of a parameter is given.
• When pressing the ESC-button you return to the superior
menu point. Possibly changed adjustments of a parameter
are rejected with this button (the former values will remain).
• AUTO-EXIT: if no button is pressed during 1 min. then the
menu switches automatically to the “ready” menu (wihtout
saving changed parameters)
