- 6 - tousek / EN_ST-63_02 / 25. 03. 2020
FU-1 FU-2
ST
KL1
E
A
KL2
for 1-leaf operation:
FU and speed sensor already pre-
wired in the factory for right leaf.
HS

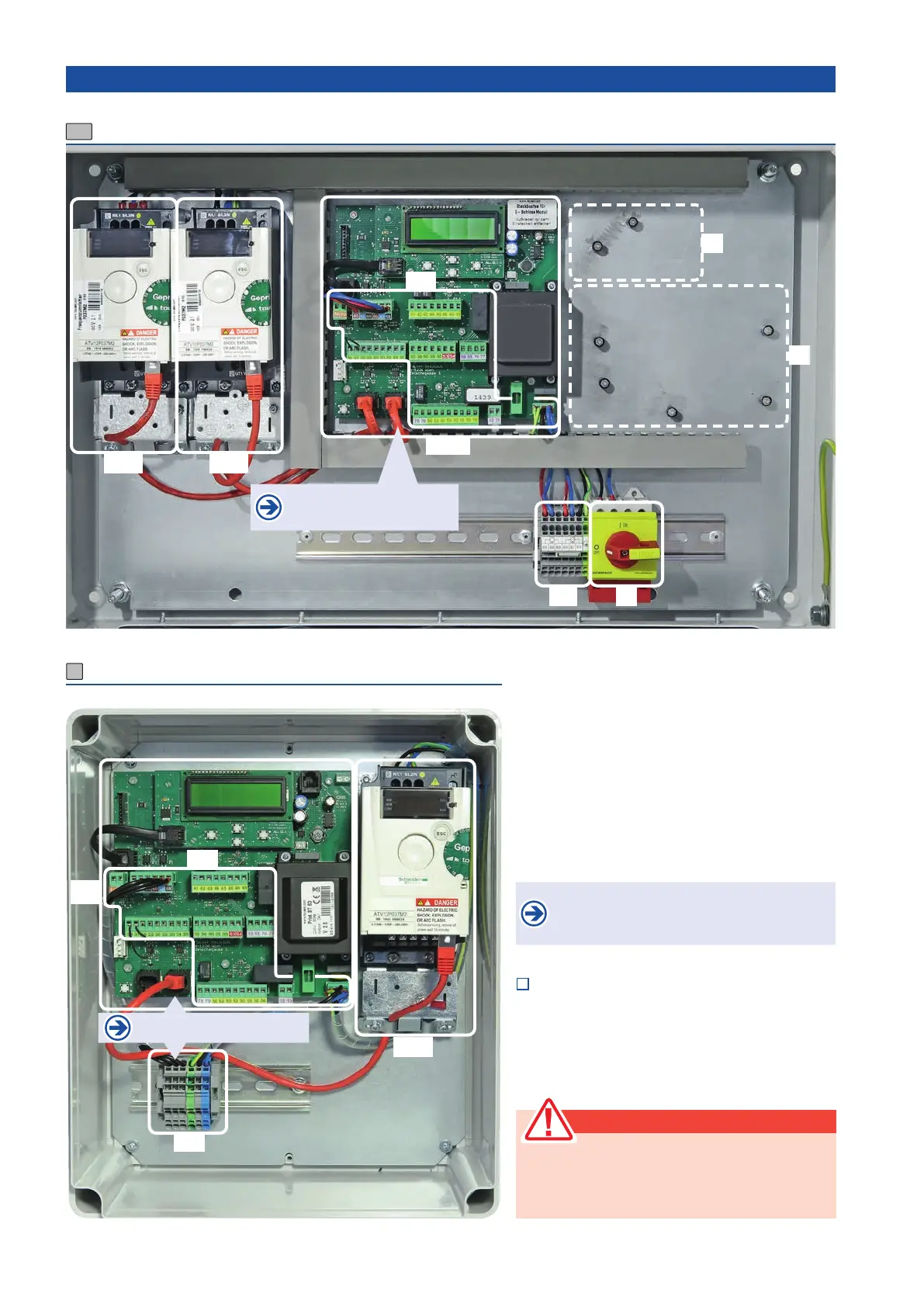

2.1 overview of the control box ST 63 control unit for folding and swing gates
1K
Control unit in plastic housing für 1 leaf operation
components of the control box
FU-1 frequency converter 1
FU-2 frequency converter 2
(only in steel housing)
ST control board with display and four
programming buttons +, -, ENTER and ESC
HS main switch
(only in steel housing)
KL1 control board terminals (ST)
on DIN rail:
KL2 terminal block for 230Va.c. power supply,
speed sensor and grounding connection.
In the steel housing version, the supply voltage
is connected to the main switch (HS).
Expandability with the optional components listed
below is only possible in the steel cabinet
Optionale components in steel housing:

page 7
A tra󰀩c light control board STA 11
E drop bolt modul
MST drop bolt control unit (on housing door)
with 1 or 2 motor control boards to control
1 or 2 drop bolts SAFELOCK
IMPORTANT
The factory setting of the frequency converter
(FU) must not be changed!
In case of changes the warranty becomes au-
tomatically void!
FU-1
ST
KL1
KL2
FU and speed sensor already pre-
wired in the factory for right leaf.
1/2
control unit in steel housing for 1 or 2 leaf operation
