dropbolt control unit for one dropbolt dropbolt control unit for two dropbolts

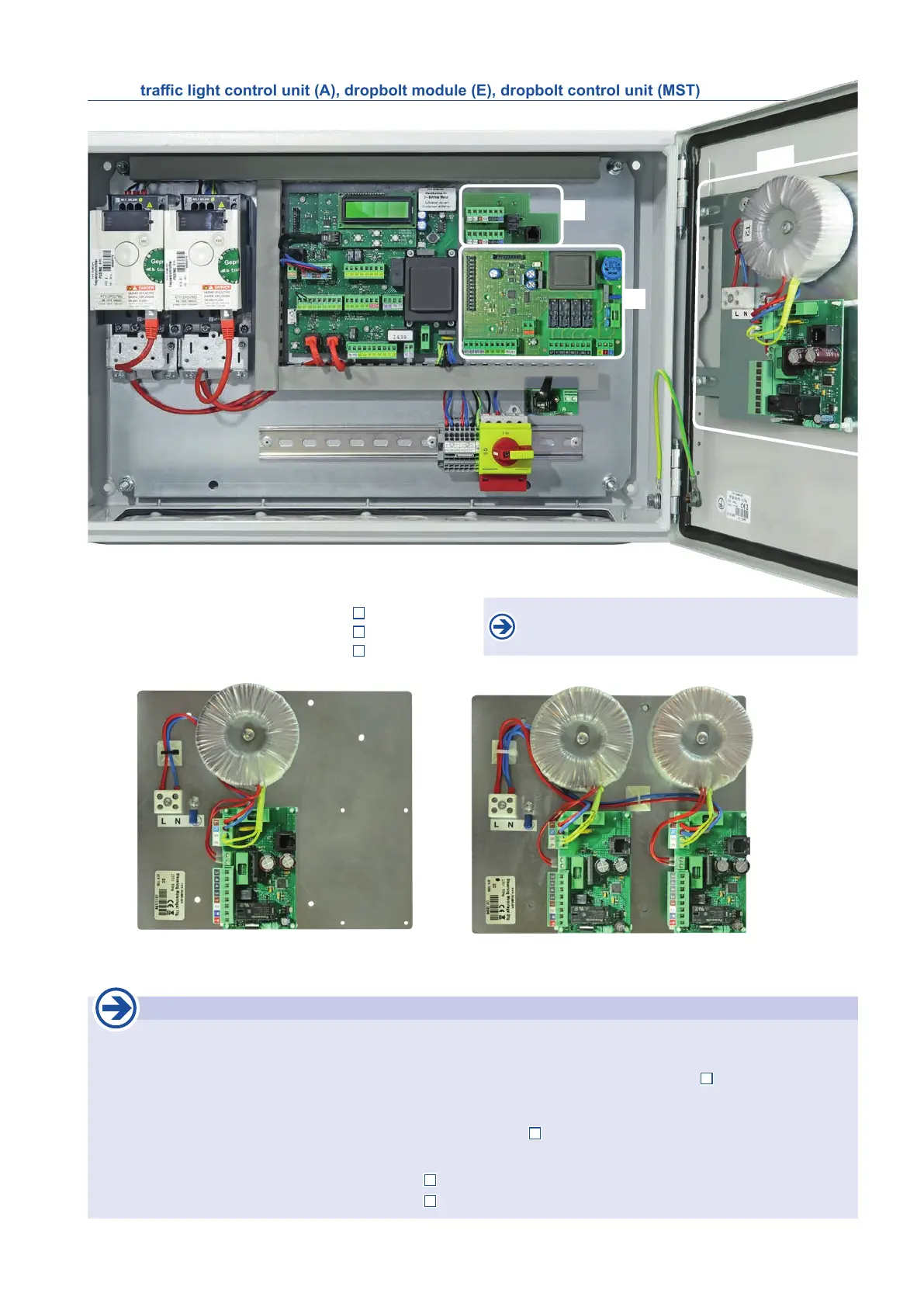

Optional components for steel housing:
tra󰀩c light control unit (A), dropbolt module (E), dropbolt control unit (MST)
E
A
MST
ST 63 including additional components:
A tra󰀩c light control unit STA 11

page 33
E dropbolt module

page 26, 27
MST dropbolt control unit

page 26, 27
For wiring the optional components, please follow the
descriptions on the pages listed.
connections
• The wiring to the standard components (frequency converter, main switch and the connection to the terminals (KL2) on
the DIN rail are carried out at the factory.
• The connection works of the operator must be carried out according to the installation manual (

page 10).
• All other neccesary connection works must be carried out on the connection terminals (KL1) of the control unit.
Except the connection of speed sensor wires and power supply wires which must be connected to the terminal block
(KL2) on the DIN rail or main switch (HS) (in steel cabinet version)

see page 9.
For wiring optional components, please follow the descriptions on the pages listed.
• connection of the dropbolt or the electric lock

page 26–27
• connection of the trac light control unit STA 11

page 33–38
