Technical data
Tra󰀩c light control board STA 11 in plastic housing IP 54 (210 x 310 x 125mm)
Power supply 230Va.c., +6/-10%, 50Hz
Relay load Red/Green tra󰀩c light 230V, max. 60W
Article no. 12120370
Optional equipment induction loop detector ISD 6 (2-channels) • pluggable receiver
General
• To implement tra󰀩c light function the control unit STA 11 has to be connected with the operator control unit via bus system.
Valid for the tra󰀩c light mode:
• The inputs of the pulse buttons of the ST 63 have no function and the impulse emission is only possible
via tra󰀩c light board

page 35–37 (I-loops, pulse buttons, radio)!
• When using a radio receiver in tra󰀩c light mode, the receiver is not to plugged into the slot
of the operator control unit, but into the slot of the tra󰀩c light control!!
5. Optional Tra󰀩c light control unit STA 11 STA 11
• Connection possibility of two impulse switches or induction loops for Green request and two Red/Green tra󰀩c lights 230V,
60W (inside and outside).
• Connection slots for optional radio receiver and induction loop detector
• Only for control unit ST 63 in steel housing
•

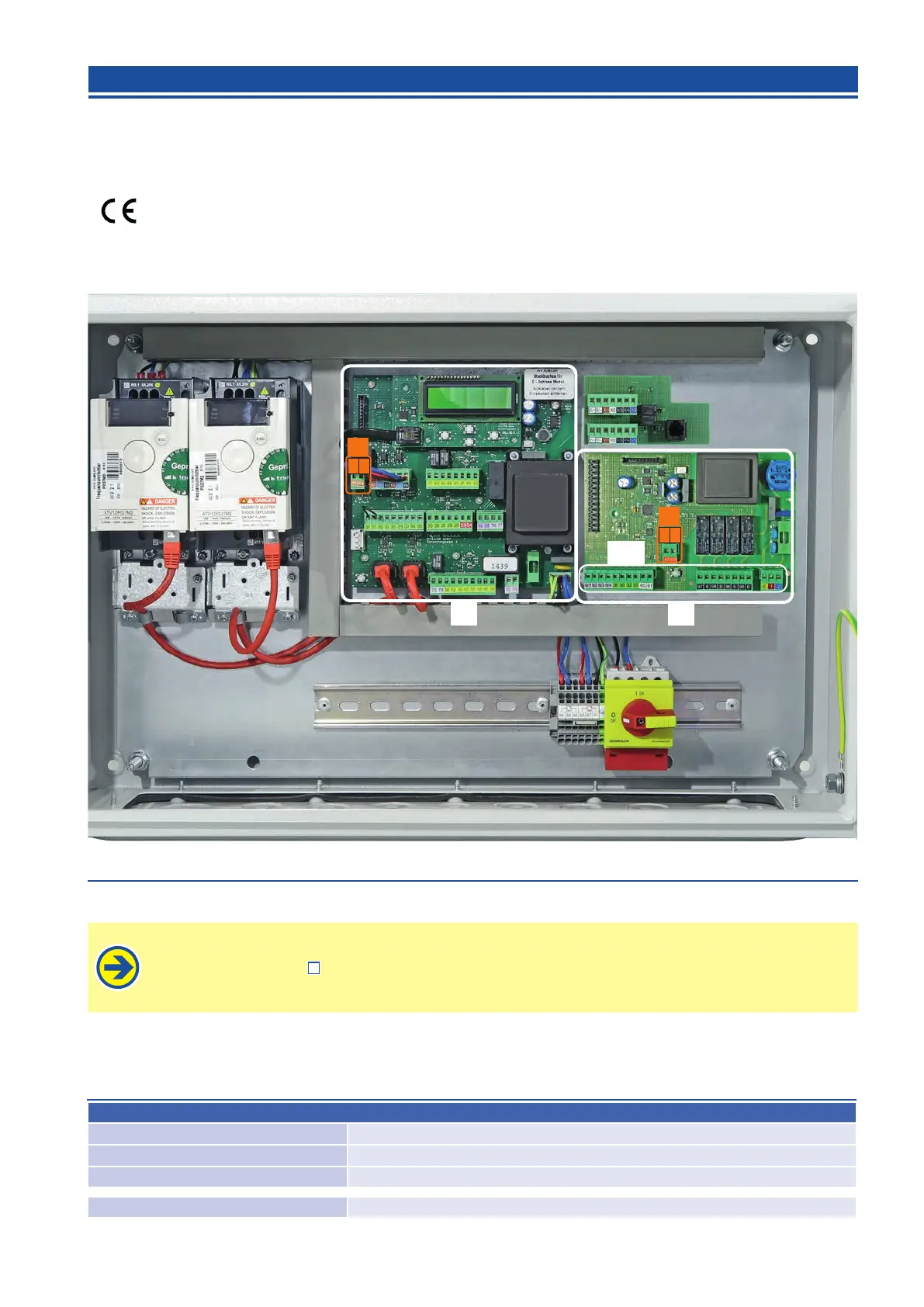

(ST) control board ST63
(A) traffic light control STA 11
(B) Bus terminals (88 / 89)
(K-A) terminals of the traffic light
control board STA 11
ST A
B
88 89
B
88 89
K-A
