tousek ST 63 - 4. Initial System Operation; Essential Preparation Steps; Language and Gate Type Selection; Basic Settings Adjustment for Motor

- 30 - tousek / EN_ST-63_02 / 25. 03. 2020
important: preparation works
• All electrical installations (control panels, safety devices ...) have to be made in full conformity with the applying rules
and laws.
Attention: if no stop switch is connected then the terminals KL1 30/31 have to be bridged.
• The mechanical limits have to be placed so that contact edges are not triggered, as this would lead to an
error message.
• Unlock emergency release of operator and set gate to half-opened position. Then lock the operator again.
• Switch on the operator (correct connection necessary).
• Important: Putting into operation in Impulse mode (standard setting) and not in dead man mode.
• During initial operation the choices of language and gate type (swing- or folding gate) are made rst, afterwards
in the „Basic settings” the adjustment of the most important operator settings. After the successfull system test the
detection of limit positions of gate is performed automatically.

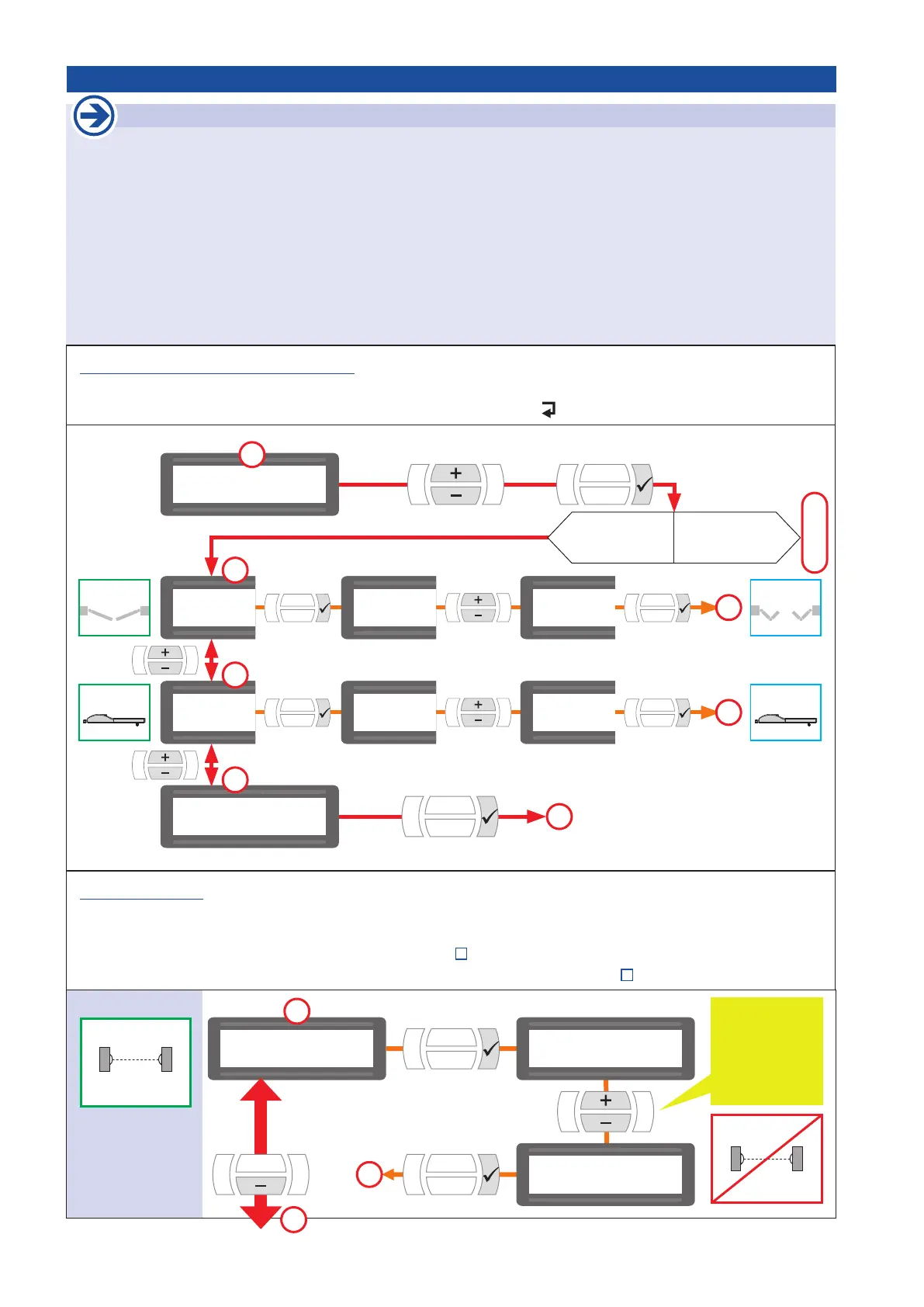

LANGUAGE and GATE TYPE SELECTION
• Can be selected during initial operation (hence after reset to factory settings).
• Language selection can be also chosen by pressing the ESC button (
) for 5s, from any position in menu.
BASIC SETTINGS
• For setting the most important adjustments for initial operation of motor.
• Can be selected during initial operation (hence when restoring the factory setting).
• All safety devices are activated when leaving factory (

page 13, 14).
• The next programming adjustments are made in THE MAIN SETTINGS MENU (

page 12–14).
factory settings
PHC = photocell
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
PHC inside
3
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
during closing
reverse
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
PHC inside
not active
change? YES
conrm
3
4
inner photocell
REVERSING
Select a setting (+/-):
 not active
 during closing
reverse
 stop, open after
release
 during open stop,
then open
inner photocell
e.g.
return
to previous location
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
gate type
swing gate
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
language
Deutsch
1
scroll conrm
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
basic settings
conrm
2a
3
2c
putting into operation
(same step after
factory reset)
5s ESC
(language selection)
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
gate type
swing gate
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
gate type
folding gate
swing gate
folding gate
conrmchange? YES
2a
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
operator
X3TP
2b
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
operator
X3TP
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
operator
X4TP
X3TP X4TP
conrmchange? YES
2b
4. Putting into operation ST 63 control unit for folding and swing gates
