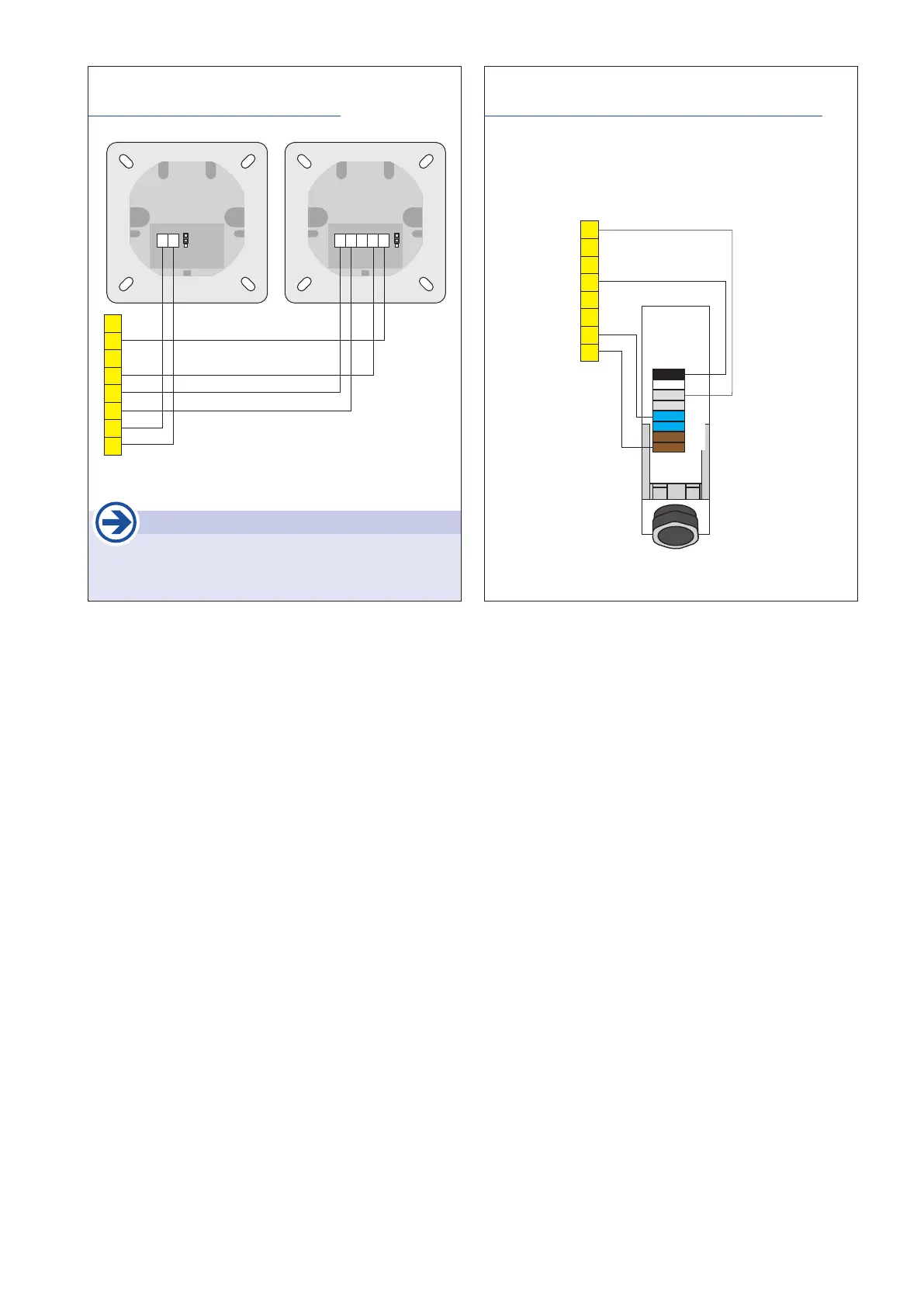

tousek ST 63 - Photocell Wiring Examples; LS 26 Outer Photocell Wiring; RLS 620 Back Area Photocell Wiring; Jumper Adjustment for Photocell Components

tousek / EN_ST-63_02 / 25. 03. 2020 - 19 -
Back area reective photocell
Tousek RLS 620 as safety device
24Va.c.
12–240V
a.c./d.c.
NO
NC
COM
COM
49
48
46
45
44
43
42
41
KL1
Important
• Jumper J of transmitter and receiver has to be
adjusted in the same way.
Outer photocell
Tousek LS 26 as safety device
+
~
-
~
12/24V
J
+
~
-
~
12/24V
NC C NO
J
transmitter receiver
49
48
46
45
44
43
42
41
KL1
