14−8
−ENGINE MECHANICAL PARTIAL ENGINE ASSY (1CD−FTV)(From September,
2003)
1CD−FTV ENGINE REPAIR MANUAL (RM1046E)

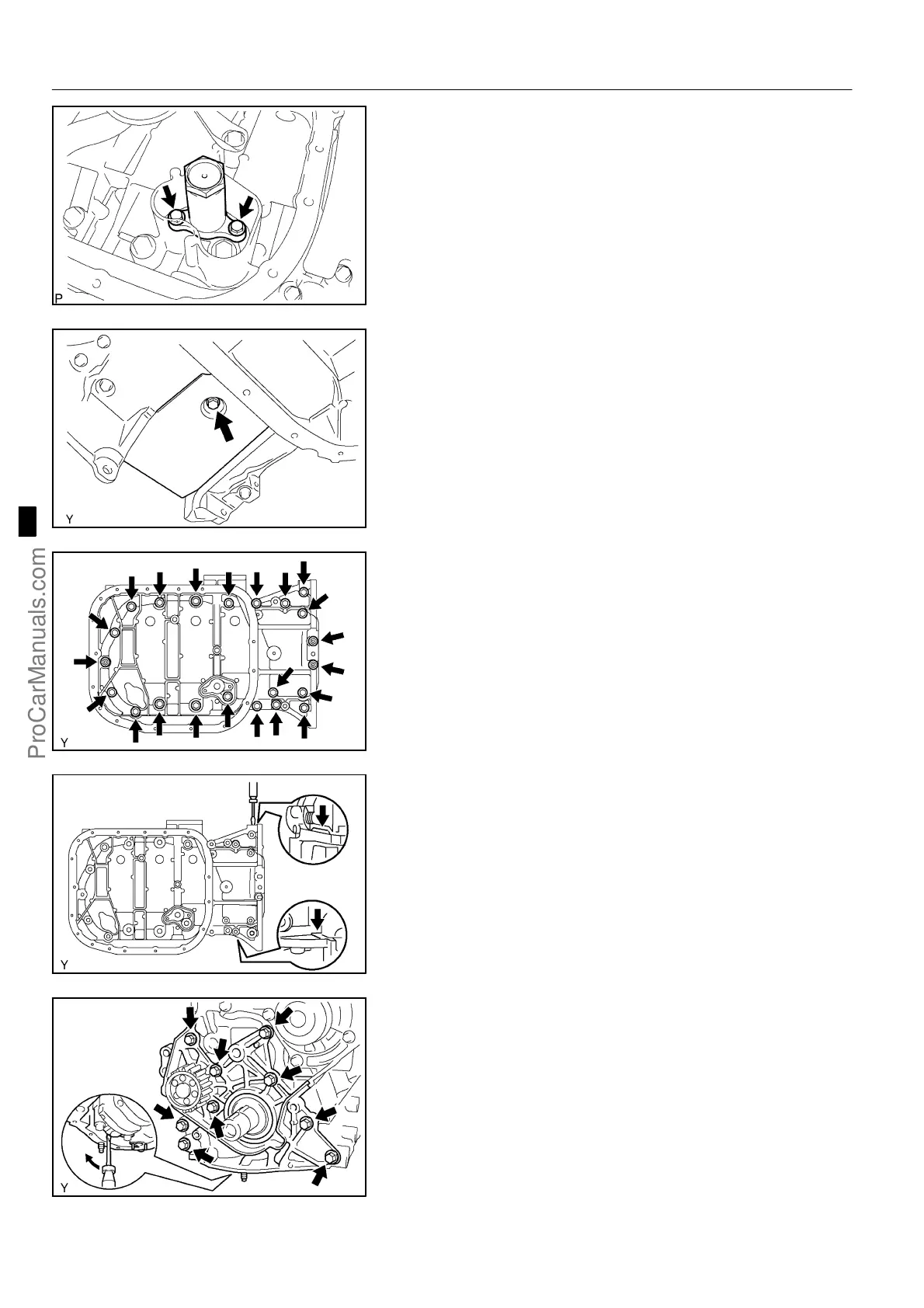

19. REMOVE OIL REGULATOR ASSY
(a) Remove the 2 bolts and oil regulator.
20. REMOVE OIL PAN INSULATOR
(a) Remove the bolt and oil pan insulator.
21. REMOVE OIL PAN SUB−ASSY
(a) Remove the 19 bolts and 3 nuts.
(b) Using a screwdriver, remove the oil pan by prying be-
tween the cylinder block and No. 1 oil pan.
NOTICE:
Be careful not to damage the cylinder block and No. 1 oil
pan.
22. REMOVE OIL PUMP ASSY
(a) Remove the 9 bolts.
(b) Remove the oil pump by prying between the oil pump and
main bearing cap using a screwdriver.
(c) Remove the gasket.
