Toyota 1CD-FTV - Install W;Pin Piston Sub−Assy

A09512
Groove
A56048
A09497
A56046
A87946
Front Mark
(Arrow)
Front Mark
(Protrusion)
−ENGINE MECHANICAL CYLINDER BLOCK ASSY (1CD−FTV)(FromSeptember,
2003)
14−59
1CD−FTV ENGINE REPAIR MANUAL (RM1046E)

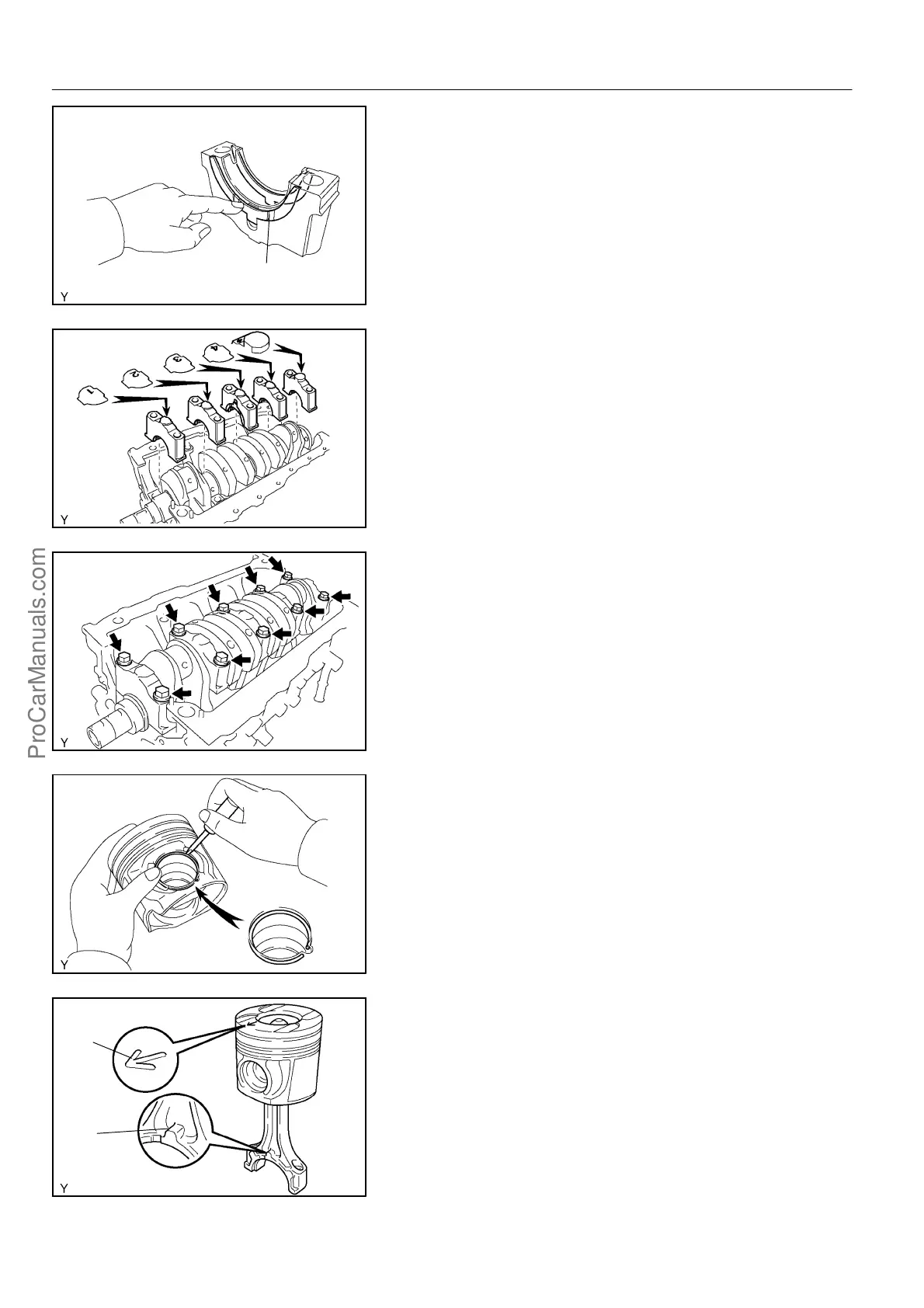

(c) Install the 2 thrust washers on the No. 3 bearing cap with
the oil grooves facing outward.
(d) Install the 5 main bearing caps in their proper locations.
HINT:
Each bearing cap has a number and font mark.
(e) Apply a light coat of engine oil to the threads and under-
heads of the main bearing cap bolts.
(f) Install and uniformly tighten the 10 bolts of the main bear-
ing cap in several steps.
Torque: 115 N×m (1,173 kgf×cm, 85 ft×lbf)
(g) Check that the crankshaft turns smoothly.
28. INSTALL W/PIN PISTON SUB−ASSY
(a) Install a new snap ring on one side of the piston pin hole.
(b) Gradually heat the piston up to approximately 60_C
(140_F).
(c) Coat the piston pin and piston hole of the piston with en-
gine oil.
(d) Align the front marks of the piston and connecting rod,
then push in the piston pin by hand.
(e) Install a new snap ring on the other side of the piston pin
hole.
