7-98 7 DISPLAY

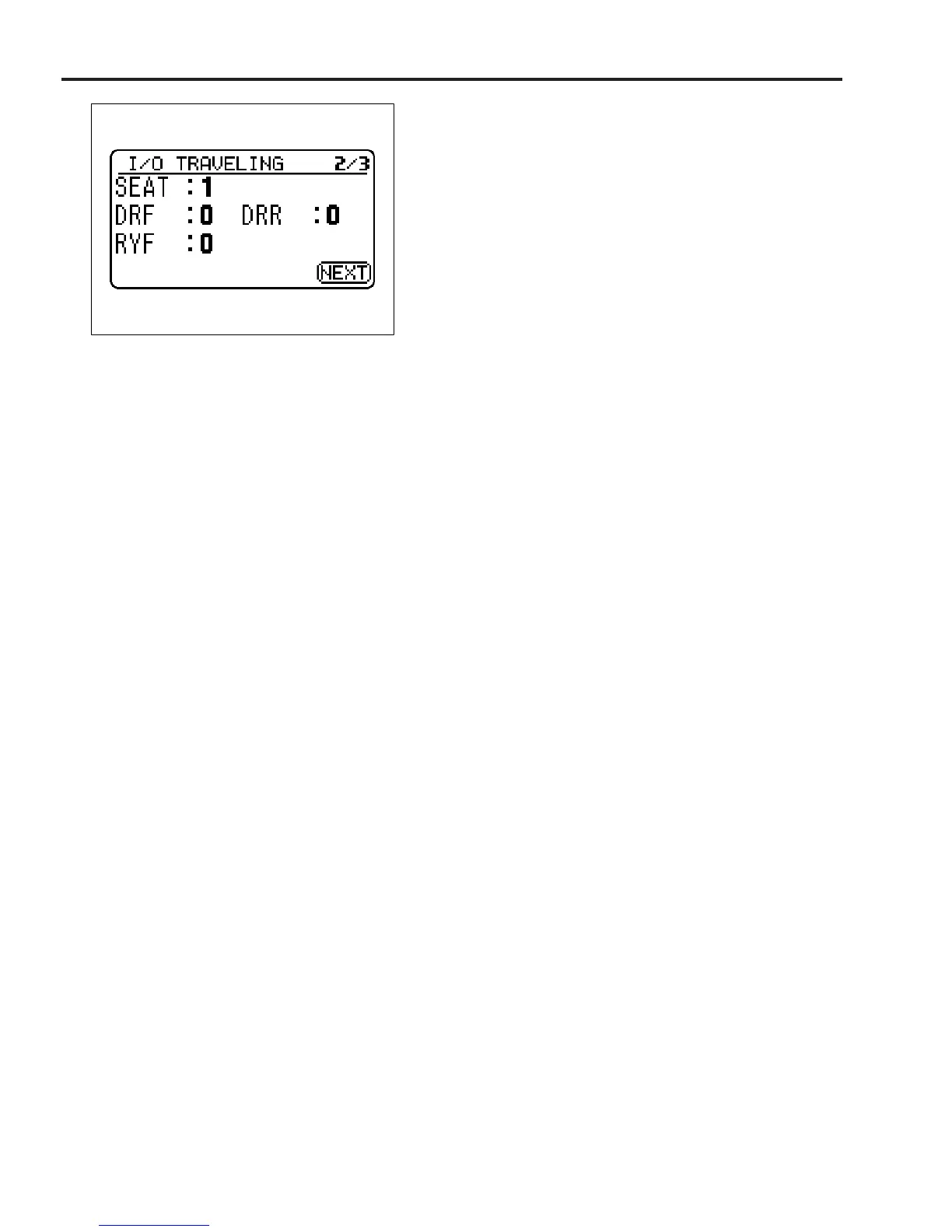

â–ª "I/O TRAVELING 2/3"
SEAT: Seat switch
Displays states of seat switch.
SEAT: 1 = ON when taking the seat
SEAT: 0 = OFF when leaving the seat
DRF: Forward direction switch
DRR: Reverse direction switch
Displays states of forward/reverse traveling switch.
Direction lever: Forward traveling position
Displayed code:
DRF: 1 (= ON)
DRR: 0 (= OFF)
Direction lever: Neutral position
Displayed code:
DRF: 0 (= OFF)
DRR: 0 (= OFF)
Direction lever: Reverse travel position
Displayed code:
DRF: 0 (= OFF)
DRR: 1 (= ON)
RYF: Forward/reverse traveling interrupt relay
Displays output signal to forward/reverse traveling interrupt
relay.
RYF: 1 = ON Relay energized (forward/reverse traveling
not possible) state
RYF: 0 = OFF Relay non-energized (forward/reverse trav-
eling possible) state
Switch (4): To "I/O TRAVELING 3/3" screen
