Toyota 8FDU20 User Manual

ldle adjusting
Fast idle cam
dle-up actuator rod
a /

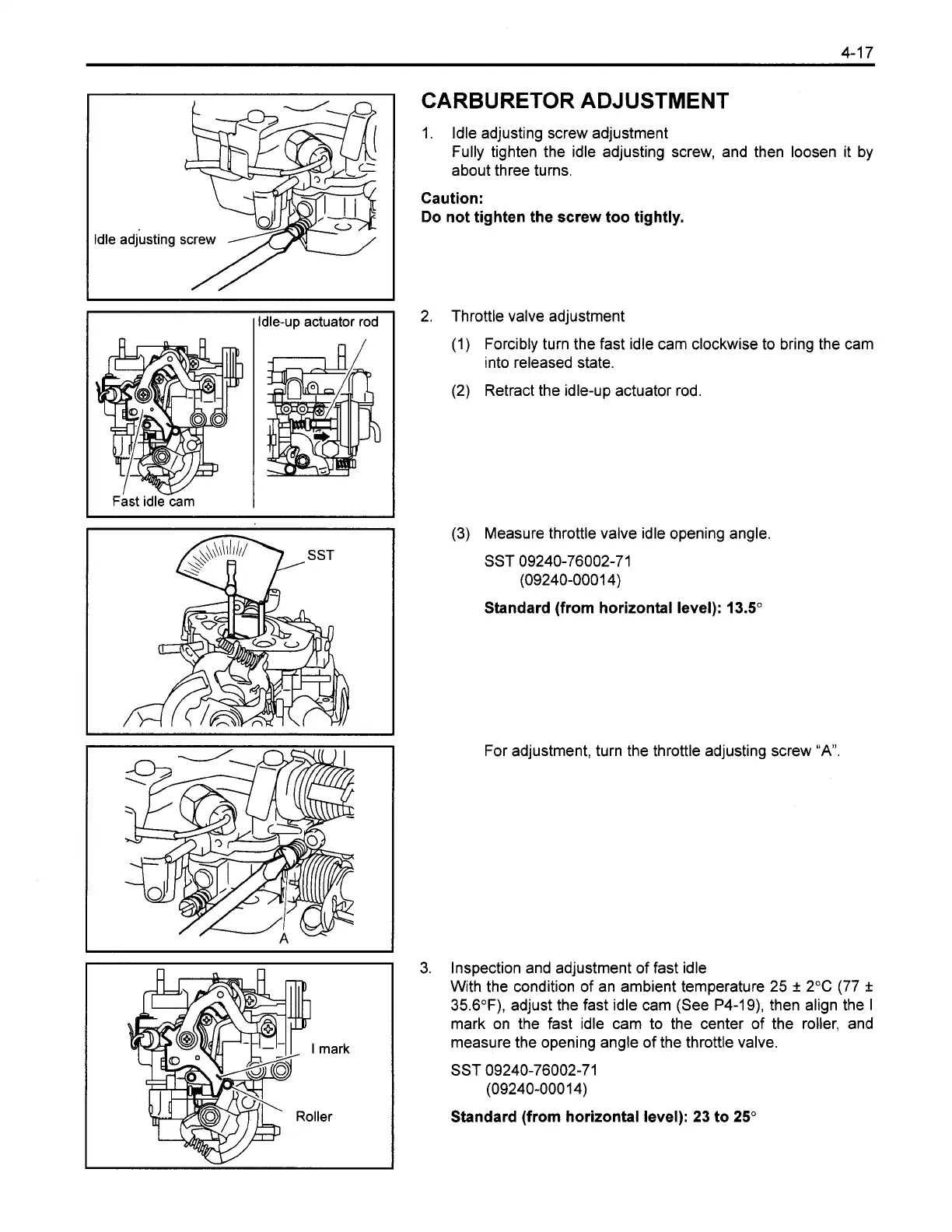

CARBURETOR ADJUSTMENT
1. ldle adjusting screw adjustment
Fully tighten the idle adjusting screw, and then loosen it by
about three turns.
Caution:
Do not tighten the screw too tightly.
2. Throttle valve adjustment
Forcibly turn the fast idle cam clockwise to bring the cam
into released state.
Retract the idle-up actuator rod.
Measure throttle valve idle opening angle.
SST 09240-76002-71
(09240-0001 4)
Standard (from horizontal level):
13.5"
For adjustment, turn the throttle adjusting screw
"A"
Inspection and adjustment of fast idle
With the condition of an ambient temperature 25
& 2°C (77 +
35.6"F), adjust the fast idle cam (See P4-19), then align the I
mark on the fast idle cam to the center of the roller, and
measure the opening angle of the throttle valve.
SST 09240-76002-71
(09240-000 14)
Standard (from horizontal level): 23 to
25"
4Y-E Repair
Section 1.1.4

Toyota 8FDU20 Specifications

General

Model	8FDU20
Category	Forklifts
Power Type	Diesel
Tire Type	Pneumatic
Load Capacity	2000 kg
Load Center	500 mm
Engine Model	Toyota 1DZ
Engine Power	36 kW
Overall Width	1150 mm
Overall Height	2070 mm
Travel Speed (loaded/unloaded)	18/19 km/h / 11/12 mph
Lift Speed (loaded/unloaded)	520/560 mm/s / 20/22 in/s
