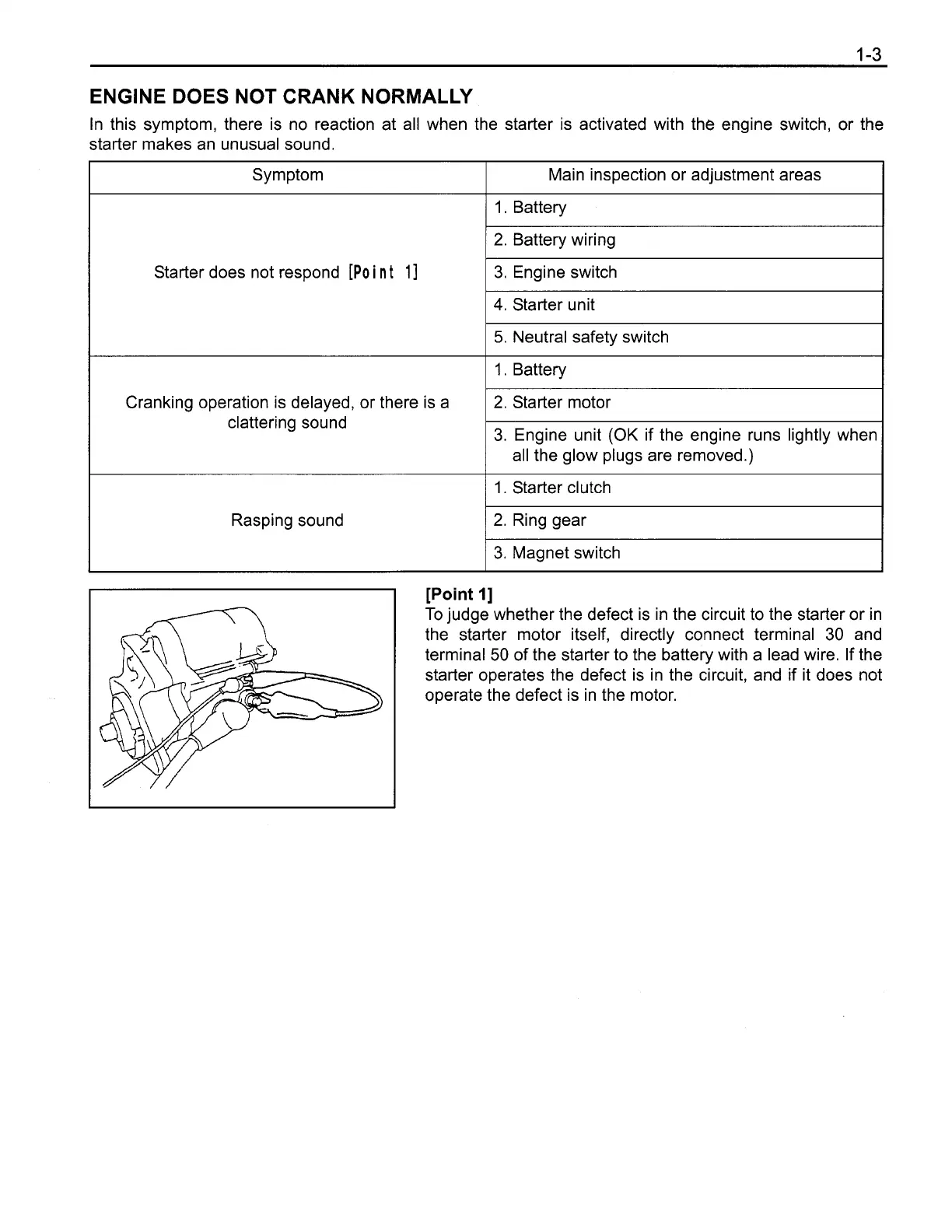

1-3
ENGINE DOES NOT CRANK NORMALLY
In this symptom, there is no reaction at all when the starter is activated with the engine switch, or the
starter makes an unusual sound.
Symptom Main inspection or adjustment areas
Starter does not respond
[Po i n t 11
1. Battery
2. Battery wiring
3. Engine switch
4. Starter unit
5. Neutral safety switch
1. Battery
Cranking operation is delayed, or there is a
clattering sound
1. Starter clutch
Rasping sound
2. Ring gear
3. Magnet switch
[Point I]
To judge whether the defect is in the circuit to the starter or in
the starter motor itself, directly connect terminal 30 and
terminal 50 of the starter to the battery with a lead wire. If the
starter operates the defect is in the circuit, and if it does not
operate the defect is in the motor.
1DZ-II Repair
Section 1.2.1

Toyota 8FDU20 Specifications

General

Model	8FDU20
Category	Forklifts
Power Type	Diesel
Tire Type	Pneumatic
Load Capacity	2000 kg
Load Center	500 mm
Engine Model	Toyota 1DZ
Engine Power	36 kW
Overall Width	1150 mm
Overall Height	2070 mm
Travel Speed (loaded/unloaded)	18/19 km/h / 11/12 mph
Lift Speed (loaded/unloaded)	520/560 mm/s / 20/22 in/s
