Toyota 8FDU20 User Manual

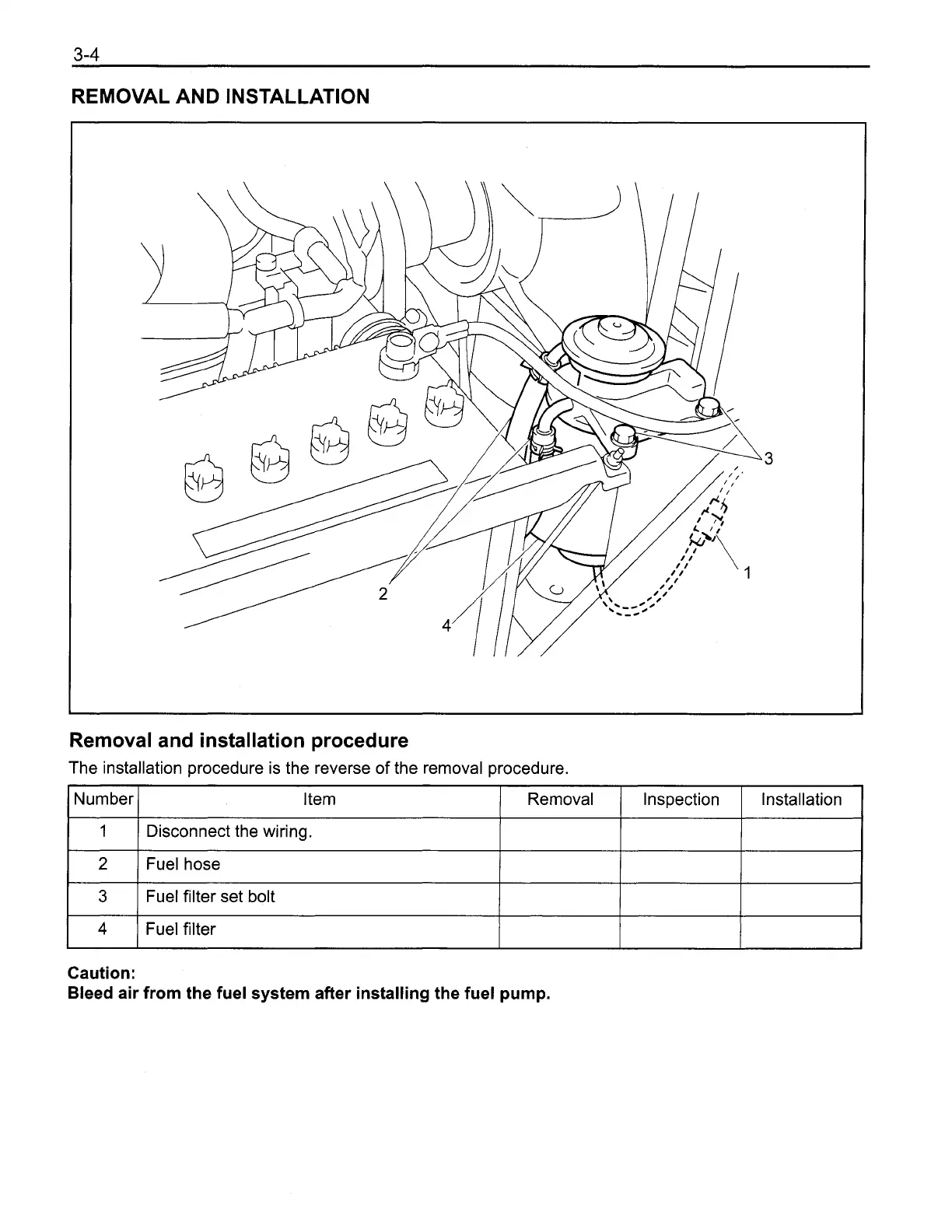

REMOVAL AND INSTALLATION
Removal and installation procedure
Caution:
Bleed air from the fuel system after installing the fuel pump.
The installation procedure is the reverse of the removal procedure.
Number
1
2
3
4
Item
Disconnect the wiring.
Fuel hose
Fuel filter set bolt
Fuel filter
Removal
Inspection Installation
1DZ-II Repair
Section 1.2.3

Toyota 8FDU20 Specifications

General

Model	8FDU20
Category	Forklifts
Power Type	Diesel
Tire Type	Pneumatic
Load Capacity	2000 kg
Load Center	500 mm
Engine Model	Toyota 1DZ
Engine Power	36 kW
Overall Width	1150 mm
Overall Height	2070 mm
Travel Speed (loaded/unloaded)	18/19 km/h / 11/12 mph
Lift Speed (loaded/unloaded)	520/560 mm/s / 20/22 in/s
