2-1 1

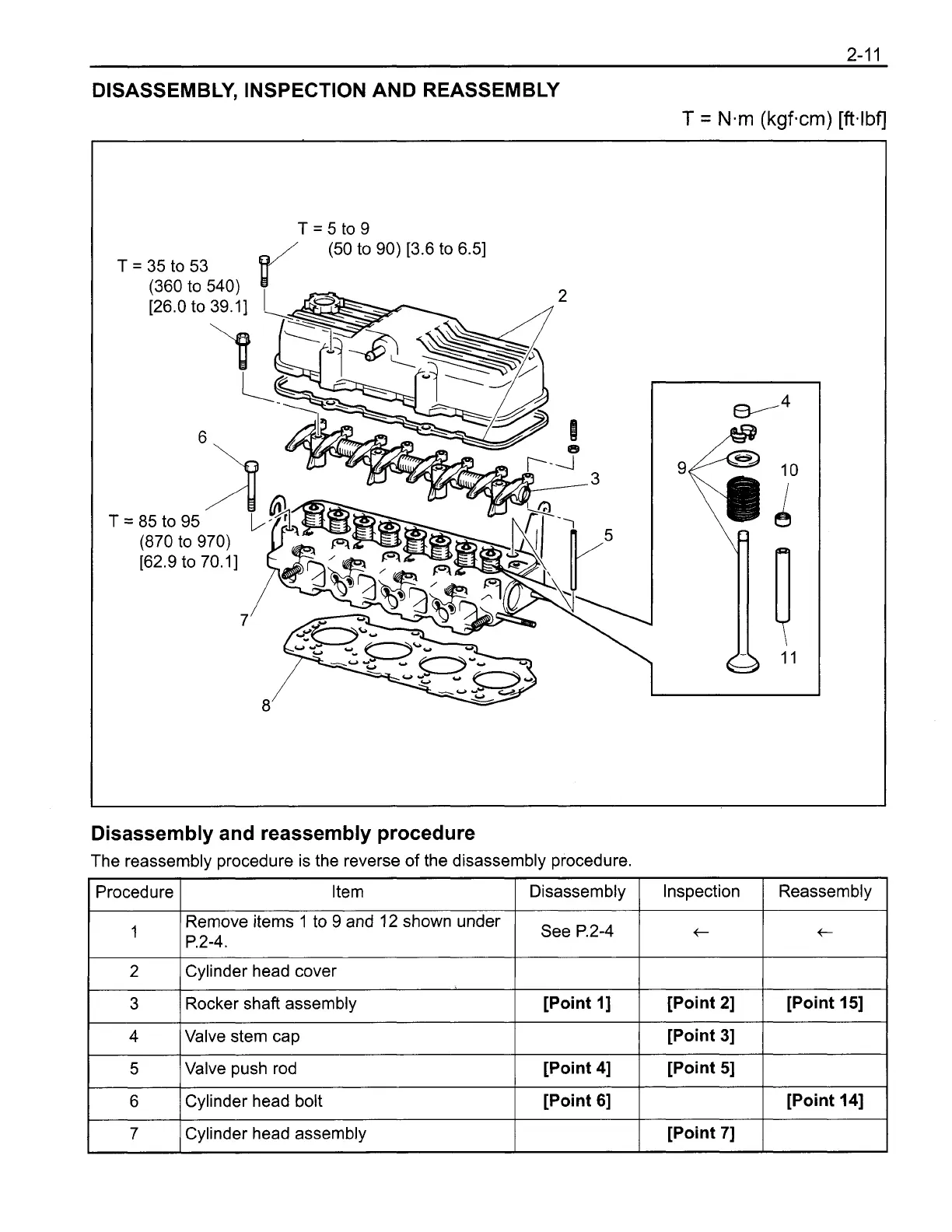

DISASSEMBLY, INSPECTION AND REASSEMBLY
Disassembly and reassembly procedure
The reassembly procedure is the reverse of the disassembly procedure.
Remove items 1 to
9 and 12 shown under / See P.2-4 1
Ip.2-4. t
1 7 1 Cylinder head assembly
I
I
[Point 71 1
I
Inspection
Disassembly
Procedure
2
3
4
5
6
Reassembly
Item
Cylinder head cover
Rocker shaft assembly
Valve stem cap
Valve push rod
Cylinder head bolt
[Point I]
[Point 41
[Point 61
[Point 21
[Point 31
[Point 51
[Point 151
[Point 141
1DZ-II Repair
Section 1.2.2

Toyota 8FDU20 Specifications

General

Model	8FDU20
Category	Forklifts
Power Type	Diesel
Tire Type	Pneumatic
Load Capacity	2000 kg
Load Center	500 mm
Engine Model	Toyota 1DZ
Engine Power	36 kW
Overall Width	1150 mm
Overall Height	2070 mm
Travel Speed (loaded/unloaded)	18/19 km/h / 11/12 mph
Lift Speed (loaded/unloaded)	520/560 mm/s / 20/22 in/s
