7-957 DISPLAY

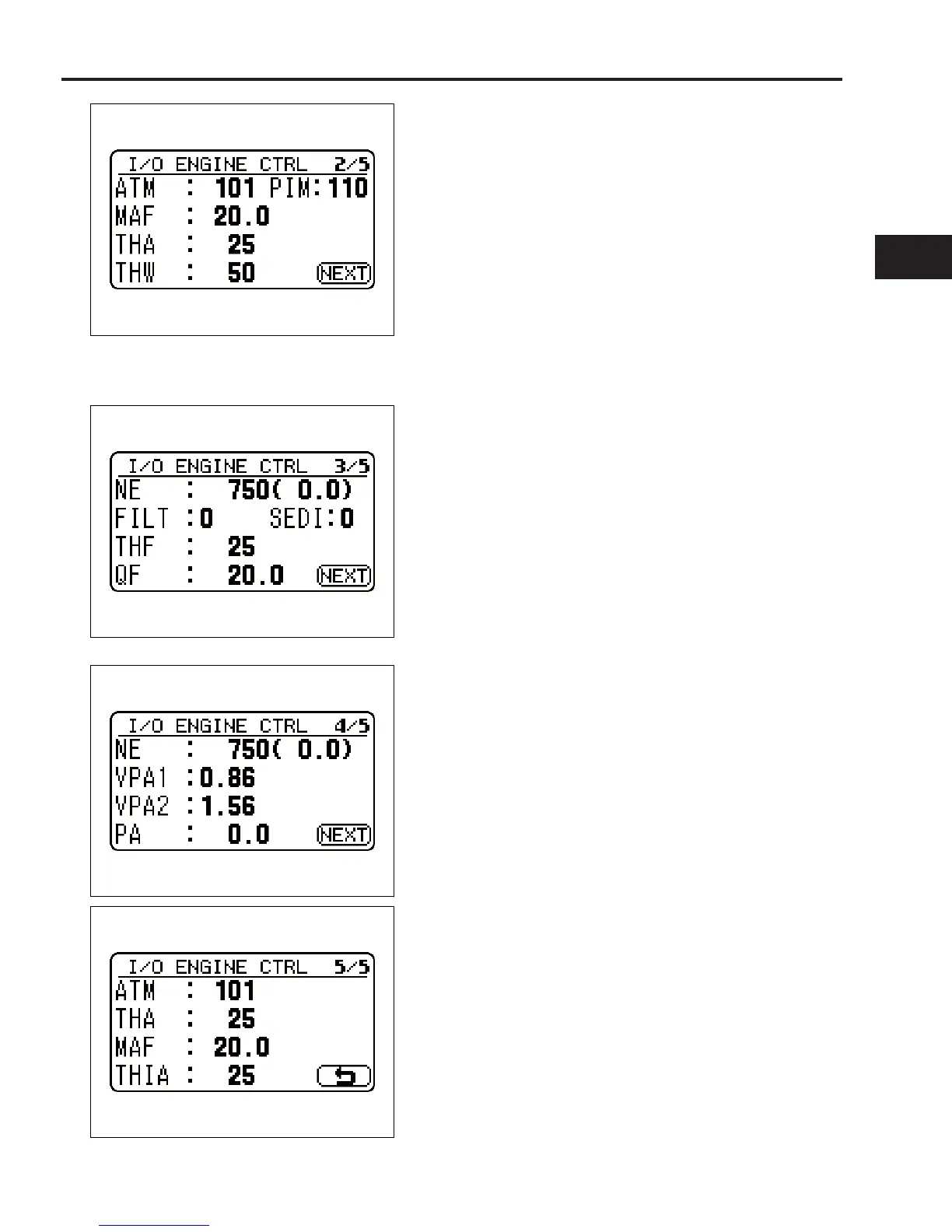

â–ª "I/O ENGINE CTRL 2/5"
ATM: Atmospheric pressure (kPa)
Display atmospheric pressure.
PIM: Intake manifold pressure past turbocharger (kPa )
Displays the engine intake manifold pressure after being
supplied by the turbocharger.
Standard: Within ATM + 155(kPa)
MAF: Intake air mass
Display Intake air mass.
THA: Intake air temperature (°C)
Displays intake air temperature.
THW: Coolant temperature (°C)
Displays coolant temperature.
Switch (4): To "I/O ENGINE CTRL 3/5" screen
â–ª "I/O ENGINE CTRL 3/5"
NE: Engine speed(rpm), (Traveling speed(km/h or mph))
Refer to "I/O ENGINE CTRL 1/5"
FILT: Fuel filter clogging
Display fuel filter clogging.
SEDI: Water sedimenter level
Display water sedimenter level.
THF: Fuel Temperature (°C)
Display fuel Temperature.
QF: Fuel injection quantity
Display fuel injection quantity.
Switch (4): To "I/O ENGINE CTRL 4/5" screen
â–ª "I/O ENGINE CTRL 4/5"
NE: Engine speed(rpm), (Traveling speed(km/h or mph))
Refer to "I/O ENGINE CTRL 1/5".
VPA1: Accelerator sensor (1) voltage (V)
Display accelerator sensor (1) voltage.
VPA2: Accelerator sensor (2) voltage (V)
Display accelerator sensor (2) voltage.
PA: Fuel Temperature (%)
Refer to "I/O ENGINE CTRL 1/5".
Switch (4): To "I/O ENGINE CTRL 5/5" screen
â–ª "I/O ENGINE CTRL 5/5"
ATM: Atmospheric pressure (kPa)
Refer to "I/O ENGINE CTRL 2/5".
THA: Intake air temperature before turbocharger (°C)
Refer to "I/O ENGINE CTRL 2/5".
MAF: Intake air mass flow
Refer to "I/O ENGINE CTRL 2/5".
THIA: Intake air temperature past turbocharger (°C)
Displays the engine intake air temperature after being sup-
plied by the turbocharger.
Switch (4): To "ANALYZER MENU" screen
