Toyota 8FGU32 User Manual

I

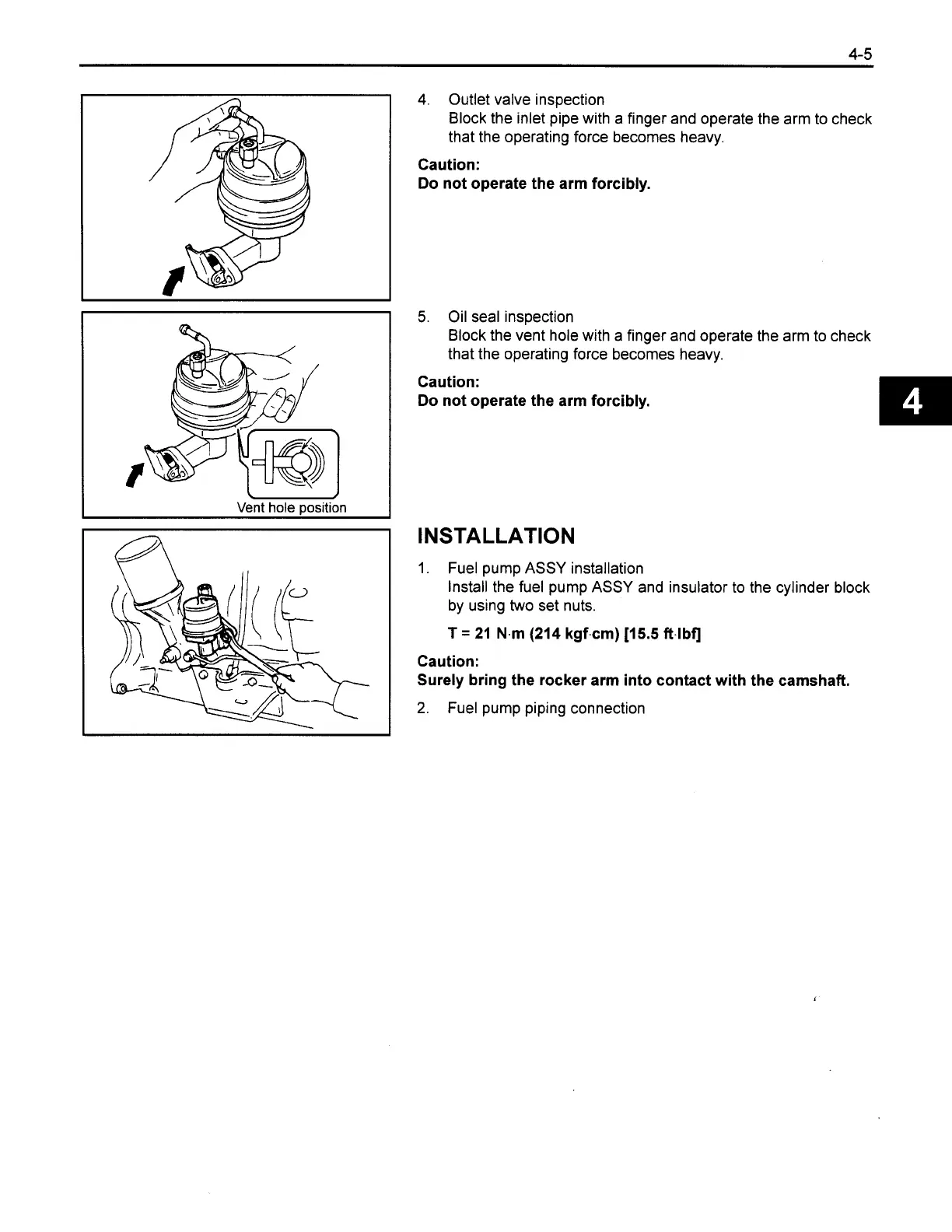

Vent hole position
4. Outlet valve inspection
Block the inlet pipe with a finger and operate the arm to check
that the operating force becomes heavy.
Caution:
Do not operate the arm forcibly.
5. Oil seal inspection
Block the vent hole with a finger and operate the arm to check
that the operating force becomes heavy.
Caution:
Do not operate the arm forcibly.
INSTALLATION
1. Fuel pump ASSY installation
Install the fuel pump
ASSY and insulator to the cylinder block
by using two set nuts.
T = 21 N.m (214 kgfcm) [15.5 ftdbfl
Caution:
Surely bring the rocker arm into contact with the camshaft.
2. Fuel pump piping connection
4Y-E Repair
Section 1.1.4

Toyota 8FGU32 Specifications

General

Model	8FGU32
Tire Type	Pneumatic
Load Capacity	3200 kg
Fuel Type	Gasoline/LPG
Overall Width	1270 mm (50 in)
Travel Speed (Loaded/Unloaded)	11.8 mph
Lift Speed (Loaded/Unloaded)	0.48 / 0.52 m/s (94.5 / 102.4 fpm)
