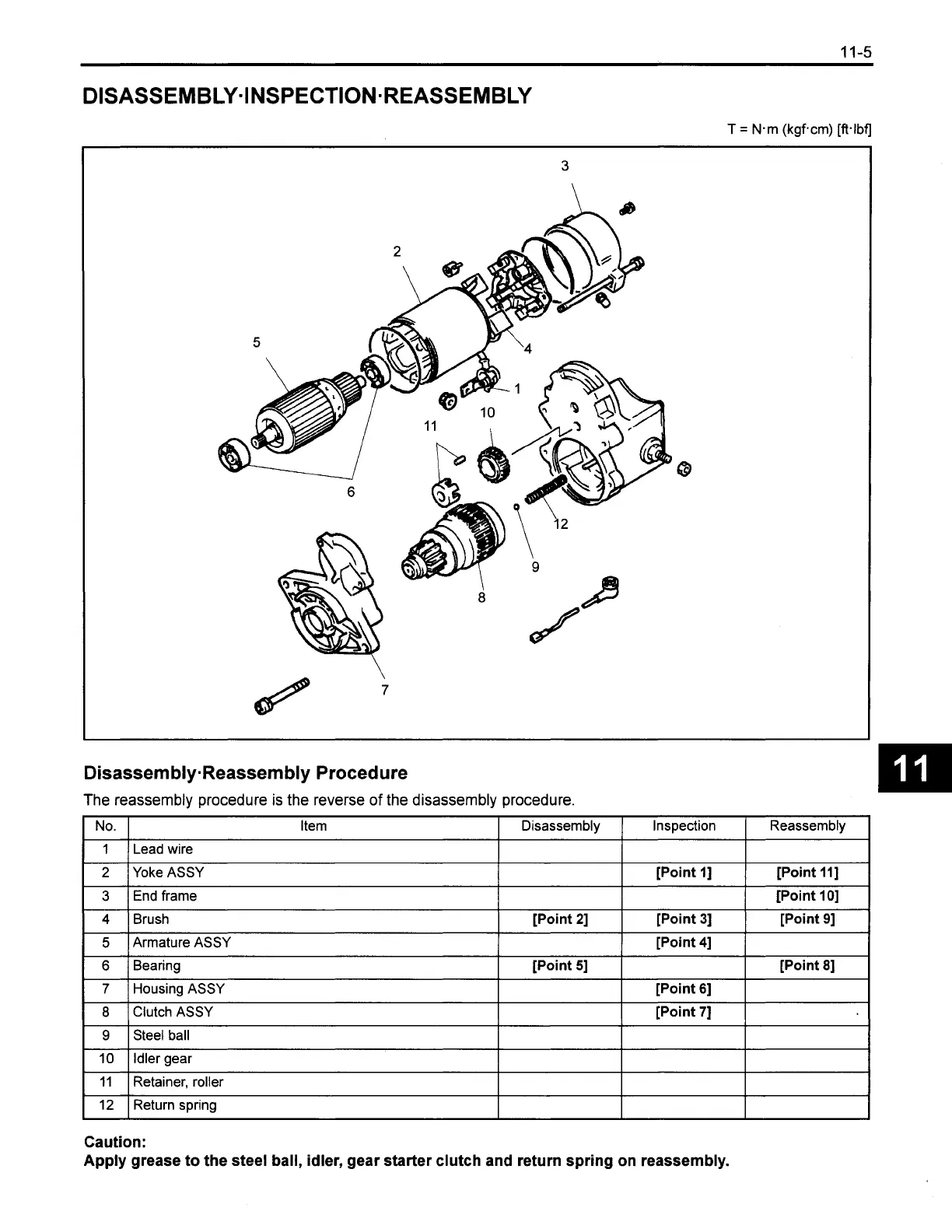

DISASSEMBLY-INSPECTION-REASSEMBLY
T = N.m (kgf cm) [ft.lbfl
Disassem bly-Reassembly Procedure
The reassembly procedure is the reverse of the disassembly procedure.
1 2 /Yoke ASSY I I [Point I] I [Point 111
No.
1
Item
Lead wire
3
4
5
6
7
8
I 11 I Retainer, roller I I I
Disassembly
End frame
Brush
Armature ASSY
Bearing
9
10
1 12 1 Return spring I I I
Housing ASSY
Clutch ASSY
Steel ball
Idler gear
Caution:
Apply grease to the steel ball, idler, gear starter clutch and return spring on reassembly.
Inspection
[Point 21
[Point 51
[Point 61
[Point 71
Reassembly
[Point 31
[Point 41
[Point 101
[Point 91
[Point 81
4Y-E Repair
Section 1.1.11

Toyota 8FGU32 Specifications

General

Model	8FGU32
Tire Type	Pneumatic
Load Capacity	3200 kg
Fuel Type	Gasoline/LPG
Overall Width	1270 mm (50 in)
Travel Speed (Loaded/Unloaded)	11.8 mph
Lift Speed (Loaded/Unloaded)	0.48 / 0.52 m/s (94.5 / 102.4 fpm)
