REMOVAL·INSTALLATION
Note:
The muffler can be removed by either of the two methods shown below.
(1)Remove the muffler after removing the counterweight.
(2)Remove the muffler after removing the radiator W/ counterweight.
Here, method (1) is explained.

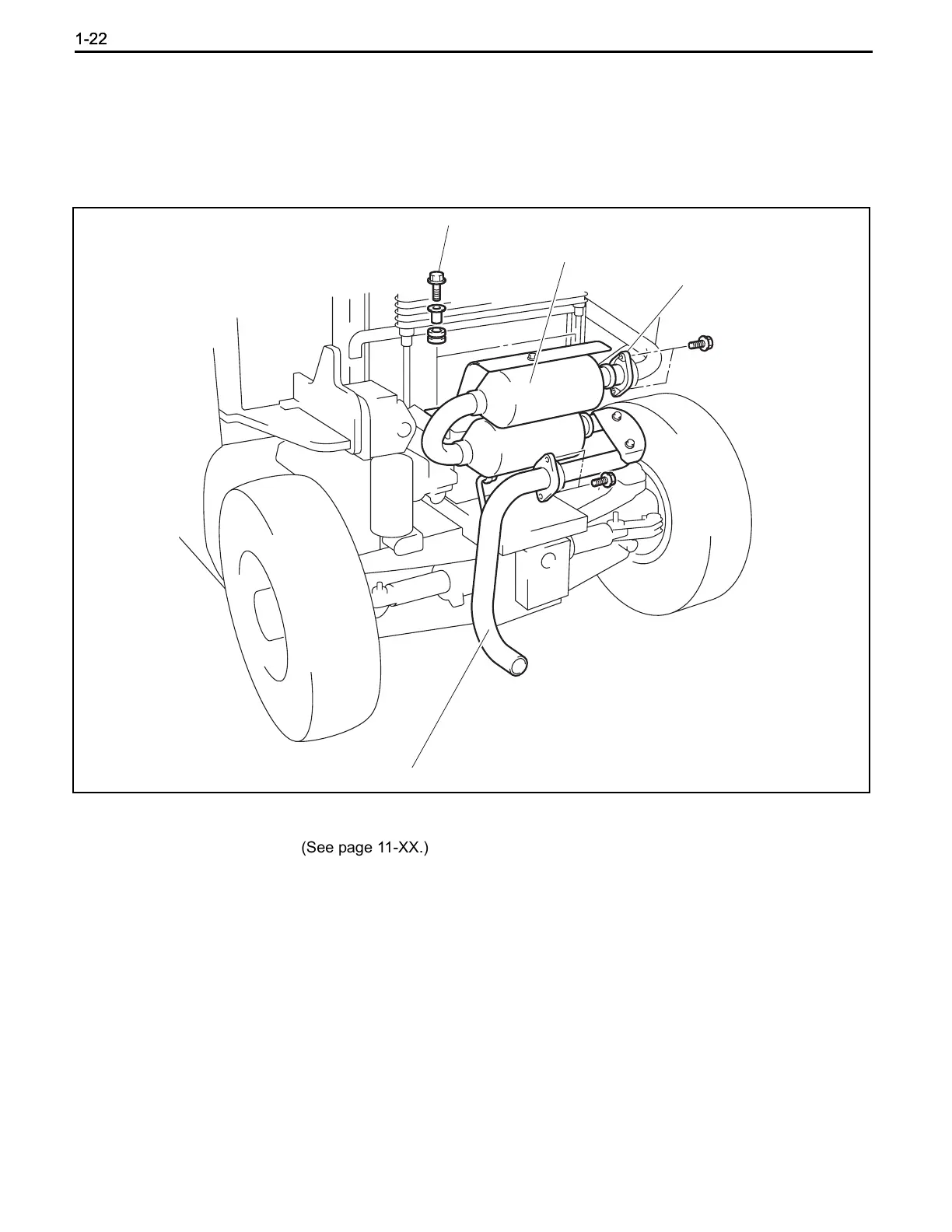

Removal Procedure
1 Remove the counterweight. (See page 11-XX.)
2 Separate the union between the exhaust pipe and muffler.
3 Remove the exhaust pipe fixation bolts.
4 Remove the muffler.
5 Disconnect the tail pipe from the muffler.
Installation Procedure
The installation procedure is the reverse of the removal procedure.
Note:
Use a new gasket.
3
4
2
5
Engine
Section 1
1-22a
8FG(D)U15-32
8FGCU20-32
