I
Delivery pipe

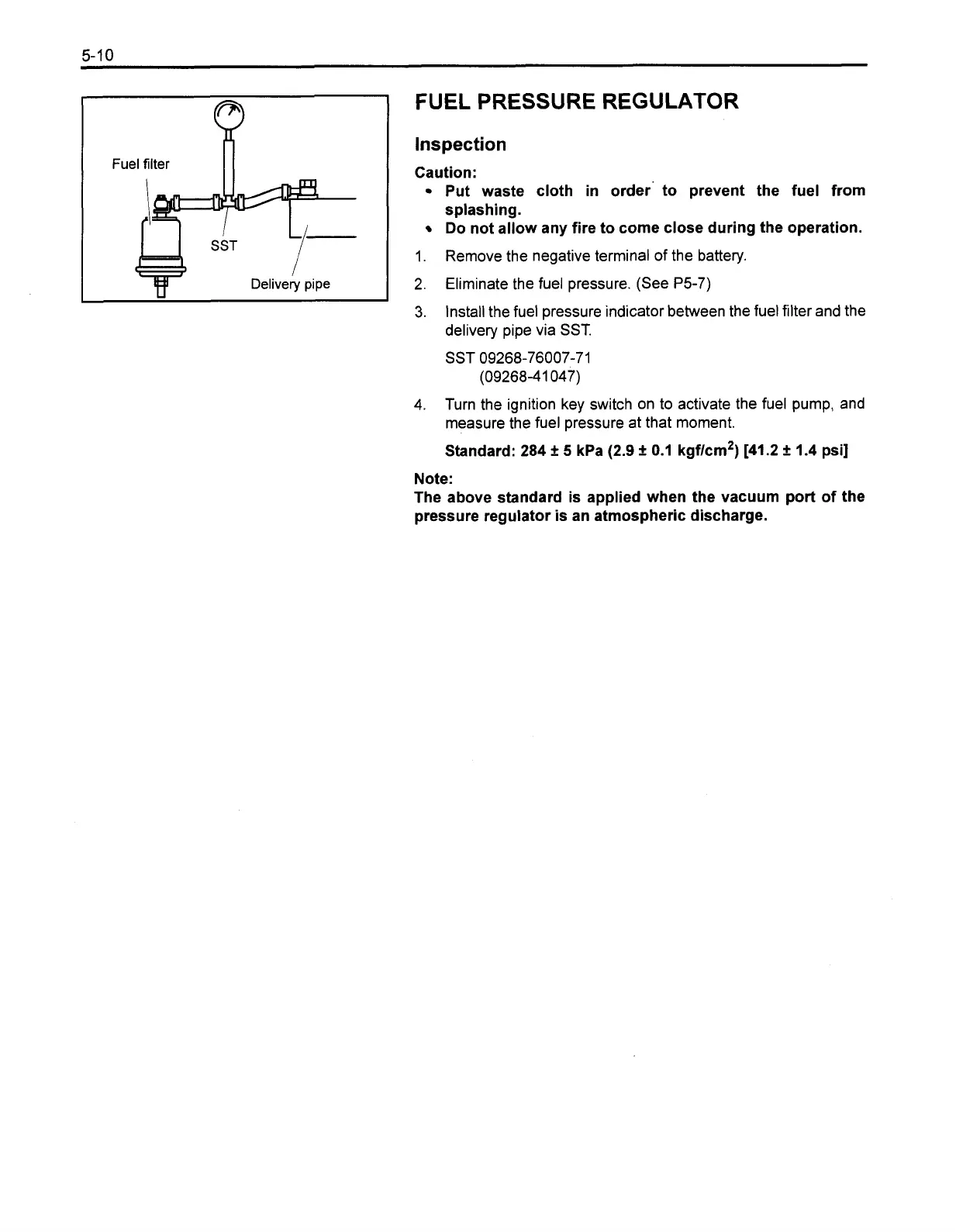

FUEL PRESSURE REGULATOR
Inspection
Caution:
Put waste cloth in order' to prevent the fuel from
splashing.
Do not allow any fire to come close during the operation.
1.
Remove the negative terminal of the battery.
2.
Eliminate the fuel pressure. (See P5-7)
3.
Install the fuel pressure indicator between the fuel filter and the
delivery pipe via
SST.
SST 09268-76007-71
(09268-4 1 047)
4.
Turn the ignition key switch on to activate the fuel pump, and
measure the fuel pressure at that moment.
Standard: 284 5 kPa (2.9 f 0.1 kgflcm2) [41.2 & 1.4 psi]
Note:
The above standard is applied when the vacuum port of the
pressure regulator is an atmospheric discharge.
4Y-E Repair
Section 1.1.5

Toyota 8FGU32 Specifications

General

Model	8FGU32
Tire Type	Pneumatic
Load Capacity	3200 kg
Fuel Type	Gasoline/LPG
Overall Width	1270 mm (50 in)
Travel Speed (Loaded/Unloaded)	11.8 mph
Lift Speed (Loaded/Unloaded)	0.48 / 0.52 m/s (94.5 / 102.4 fpm)
