Toyota 8FGU32 User Manual

Intake temperature
%
, < Grommet
Air cleaner
// inlet hose

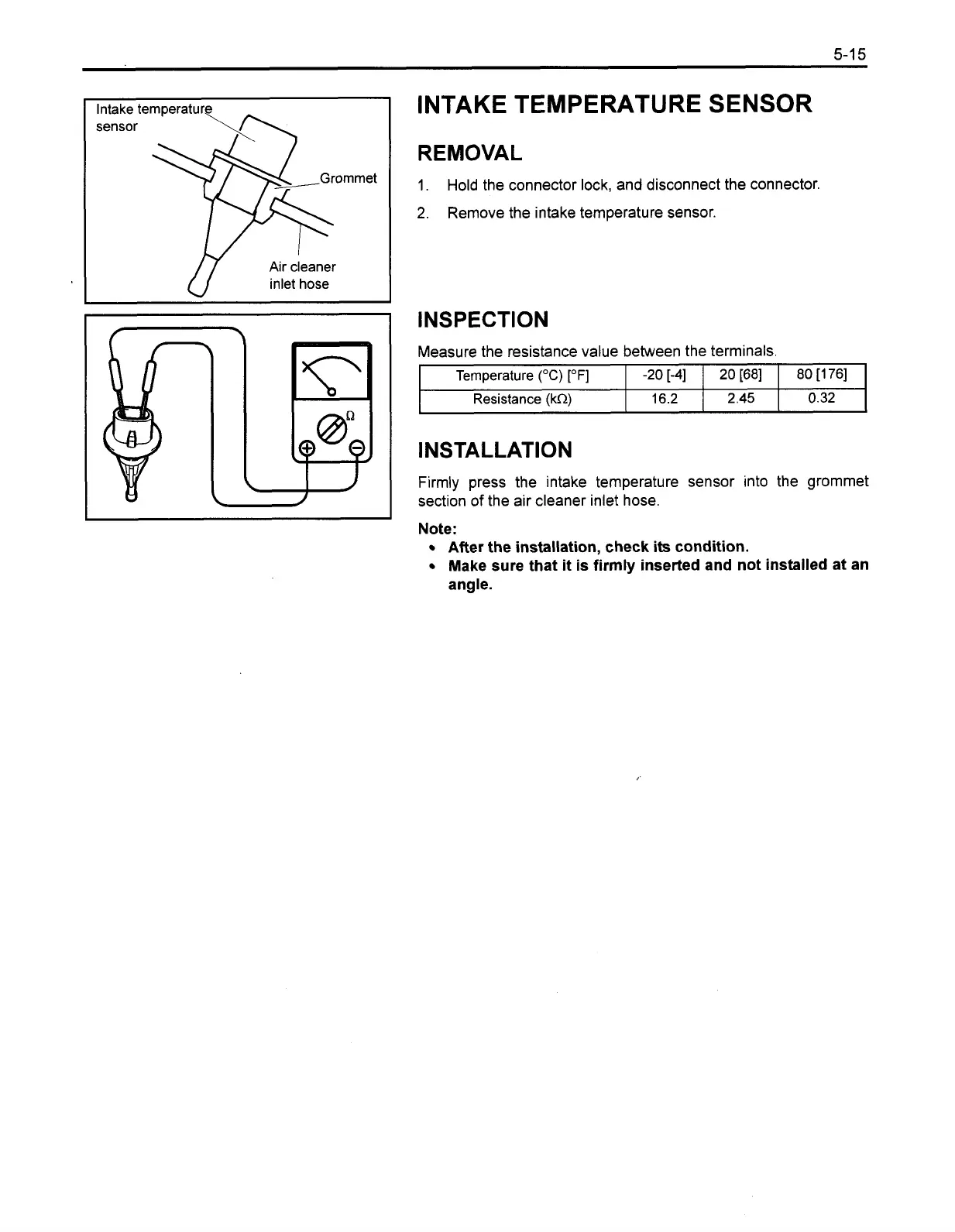

INTAKE TEMPERATURE SENSOR
REMOVAL
1. Hold the connector lock, and disconnect the connector.
2.
Remove the intake temperature sensor.
INSPECTION
INSTALLATION
Measure the resistance value between the terminals.
Firmly press the intake temperature sensor into the grommet
section of the air cleaner inlet hose.
Note:
After the installation, check its condition.
Make sure that it is firmly inserted and not installed at an
angle.
80 [I 761
0.32
Temperature (OC) [OF]
Resistance (kQ)
-20 [-41
16.2
20
[68]
2.45
4Y-E Repair
Section 1.1.5

Toyota 8FGU32 Specifications

General

Model	8FGU32
Tire Type	Pneumatic
Load Capacity	3200 kg
Fuel Type	Gasoline/LPG
Overall Width	1270 mm (50 in)
Travel Speed (Loaded/Unloaded)	11.8 mph
Lift Speed (Loaded/Unloaded)	0.48 / 0.52 m/s (94.5 / 102.4 fpm)
