TL-WA501G 54M Wireless Access Point User Guide
Key field and select Enabled in the Status pull-down list. Click the Save and the
Return button.

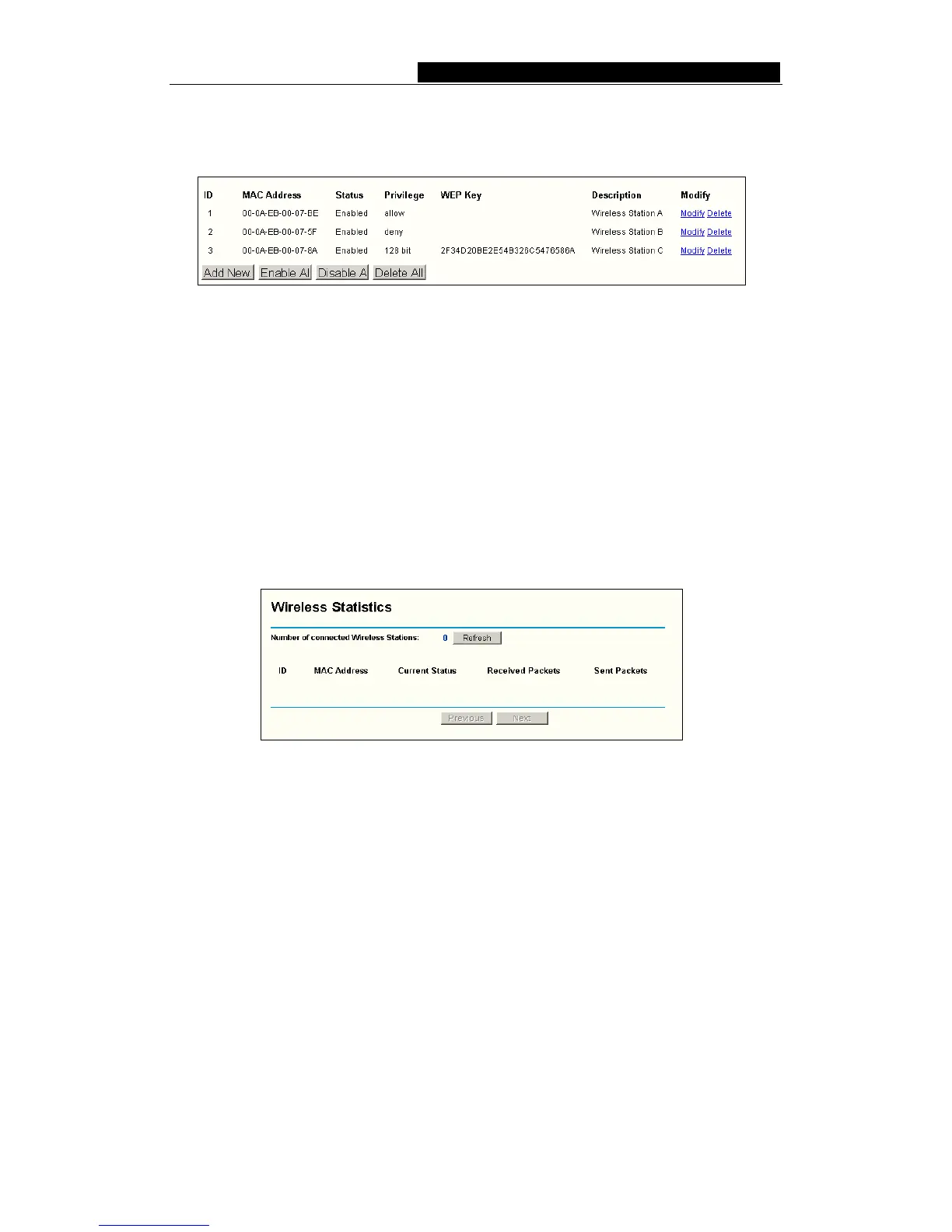

The filtering rules that configured should be similar to the following list:
Figure 5-15: The filtering list
Note:
a) If you select the radio button Allow the stations not specified by any enabled
entries in the list to access for Filtering Rules, the wireless station B will still
not be able to access the AP, however, other wireless stations that are not in
the list will be able to access the AP.
b) If you enable the function and select the Deny the stations not specified by
any enabled entries in the list to access for Filtering Rules, and there are
not any enable entries in the list, thus, no wireless stations can access the AP.
5.4.5 Wireless Statistics
This page shows MAC Address, Current Status, Received Packets and Sent Packets
for each connected wireless station
.
Figure 5-16: The AP attached wireless stations
¾ MAC Address - The connected wireless station's MAC address
¾ Current Status - The connected wireless station's running status, one of
STA-AUTH / STA-ASSOC / STA-JOINED / WPA / WPA-PSK / WPA2 / WPA2-PSK
/ AP-UP / AP-DOWN / Disconnected
¾ Received Packets - packets received by the station
¾ Sent Packets - packets sent by the station
You cannot change any of the values on this page. To update this page and to show the
current connected wireless stations, click on the Refresh button.
If the numbers of connected wireless stations go beyond one page, click the Next
button to go to the next page and click the Previous button to return the previous page.
Note: This page will be refreshed automatically every 5 seconds.
- 23 -
