TP-Link AP200 User Manual

6
Chapter 1
1. 3. 2. The Back Panel

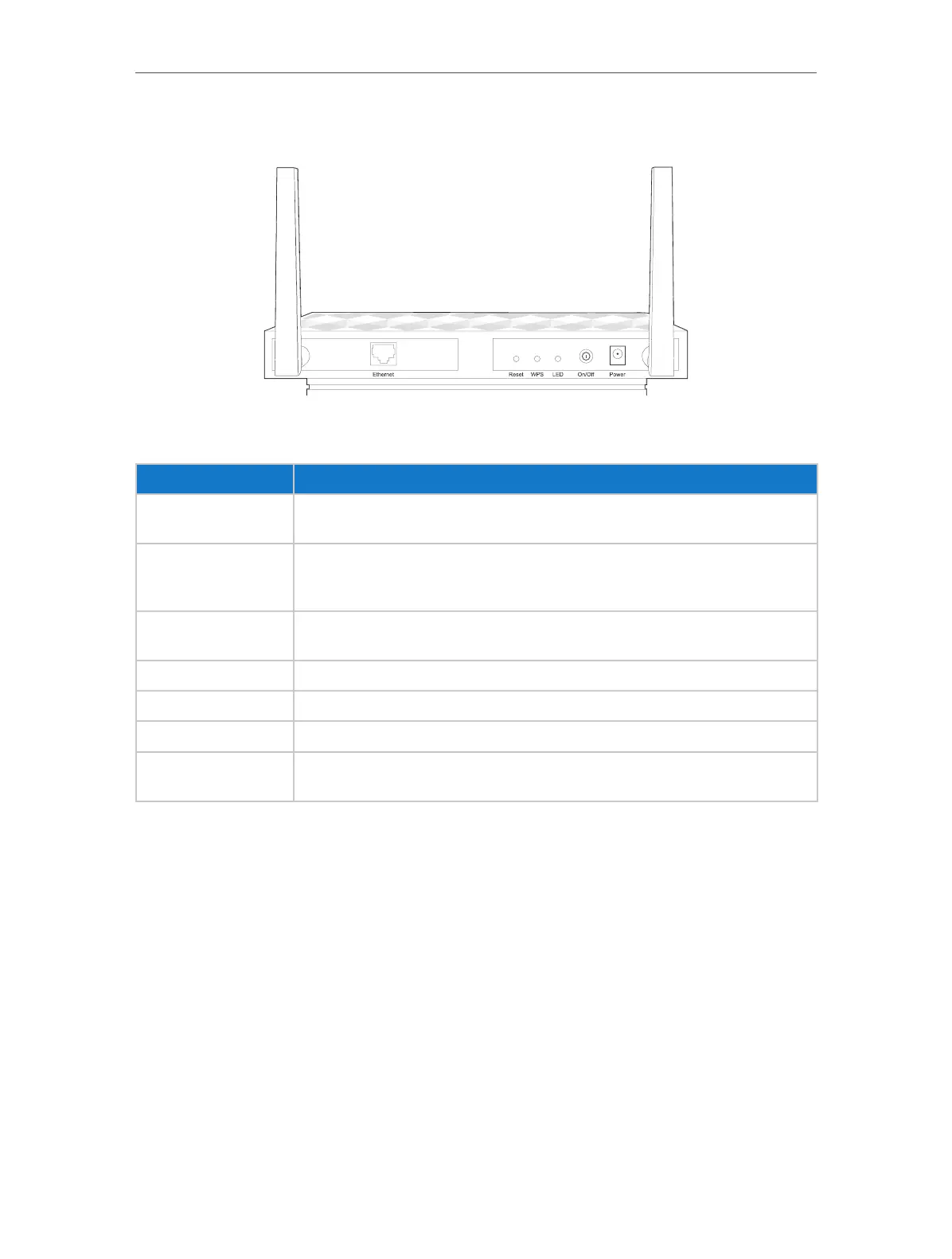

The AP device’s back panel shows the connection ports, buttons and antennas. Refer to
the following for detailed instructions (view from left to right).
Item Description
Ethernet
One LAN 10/100/1000Mbps Auto-Negotiation RJ45 Port connects to a network device
and supports passive PoE.
Reset
The switch for the reset function. With the device powered on, use a pin to press and
hold the Reset button for five seconds until the Power LED starts blinking, then release
the button.
WPS
Press and hold this button for two seconds to enable the WPS function. When the WPS
LED blinks slowly, the device is trying to connect or to be connected.
LED Press this button to turn on or turn off the LEDs.
On/Off The switch for the power. Press it to power on or off the AP device.
Power
The power port connects to the provided power adapter.
Antennas
Used for wireless operation and data transmit. Upright them for the best Wi-Fi
performance.
1. 4. Position Your AP Device
• Place your AP device in a well-ventilated place far from any heater or heating vent
• Avoid direct irradiation of any strong light (such as sunlight)
• Keep at least 2 inches (5 cm) of clear space around your AP device
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Operating Humidity: 10%~90%RH, Non-condensing
Generally, your AP device is placed on a horizontal surface. It also can be mounted on
the wall as shown below.

TP-Link AP200 Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Receiver sensitivity	2.4GHz: 11g 54M: -76dBm@10% PER 11n HT20 MCS7: -73.5dBm@10% PER 11n HT40 MCS7: -71dBm@10% PER 5GHz: 11a 6Mbps:-93dBm@10% PER 11a 54Mbps: -75dBm@10% PER 11ac HT20 MCS8: -67dBm@10% PER 11ac HT40 MCS9: -62.5dBm@10% PER 11ac HT80 MCS9: -59.5dBm@10% PER
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	750 Mbit/s
Maximum data transfer rate (5 GHz)	433 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Output current	1 A
Output voltage	12 V
Antenna type	External
Antenna features	Detachable antenna
Antennas quantity	2
Internal	No
Placement	Table
Certification	CE, FCC, RoHS
Product color	Black
Cables included	LAN (RJ-45)
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK, WPS
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX, Linux
Operating altitude	5 - 90 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	162 mm
Width	242 mm
Height	44 mm
