TP-Link AP500 User Manual

15
Chapter 4
2. Press the WPS button of the device you want to connect to in 2 minutes.
Note:
The order to press the WPS button of the AP device and the device to be connected can be in reverse.
3. If the AP device’s WPS LED is solid on, it shows the WPS connection is successful. If
the AP device’s WPS LED blinks quickly, it shows the WPS connection is failed. Please
perform the steps again.
Note:
1. If the WPS connection is successful, after about 5 minutes, the WPS LED will turn off.
2. If the connection still fails, contact the technical support.
PIN Method
Other devices can connect to this AP device by WPS with the AP device’s PIN and the AP
device can connect to other devices by entering their PINs. The PIN method can only be
applied in Access Point and Multi-SSID modes.
Follow the steps below to use WPS by PIN method.
1. Visit http://tplinkap.net, then log in with the username and password you set for the
AP device.

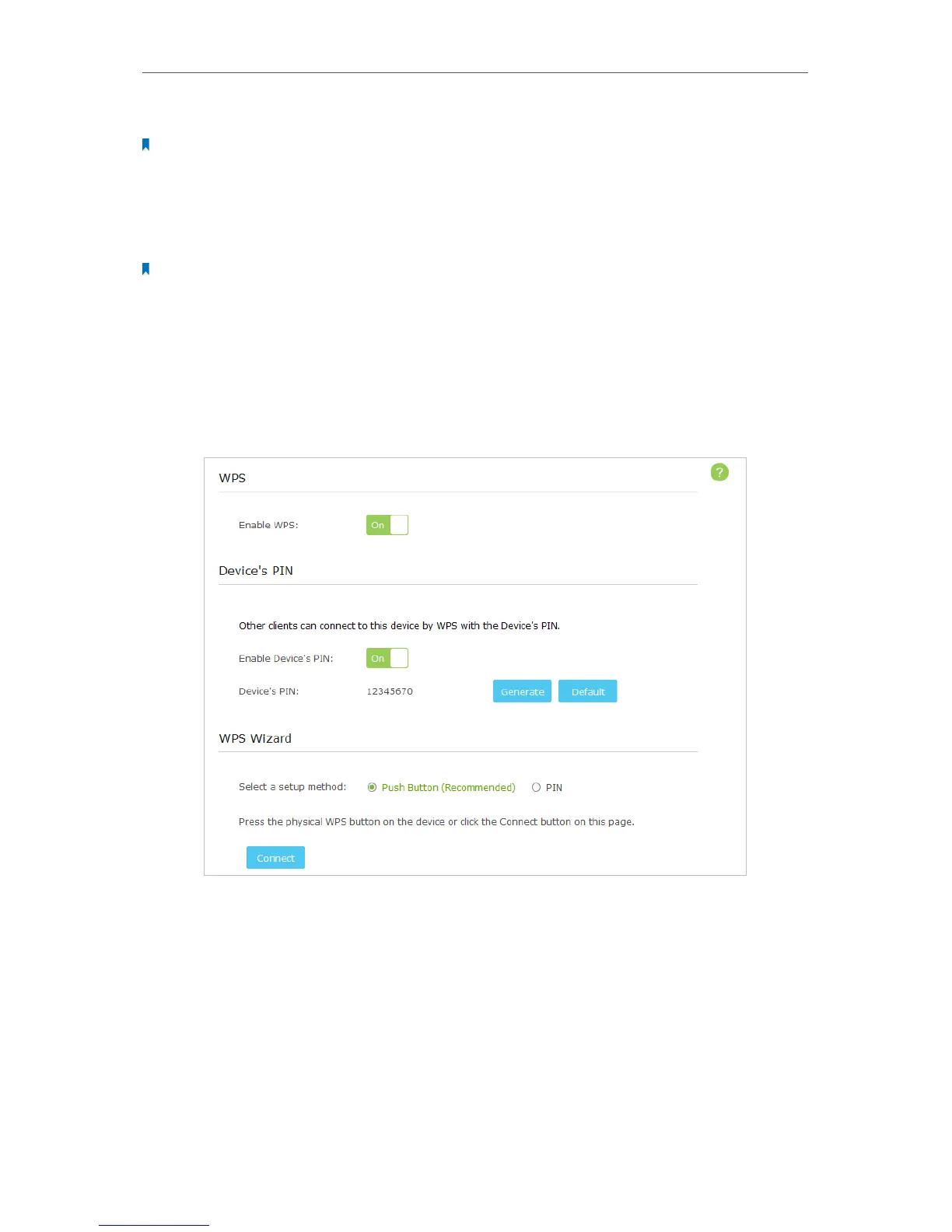

2. Go to Advanced > Wireless > WPS. There are also two ways to use WPS PIN method:
using the AP device’s PIN and using the wireless client’s PIN.

TP-Link AP500 Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	11g 54M: -76dBm@10% PER 11n HT20 MCS7: -73dBm@10% PER 11n HT40 MCS7: -71dBm@10% PER 11a 6Mbps:-94dBm@10% PER 11a 54Mbps: -75dBm@10% PER 11ac HT20 MCS8: -66dBm@10% PER 11ac HT40 MCS9: -62dBm@10% PER 11ac HT80 MCS9: -59dBm@10% PER
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1300 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Internal	No
Placement	Table
Certification	CE, FCC, RoHS
Product color	Black
LED indicators	Power, WPS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Processor frequency	1000 MHz
Compatible operating systems	Microsoft Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 8.1, Mac OS, NetWare, UNIX, Linux
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Detachable antenna
Antennas quantity	3
Package type	Box

Weight and Dimensions

Depth	162 mm
Width	242 mm
Height	44 mm
