TP-Link AP500 User Manual

38
Chapter 6
3. Select the corresponding checkbox (2.4G RX, 2.4G TX, 5G RX and 5G TX) to view
individual or multiple data rates.
6. 7. Statistics
The Statistics page displays the network traffic of wireless stations sent and received,
and allows you to monitor the volume of wireless traffic statistics.
1. Visit http://tplinkap.net, and log in with the username and password you set for the
AP device.
2. Go to Advanced > Wireless > Statistics.

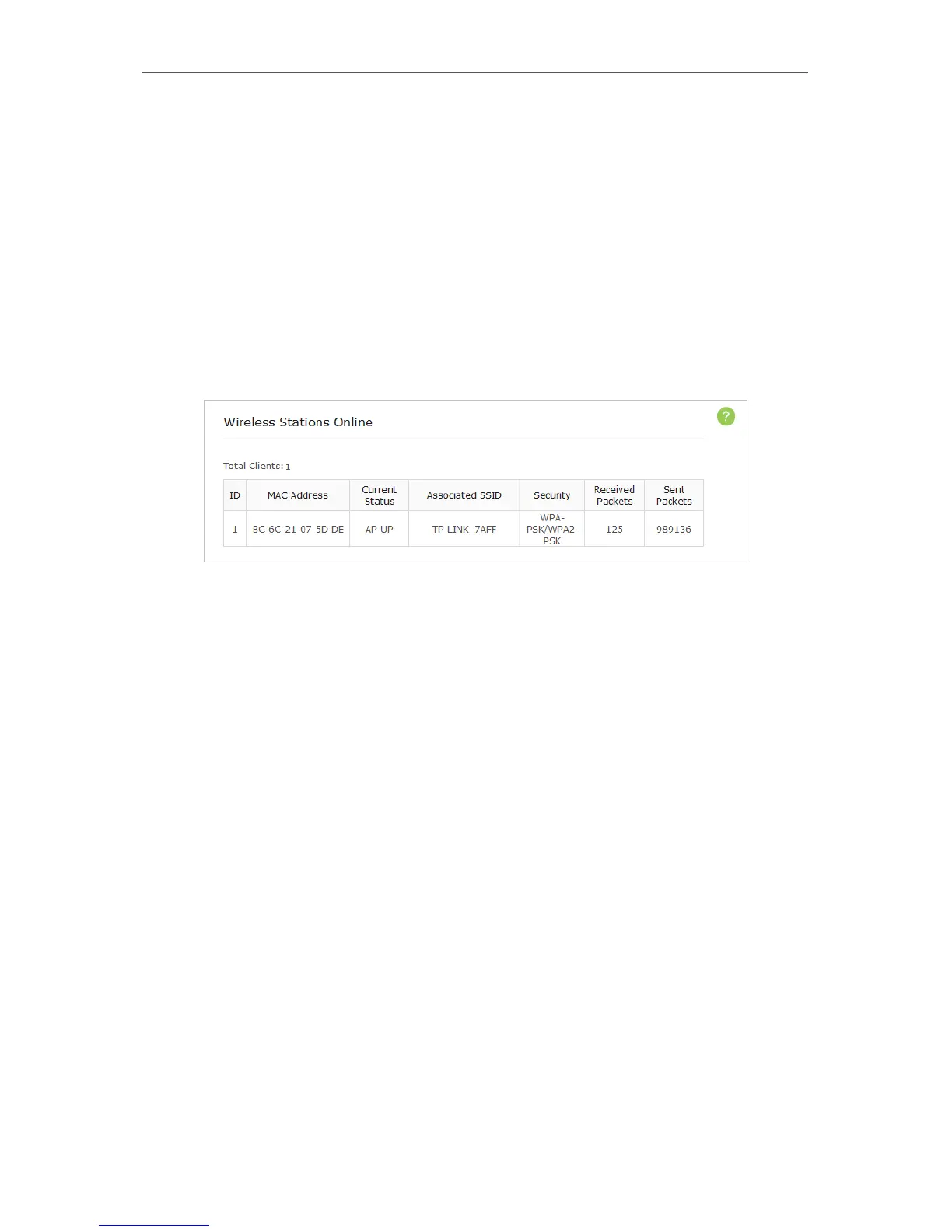

3. Monitor the traffic statistics in Wireless Stations Online section.
6. 8. SNMP Management
SNMP (Simple Network Management Protocol) is a popular network monitoring and
management protocol.
1. Visit http://tplinkap.net, and log in with the username and password you set for the
AP device.
2. Go to Advanced > System Tools > SNMP and complete the settings according to your
needs.

TP-Link AP500 Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	11g 54M: -76dBm@10% PER 11n HT20 MCS7: -73dBm@10% PER 11n HT40 MCS7: -71dBm@10% PER 11a 6Mbps:-94dBm@10% PER 11a 54Mbps: -75dBm@10% PER 11ac HT20 MCS8: -66dBm@10% PER 11ac HT40 MCS9: -62dBm@10% PER 11ac HT80 MCS9: -59dBm@10% PER
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1300 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Internal	No
Placement	Table
Certification	CE, FCC, RoHS
Product color	Black
LED indicators	Power, WPS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Processor frequency	1000 MHz
Compatible operating systems	Microsoft Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 8.1, Mac OS, NetWare, UNIX, Linux
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Detachable antenna
Antennas quantity	3
Package type	Box

Weight and Dimensions

Depth	162 mm
Width	242 mm
Height	44 mm
