TP-Link AP500 User Manual

16
Chapter 4

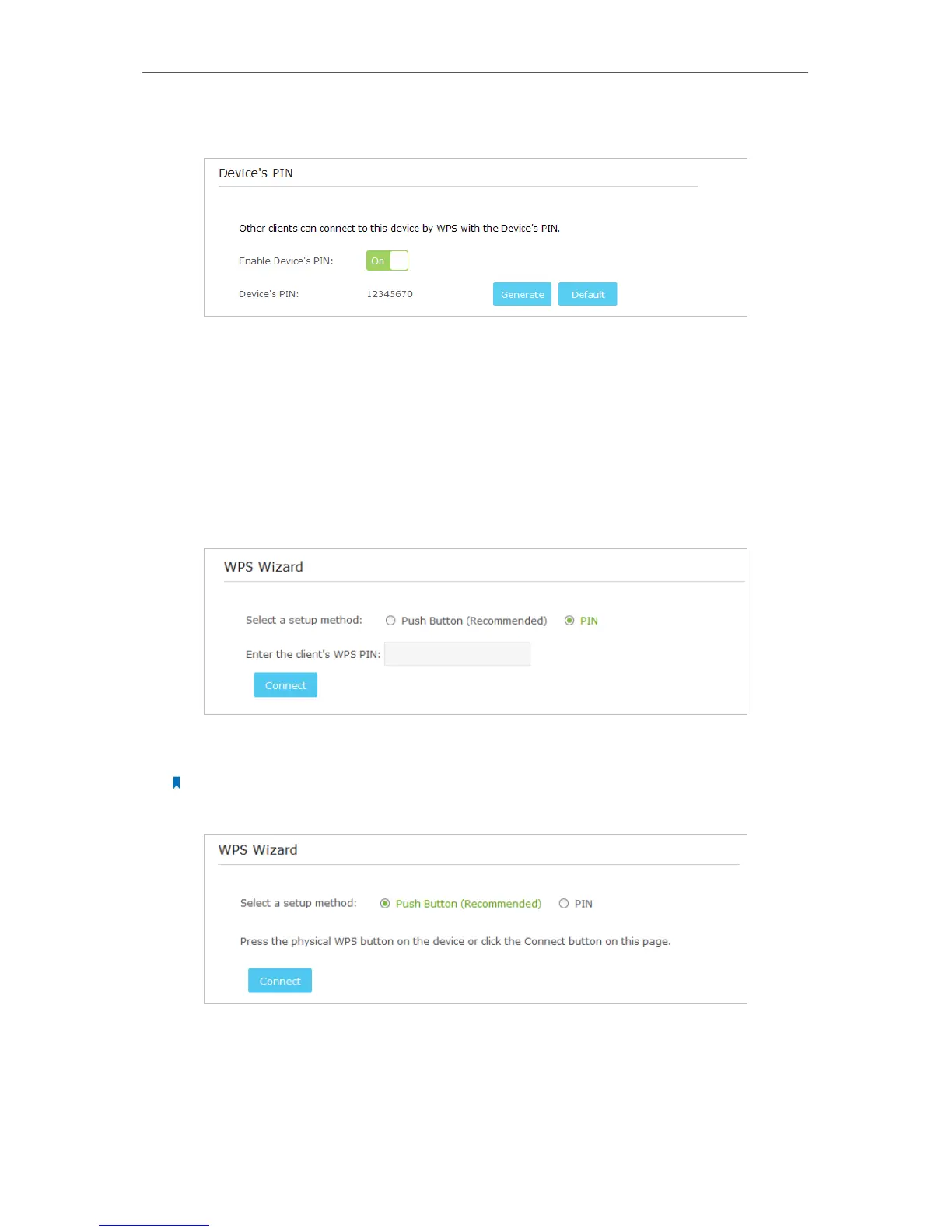

¾ Using the AP Device‘s PIN
1 ) Toggle On Enable Device’s PIN to allow wireless clients to connect to the device
using the Device’s PIN.
2 ) Click Generate to generate a new PIN randomly or click Default to restore the
current PIN to the factory default PIN. Using this PIN to connect to the AP
device. The default PIN can be found on the label of the AP device.
¾ Using the wireless client’s PIN
1 ) Select the PIN as the setup method.
2 ) Entering the wireless client’s WPS PIN into Enter the client’s WPS PIN field and
click Connect.
Note:
Selecting Push button method (Recommended) is equal to pressing the physical WPS button on the device.
4. 3. Manually set up a wireless connection
Follow the steps below to check or modify your wireless connection settings.

TP-Link AP500 Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	11g 54M: -76dBm@10% PER 11n HT20 MCS7: -73dBm@10% PER 11n HT40 MCS7: -71dBm@10% PER 11a 6Mbps:-94dBm@10% PER 11a 54Mbps: -75dBm@10% PER 11ac HT20 MCS8: -66dBm@10% PER 11ac HT40 MCS9: -62dBm@10% PER 11ac HT80 MCS9: -59dBm@10% PER
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1300 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Internal	No
Placement	Table
Certification	CE, FCC, RoHS
Product color	Black
LED indicators	Power, WPS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Processor frequency	1000 MHz
Compatible operating systems	Microsoft Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 8.1, Mac OS, NetWare, UNIX, Linux
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Detachable antenna
Antennas quantity	3
Package type	Box

Weight and Dimensions

Depth	162 mm
Width	242 mm
Height	44 mm
