Chapter 1
• Support simultaneous 2.4GHz and 5GHz connections
• Multiple detachable external antennas and high power amplifiers provide stable
signals and optimal wireless coverage
• Up to 4 SSIDs and VLAN support
• Provides WPA/WPA2, WPA-PSK/WPA2-PSK authentication, TKIP/AES encryption
security
• Supports MAC filter, throughput monitor
• Easy one-touch WPA wireless security encryption with the WPS button
• Supports firmware upgrade and Web management
• Supports system log and Traffic Statistics
1. 3. Panel Layout

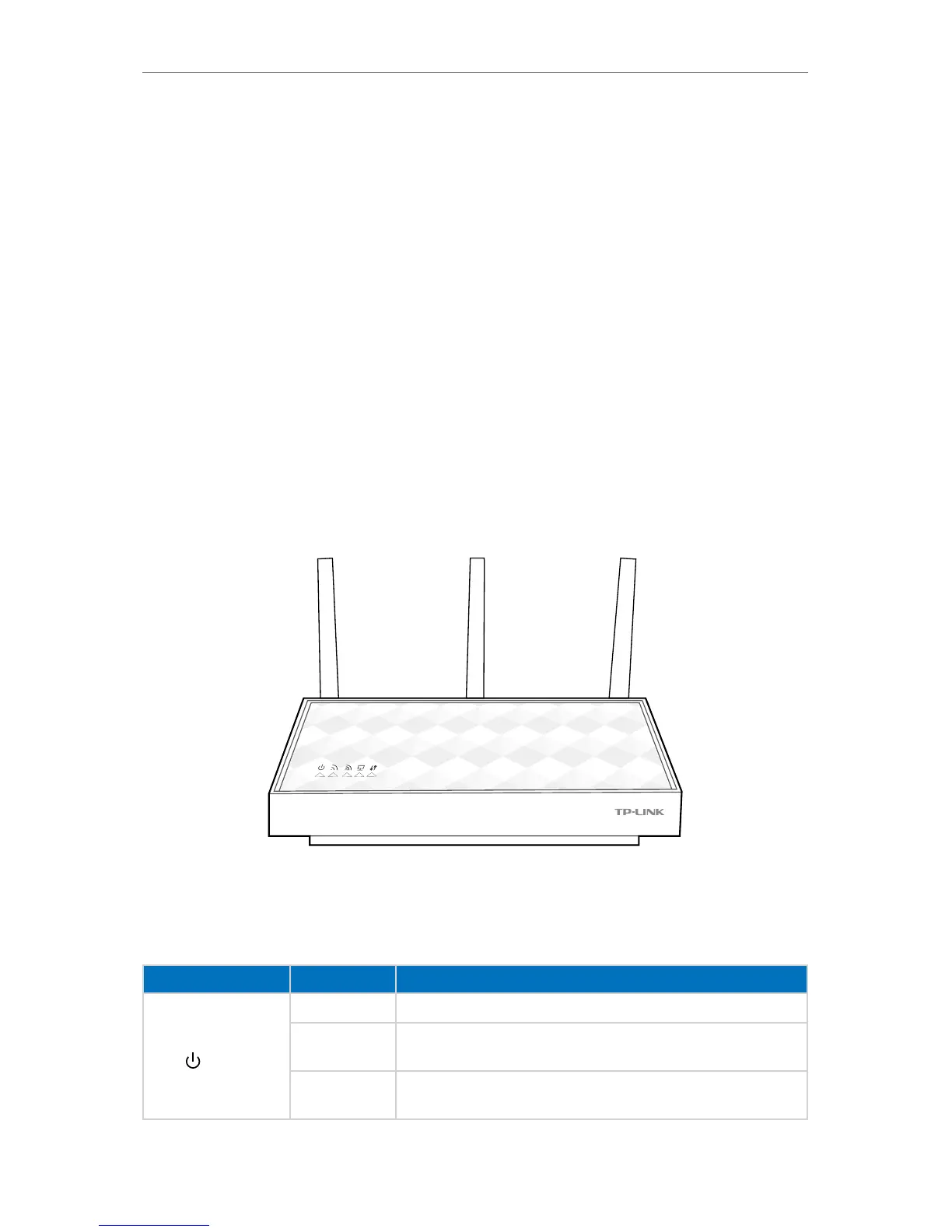

1. 3. 1. Top View
The AP device’s LEDs are located on the top panel. You can check the AP device’s
working status by following the LED Explanation table (view from left to right).
LED Explanation
Name Status Indication
(Power)
On System initialization completes.
Blinking
System initialization or firmware upgrade is in process. Do not
disconnect or power off the AP device.
Off
Power is off. Please ensure that the power adapter is connected
correctly.

TP-Link AP500 Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	11g 54M: -76dBm@10% PER 11n HT20 MCS7: -73dBm@10% PER 11n HT40 MCS7: -71dBm@10% PER 11a 6Mbps:-94dBm@10% PER 11a 54Mbps: -75dBm@10% PER 11ac HT20 MCS8: -66dBm@10% PER 11ac HT40 MCS9: -62dBm@10% PER 11ac HT80 MCS9: -59dBm@10% PER
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1300 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Internal	No
Placement	Table
Certification	CE, FCC, RoHS
Product color	Black
LED indicators	Power, WPS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Processor frequency	1000 MHz
Compatible operating systems	Microsoft Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 8.1, Mac OS, NetWare, UNIX, Linux
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Detachable antenna
Antennas quantity	3
Package type	Box

Weight and Dimensions

Depth	162 mm
Width	242 mm
Height	44 mm
