TP-Link Archer VR900 User Manual

69
Chapter 12 Specify Your Network Settings
permanent IP addresses, please configure Address Reservation on the router for the
purpose.
Follow the steps below to reserve an IP address for your device.
1. Visit http://tplinkmodem.net, and log in with the password you set for the modem
router.
2. Go to Advanced > Network > LAN Settings page and select IPv4.

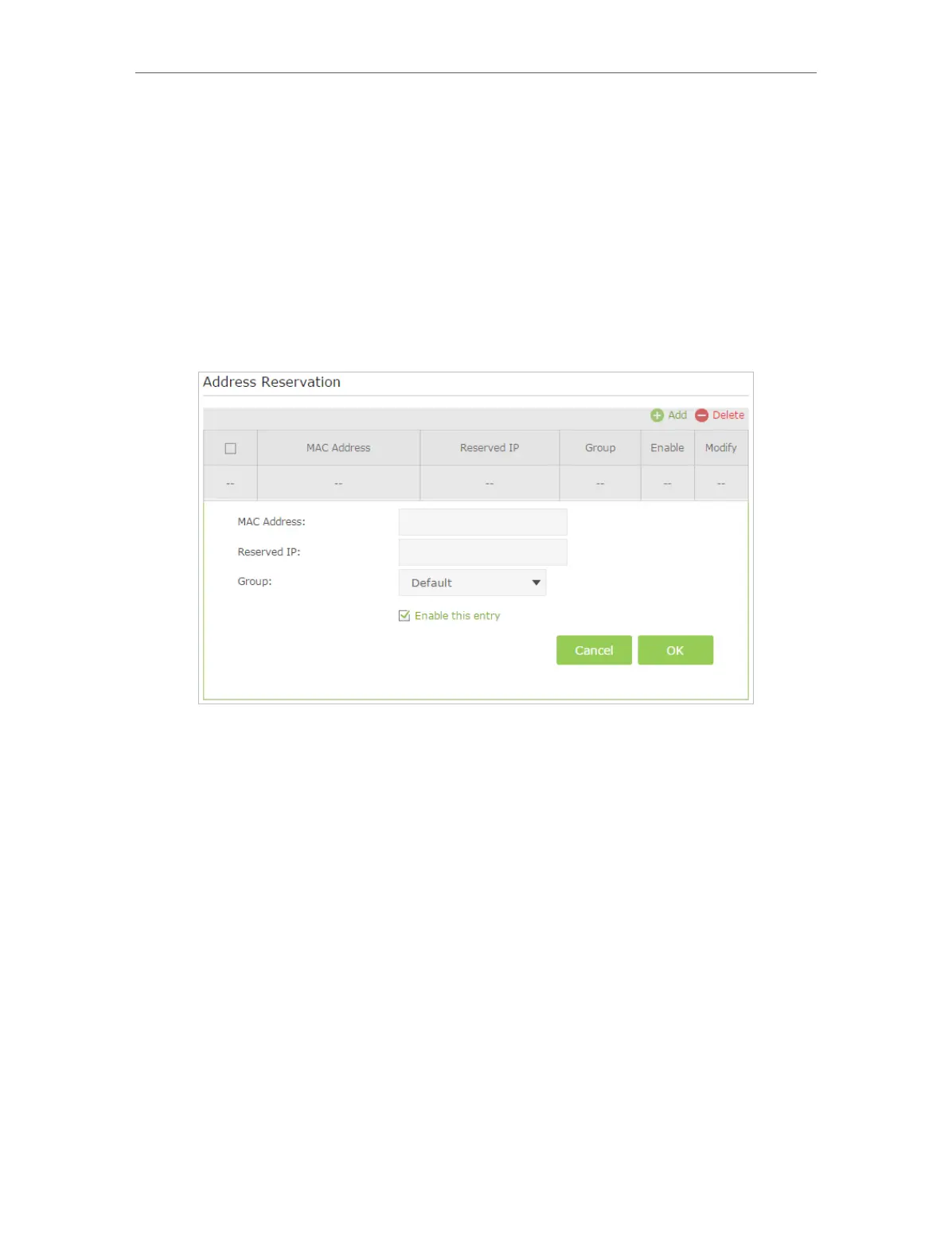

3. Scroll down to locate the Address Reservation table and click Add to add an address
reservation entry for your device.
4. Enter the MAC address of the device for which you want to reserve IP address.
5. Specify the IP address which will be reserved by the router.
6. Check to Enable this entry and click OK to make the settings effective.
12. 2. Wireless Settings
12. 2. 1. Specify Basic Wireless Settings
The modem router’s wireless network name (SSID) and password, and security option
are preset in the factory. The preset SSID and password can be found on the product
label. You can customize the wireless settings according to your needs.
Visit http://tplinkmodem.net, and log in with the password you set for the modem
router. Go to Basic > Wireless page.

TP-Link Archer VR900 Specifications

General

VPN support	PPTP, L2TP, IPSec Passthrough
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
VPN tunnels quantity	10
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
WLAN data transfer rate (second band)	600 Mbit/s
Input current	3.3 A
Input voltage	12 V
Rack mounting	No
Frequency band	2.4 & 5 GHz
Minimum system requirements	Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0\\r Cable / DSL Modem
WLAN data transfer rates supported	600, 1300 Mbit/s
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Data link protocols	IPv4, IPv6
Supported network protocols	ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC
Transmit power	0 dBmW
Antennas quantity	3
Antenna connector type	RP-SMA
Antenna gain level (max)	3 dBi
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Product type	Tabletop router
Product color	White
Mac operating systems supported	macOS
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Output current	2.5 A
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	CE, RCM, RoHS
Cables included	DSL, LAN (RJ-45), Phone (RJ-11)
WAN connection type	RJ-45
3G	-
Package depth	240 mm
Package width	318 mm
Package height	71 mm
Package weight	1270 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	163.7 mm
Width	215.7 mm
Height	38.9 mm
Weight	- g
