TP-Link Archer VR900 User Manual

85
Chapter 12 Specify Your Network Settings

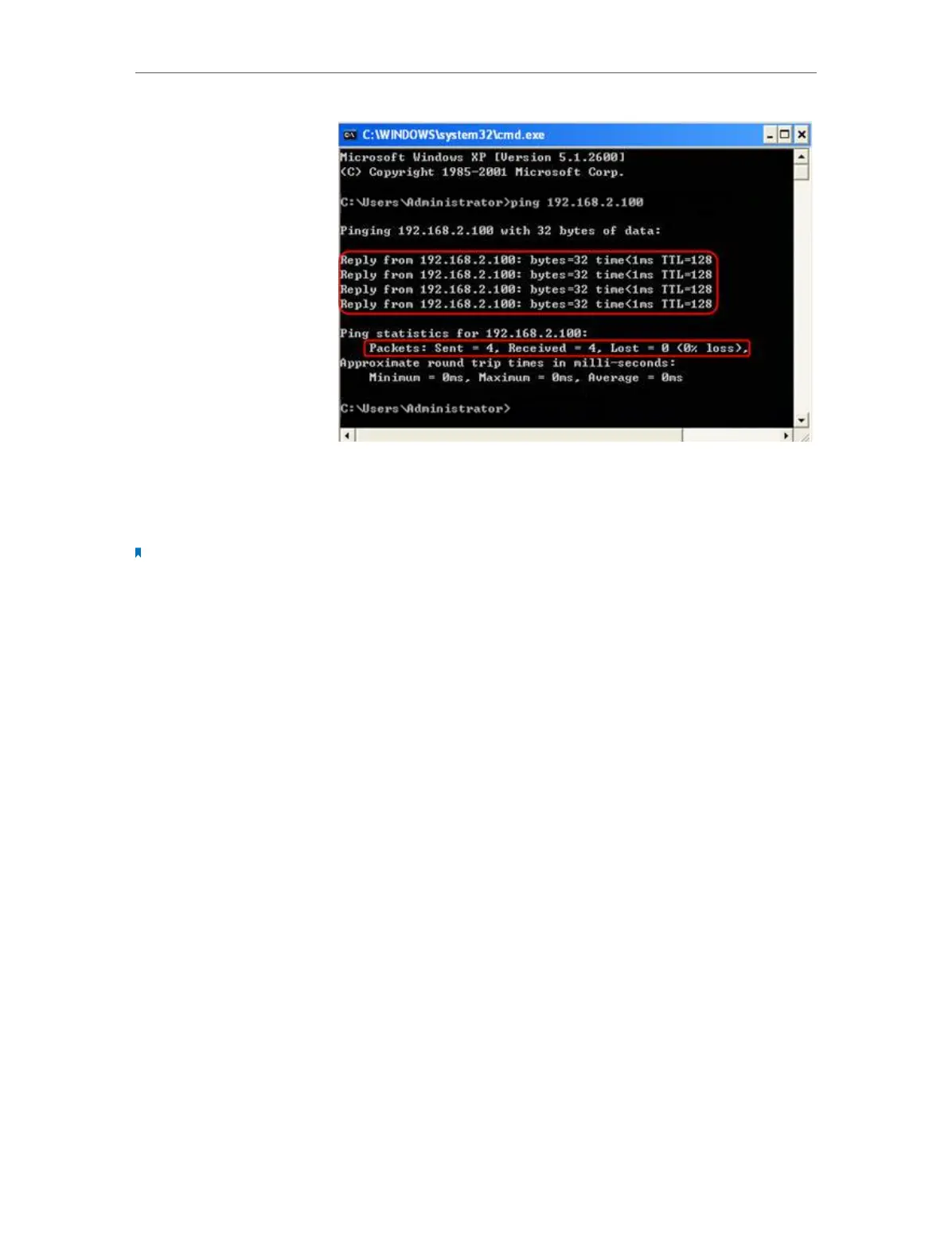

If Ping proceeds successfully (gets replies from host in Site B),
the IPSec connection is working properly now.
Now IPSec VPN is implemented to establish a connection.
Note:
1. The product supports a maximum of ten simultaneous connections.
2. If one of the site has been off line for a while, for example, if Site A has been disconnected, on Site B you need to
click Disable and then click Enable after Site A back on line in order to re-establish the IPSec tunnel.
12. 7. Set Up the IPv6 Tunnel
The IPv6 Tunnel feature helps you obtain IPv6 resources based on an IPv4 WAN
connection or vice versa.
IPv6 Tunnel is a transition mechanism that enables IPv6-only hosts to reach IPv4
services or vice versa and allows isolated IPv6 hosts and networks to reach each other
over IPv4-only infrastructure before IPv6 completely supplants IPv4. It is a temporary
solution for networks that do not support native dual-stack, where both IPv6 and IPv4
run independently.
The modem router provides three tunneling mechanisms: 6to4, 6rd and DS-Lite. The
way to set up 6rd and DS-Lite tunnel are similar.
12. 7. 1. Use the Public IPv6 Tunnel Service-6to4
The 6to4 tunnel is a kind of public service. If there is any 6to4 server in your network,
you can use this mechanism to access IPv6 service. If your ISP provides you with an
IPv4-only connection but you want to visit IPv6 websites, you can try to set up a 6to4
tunnel.
Done!

TP-Link Archer VR900 Specifications

General

VPN support	PPTP, L2TP, IPSec Passthrough
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
VPN tunnels quantity	10
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
WLAN data transfer rate (second band)	600 Mbit/s
Input current	3.3 A
Input voltage	12 V
Rack mounting	No
Frequency band	2.4 & 5 GHz
Minimum system requirements	Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0\\r Cable / DSL Modem
WLAN data transfer rates supported	600, 1300 Mbit/s
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Data link protocols	IPv4, IPv6
Supported network protocols	ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC
Transmit power	0 dBmW
Antennas quantity	3
Antenna connector type	RP-SMA
Antenna gain level (max)	3 dBi
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Product type	Tabletop router
Product color	White
Mac operating systems supported	macOS
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Output current	2.5 A
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	CE, RCM, RoHS
Cables included	DSL, LAN (RJ-45), Phone (RJ-11)
WAN connection type	RJ-45
3G	-
Package depth	240 mm
Package width	318 mm
Package height	71 mm
Package weight	1270 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	163.7 mm
Width	215.7 mm
Height	38.9 mm
Weight	- g
