06
L2 Managed Switch
Installation
3. Turnover the device and attach the supplied rubber feet to the recessed areas on
the bottom at each corner of the device.

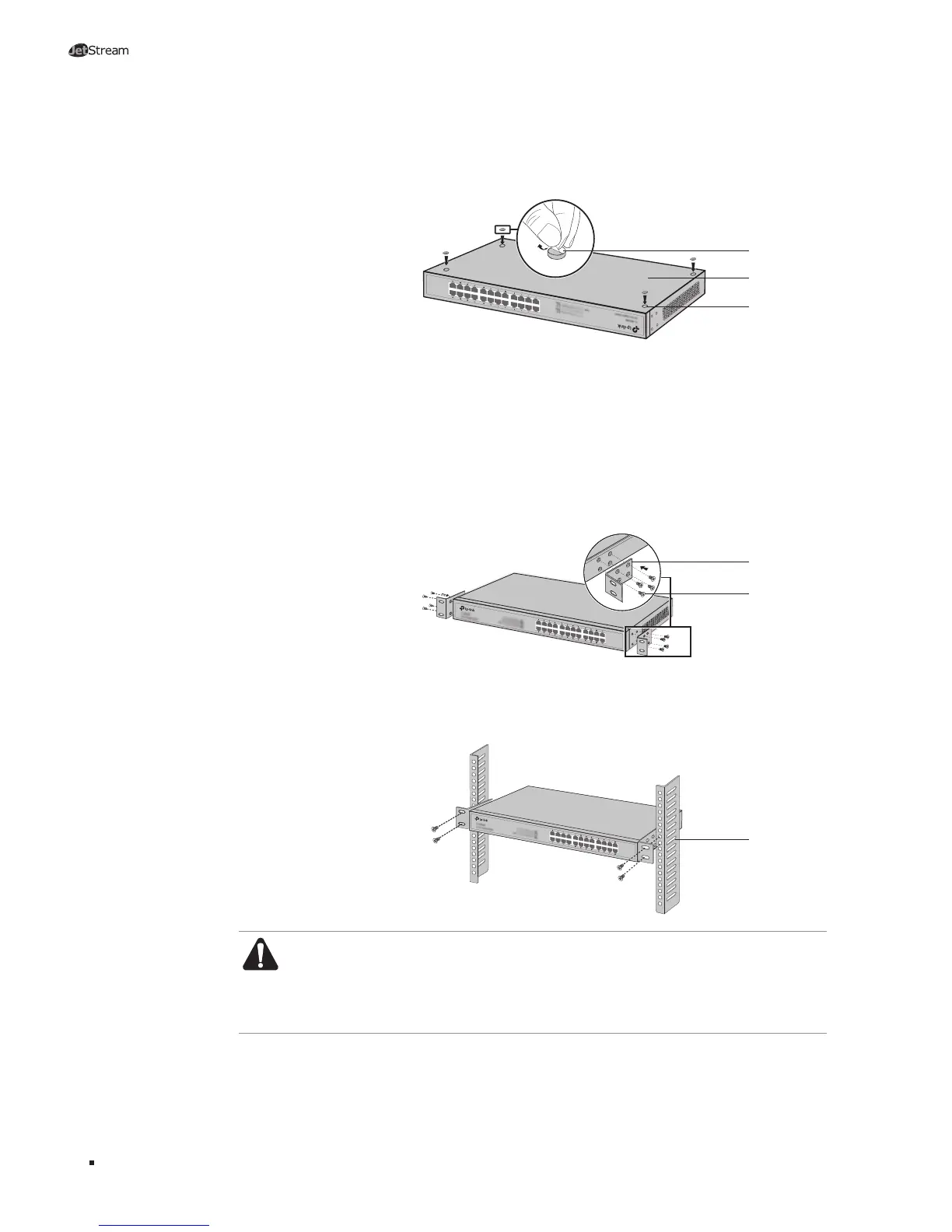

Figure 2-1 Desktop Installation
Feet
Bottom of the
Device
Notch
■
Rack Installation
To install the device in an EIA standard-sized, 19-inch rack, follow the instructions
described below:
1. Check the grounding and stability of the rack.
2. Secure the supplied rack-mounting brackets to each side of the device with
supplied screws, as illustrated in the following figure.
Figure 2-2 Bracket Installation
Rack-
mounting
Bracket
Screw
3. After the brackets are attached to the device, use suitable screws (not provided)
to secure the brackets to the rack, as illustrated in the following figure.
Figure 2-3 Rack Installation
Rack
Caution:
■
Please set 5–10cm gaps around the device for air circulation.
■
Please avoid any heavy thing placed on the device.
■
Please mount devices in sequence from the bottom to top of the rack and ensure a
certain clearance between devices for the purpose of heat dissipation.
