TP-Link NC260 User Manual

NC260
20

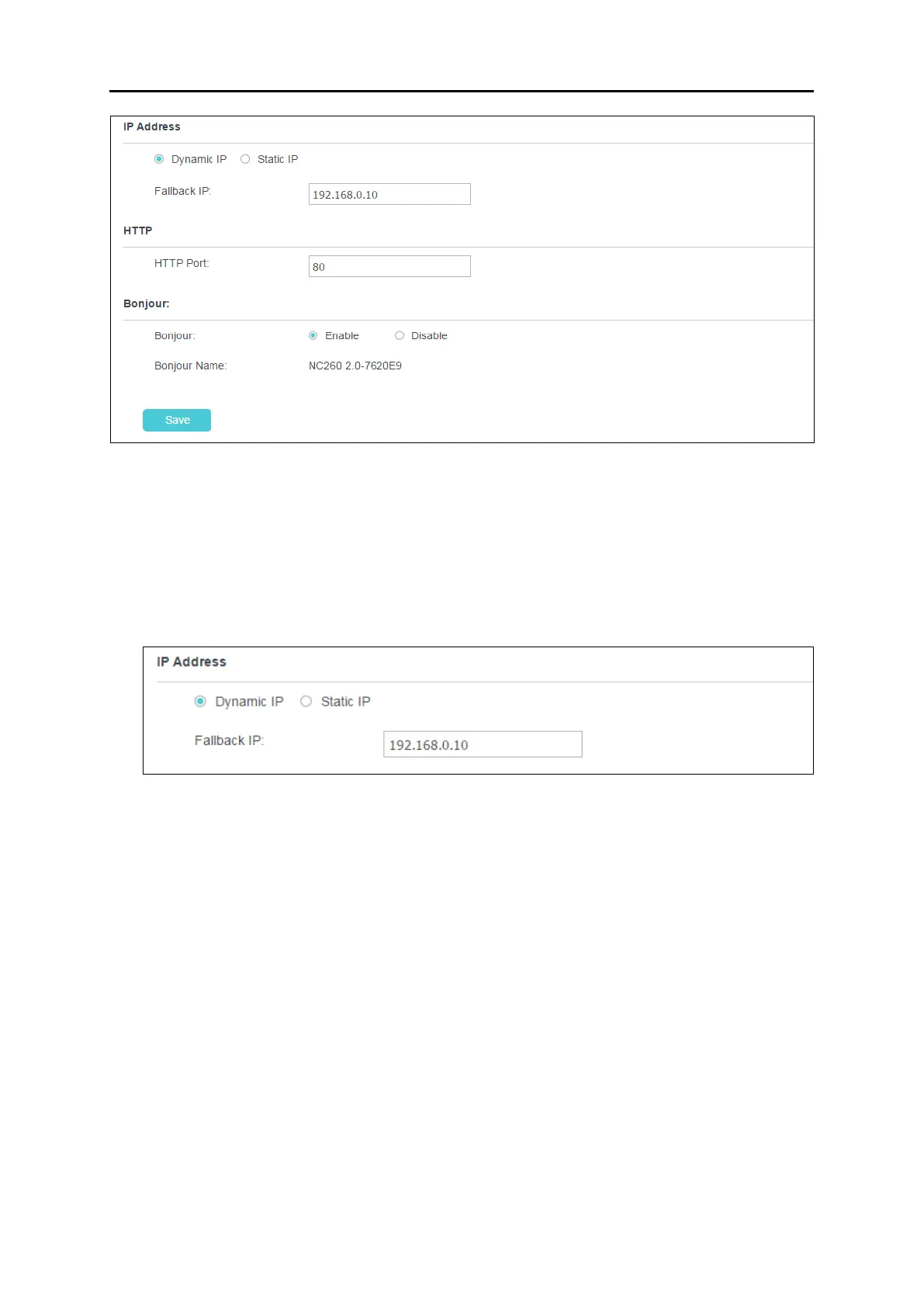

IP Address
On this section, you can configure your camera’s IP address which is used to access and
configure the camera.
 Dynamic IP: Select this option when a DHCP server is installed on the network to issue IP
address assignment. With this setting, the IP address of the camera is assigned
automatically.
• Fallback IP: If the camera cannot get a dynamic IP address from a DHCP server within
limited tries, the camera will assign a default IP address, 192.168.0.10, by itself as the
Fallback IP address.
 Static IP: Select this option when a static or fixed IP address is obtained for the camera. A
static IP address will ease your access to the camera in the future. Add your camera’s
static IP information to your router to avoid IP conflicts.

TP-Link NC260 Specifications

General

Type	IP security camera
Certification	RoHS, FCC, CE
Day/night mode	Yes
Placement supported	Indoor
Connectivity technology	Wired
Form factor	Cube
Mounting type	Desk
Product color	White
Full HD	No
Total megapixels	1 MP
Maximum resolution	1280 x 720 pixels
Supported video modes	720p
Video formats supported	H.264
Supported graphics resolutions	1280 x 720 (HD 720)
Minimum illumination	- lx
Field of view (FOV) angle	113 °
Sensor type	CMOS
Optical sensor size	1/4 \
Fixed focal length	2.8 mm
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Wi-Fi data rate (max)	300 Mbit/s
Ethernet interface type	Fast Ethernet
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	3 GB
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Audio system	2-way
AC input voltage	9 V
DC output current	0.6 A
Power source type	DC
Power consumption (max)	5.4 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Password protection type	User

Weight and Dimensions

Depth	134.4 mm
Width	68.4 mm
Height	75.7 mm
