TP-Link NC260 User Manual

NC260
19
4.4 Advanced

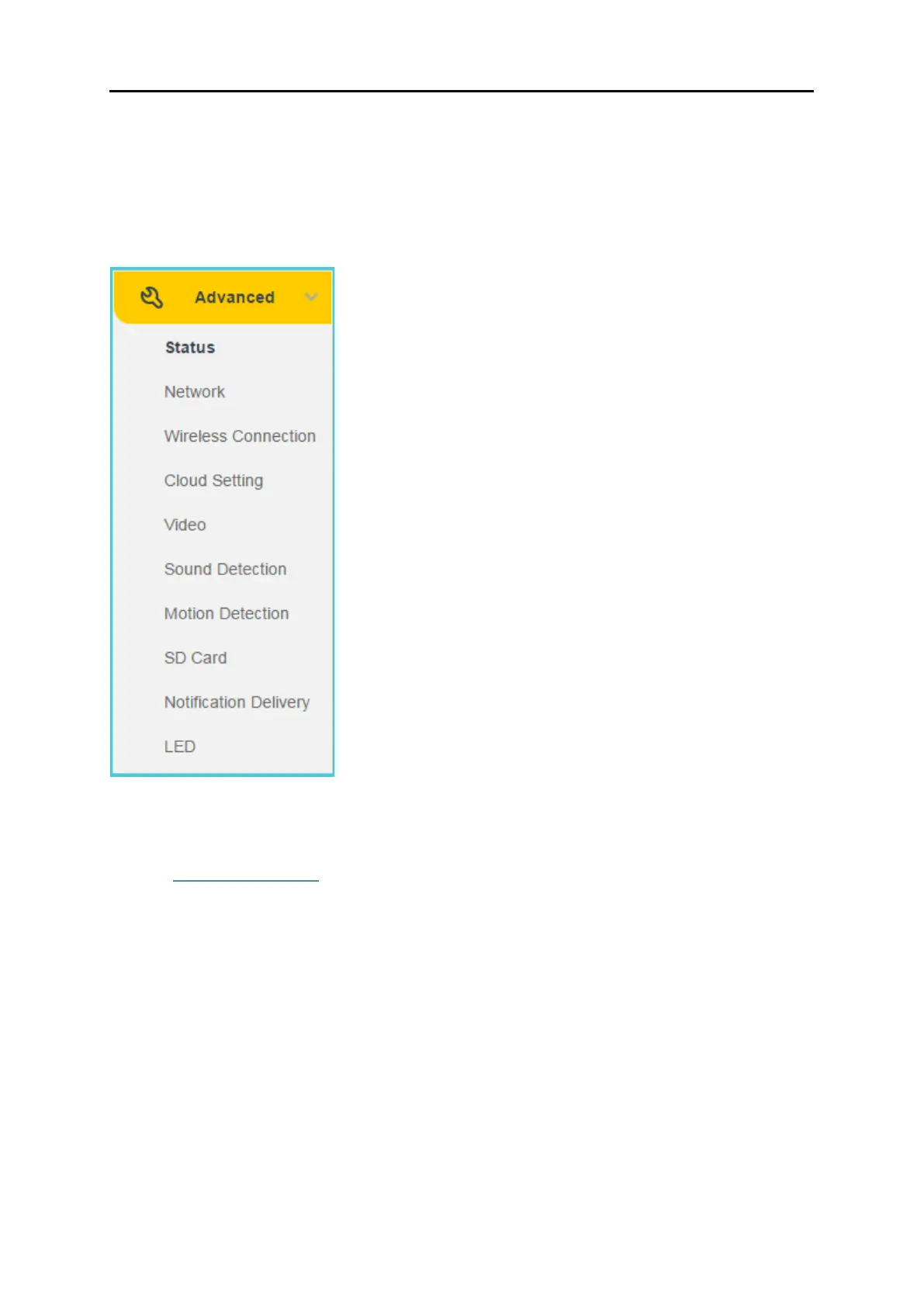

Click the Advanced menu to display the submenus including Status, Network, Wireless
Connection, Cloud Setting, Video, Sound Detection, Motion Detection, SD Card, Notification
Delivery and LED.
4.4.1 Advanced > Status
Refer to 4.3.1 Basic > Status.
4.4.2 Advanced > Network
On this page, you can configure the network settings of the camera.

TP-Link NC260 Specifications

General

Type	IP security camera
Certification	RoHS, FCC, CE
Day/night mode	Yes
Placement supported	Indoor
Connectivity technology	Wired
Form factor	Cube
Mounting type	Desk
Product color	White
Full HD	No
Total megapixels	1 MP
Maximum resolution	1280 x 720 pixels
Supported video modes	720p
Video formats supported	H.264
Supported graphics resolutions	1280 x 720 (HD 720)
Minimum illumination	- lx
Field of view (FOV) angle	113 °
Sensor type	CMOS
Optical sensor size	1/4 \
Fixed focal length	2.8 mm
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Wi-Fi data rate (max)	300 Mbit/s
Ethernet interface type	Fast Ethernet
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	3 GB
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Audio system	2-way
AC input voltage	9 V
DC output current	0.6 A
Power source type	DC
Power consumption (max)	5.4 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Password protection type	User

Weight and Dimensions

Depth	134.4 mm
Width	68.4 mm
Height	75.7 mm
