TP-Link NC260 User Manual

NC260
33

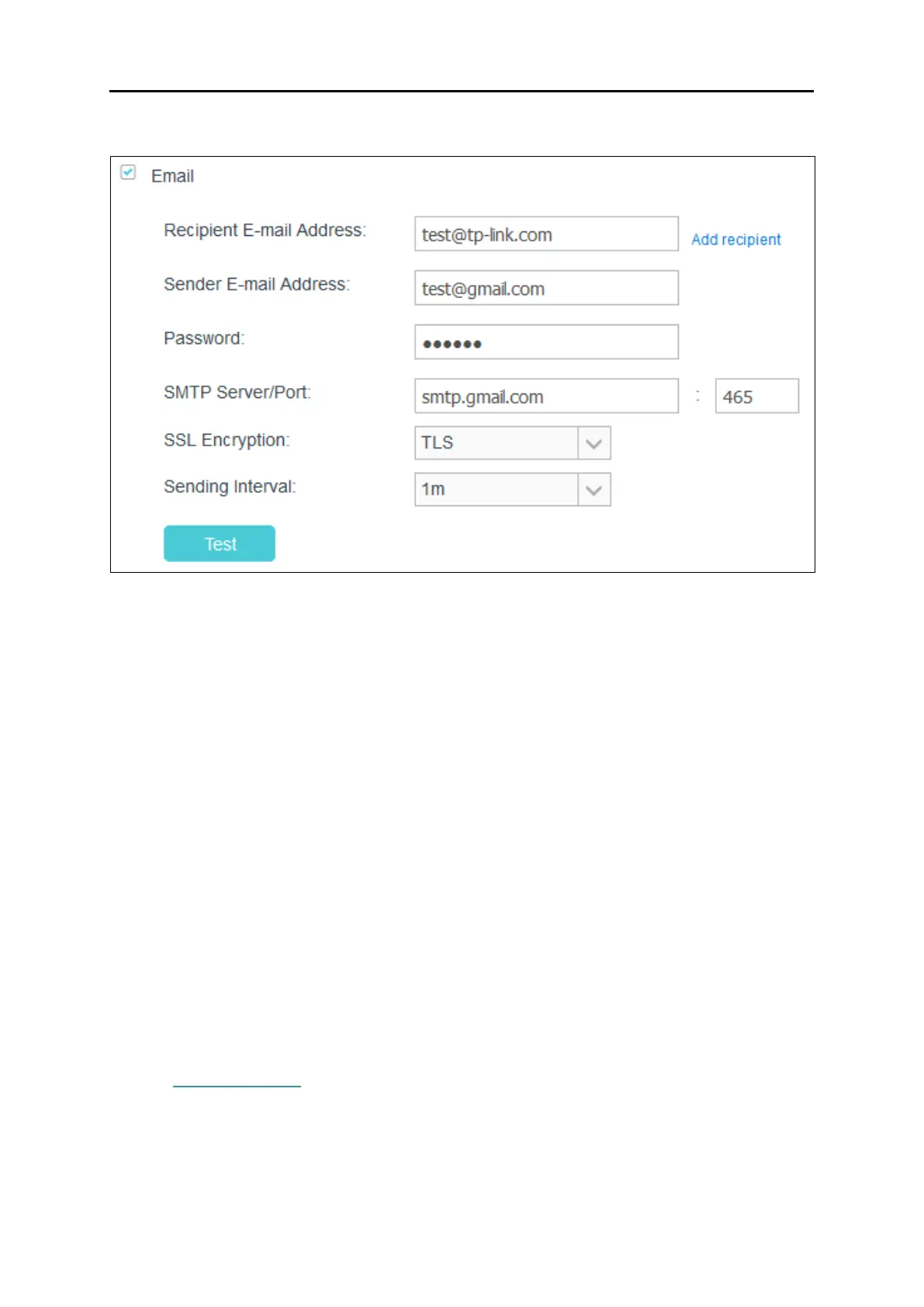

For example, if you want to use Gmail with TLS for E-mail notifications, follow the steps below:
1. Enter the receiver’s E-mail address in Recipient E-mail Address, e.g. test@tp-link.com.
2. Enter your E-mail address in Sender E-mail Address, e.g. test@gmail.com.
3. Enter the password required to access the SMTP server.
4. Enter smtp.gmail.com in SMTP server.
5. Select TLS as the SSL encryption and the SMPT server port number will be changed to 465
automatically.
6. Set the Sending Interval, e.g. 1m.
7. Click Save to save and enable the settings.
Click Test, and a test JPEG snapshot will be sent to the recipient E-mail address to check
whether your settings are correct.
If the settings are tested correct, click OK.
If the settings are tested incorrect, check your network and E-mail settings and try again later.
4.4.10 Advanced > LED
Refer to 4.3.5 Basic > LED.

TP-Link NC260 Specifications

General

Type	IP security camera
Certification	RoHS, FCC, CE
Day/night mode	Yes
Placement supported	Indoor
Connectivity technology	Wired
Form factor	Cube
Mounting type	Desk
Product color	White
Full HD	No
Total megapixels	1 MP
Maximum resolution	1280 x 720 pixels
Supported video modes	720p
Video formats supported	H.264
Supported graphics resolutions	1280 x 720 (HD 720)
Minimum illumination	- lx
Field of view (FOV) angle	113 °
Sensor type	CMOS
Optical sensor size	1/4 \
Fixed focal length	2.8 mm
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Wi-Fi data rate (max)	300 Mbit/s
Ethernet interface type	Fast Ethernet
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	3 GB
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Audio system	2-way
AC input voltage	9 V
DC output current	0.6 A
Power source type	DC
Power consumption (max)	5.4 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Password protection type	User

Weight and Dimensions

Depth	134.4 mm
Width	68.4 mm
Height	75.7 mm
