TP-Link NC260 User Manual

NC260
23

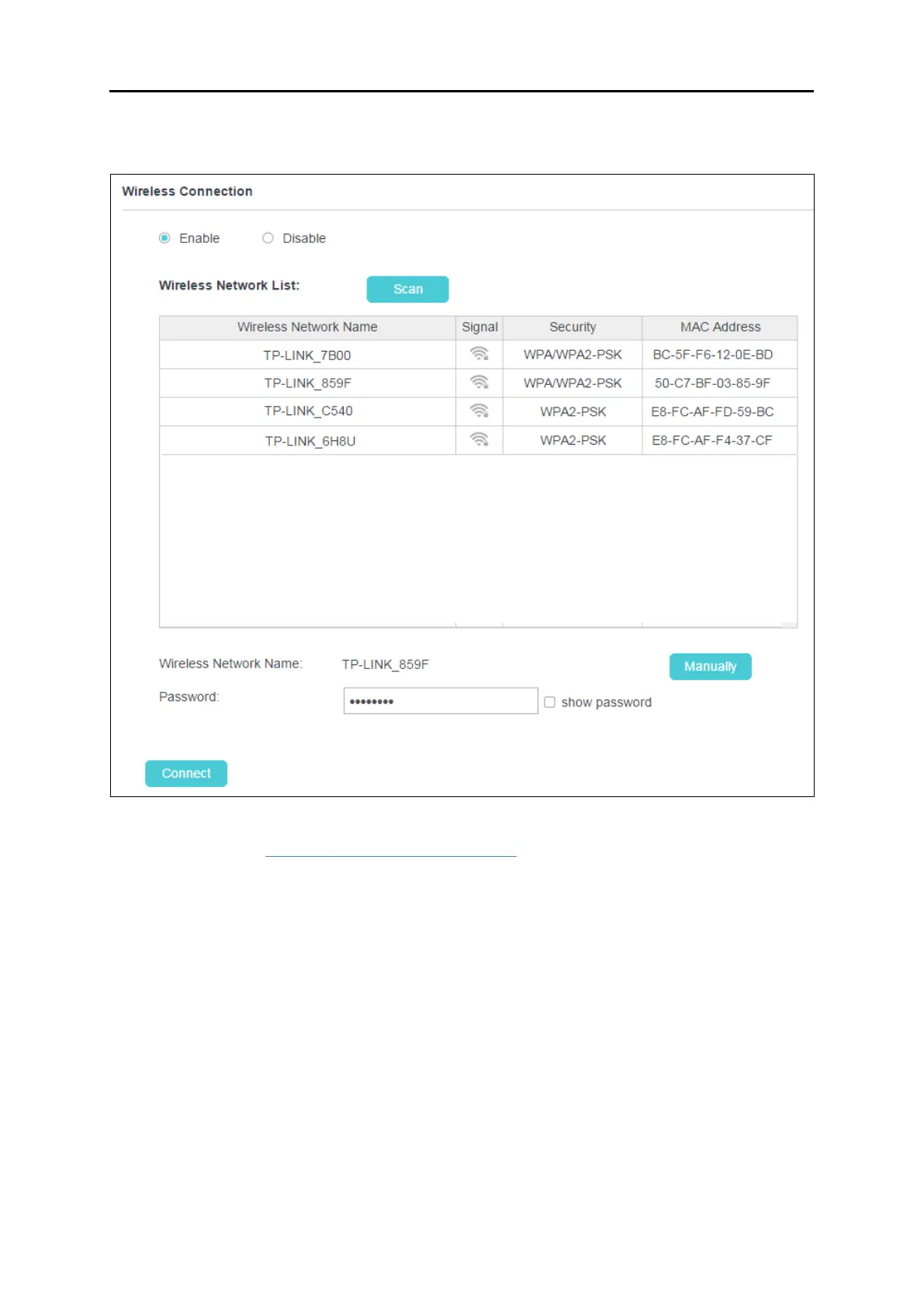

4.4.3 Advanced > Wireless Connection
You can set the wireless connection manually besides the basic settings for wireless
connection (Refer to 4.3.3 Basic > Wireless Connection
).
For example, a hidden wireless network does not broadcast its SSID, and you cannot find it
from the Wireless Network List. If you want to connect the camera to a hidden wireless network,
you need to make it manually. Click the Manually button. Then enter the wireless network name,
select the security type and encryption type of the wireless network, enter the password if
needed, and click Connect.

TP-Link NC260 Specifications

General

Type	IP security camera
Certification	RoHS, FCC, CE
Day/night mode	Yes
Placement supported	Indoor
Connectivity technology	Wired
Form factor	Cube
Mounting type	Desk
Product color	White
Full HD	No
Total megapixels	1 MP
Maximum resolution	1280 x 720 pixels
Supported video modes	720p
Video formats supported	H.264
Supported graphics resolutions	1280 x 720 (HD 720)
Minimum illumination	- lx
Field of view (FOV) angle	113 °
Sensor type	CMOS
Optical sensor size	1/4 \
Fixed focal length	2.8 mm
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Wi-Fi data rate (max)	300 Mbit/s
Ethernet interface type	Fast Ethernet
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	3 GB
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Audio system	2-way
AC input voltage	9 V
DC output current	0.6 A
Power source type	DC
Power consumption (max)	5.4 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Password protection type	User

Weight and Dimensions

Depth	134.4 mm
Width	68.4 mm
Height	75.7 mm
