TP-Link RE330 User Manual

3
Chapter 1
Get to Know About Your Extender
1. 1. Product Overview
Bring Dead Zones Back to Life
Tired of Wi-Fi “dead zones”? The TP-Link extender is connected to your router wirelessly,
strengthening its signal and expanding its coverage into areas that could not otherwise
be reached.
Easy Installation & Quick Position
The extender works with any standard wireless router. Instantly connect the extender
to a router by pressing the router’s WPS button (if available) followed by the extender’s
WPS button. Alternatively, follow the Quick Setup instructions on the extender’s web
management page.
Once the extender is connected to a router, you can relocate it to your preferred location
with no further configuration required. The intelligent signal light can help to find the
best location.
Easy Management with the TP-Link Tether App
Tether provides a simple, intuitive way to access and manage your extender with your
smart devices.

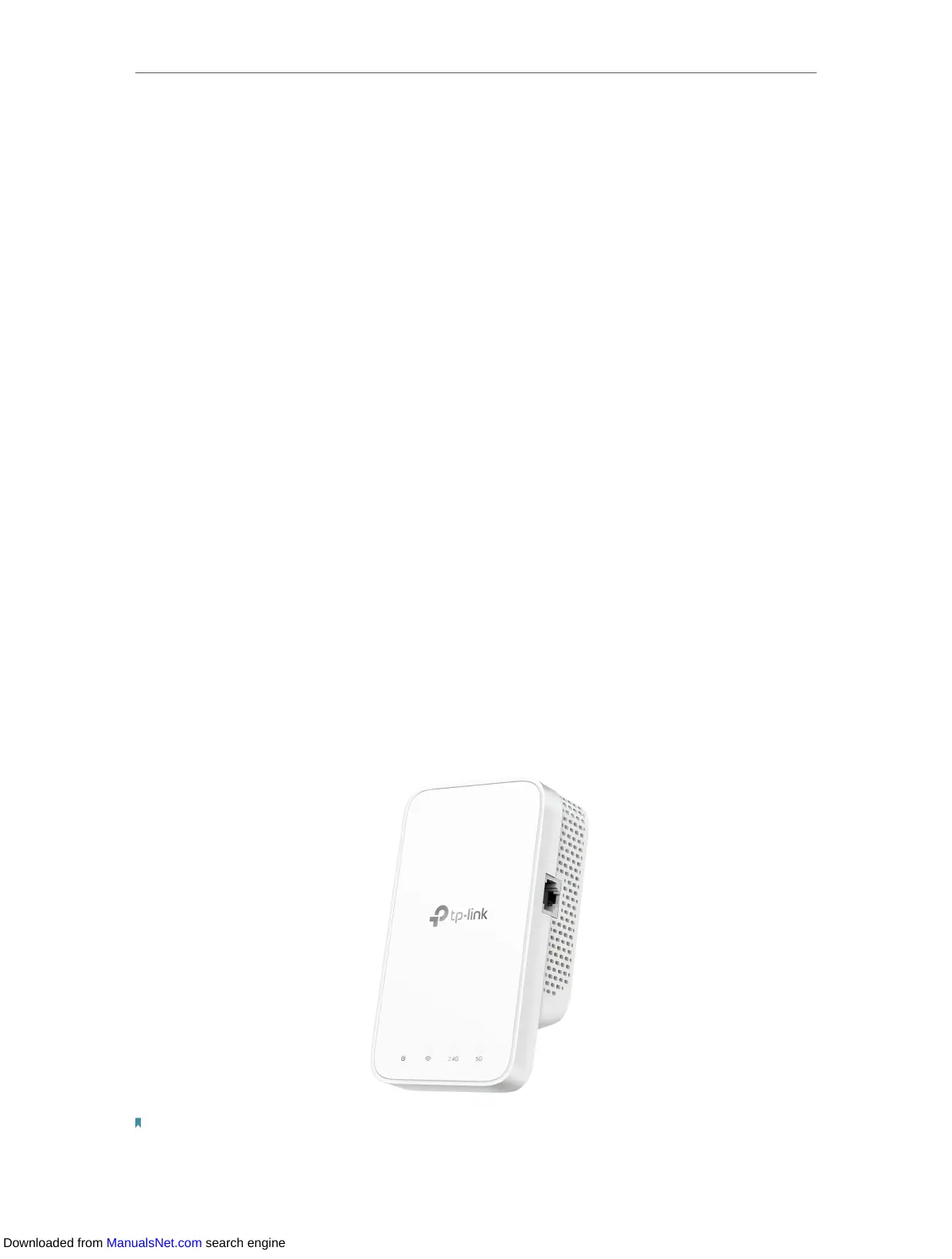

1. 2. Appearance
1. 2. 1. LED Explanation
Note: Image may differ from your actual product.
You can check the extender’s working status by following the LED Explanation table.
Downloaded from ManualsNet.com search engine

TP-Link RE330 Specifications

General

Type	Network repeater
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Antenna type	Internal
Antennas quantity	2
Wi-Fi	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Cabling technology	10/100Base-T(X)
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN (RJ-45) ports	1
Product color	White
Quantity per pack	1 pc(s)
Power consumption (typical)	9.5 W
Package type	Box
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	35 mm
Width	69.5 mm
Height	124.1 mm
