Other operations for the entries as shown in Figure 4-44:
Select the IP / MAC Filter Set Index and IP/MAC Filter Rule Index to view or modify the entry.
Select the IP / MAC Filter Set Index and IP/MAC Filter Rule Index to locate the specific rule, and
then click the DELETE button to delete the entry.
4.5.2.2 MAC Filter

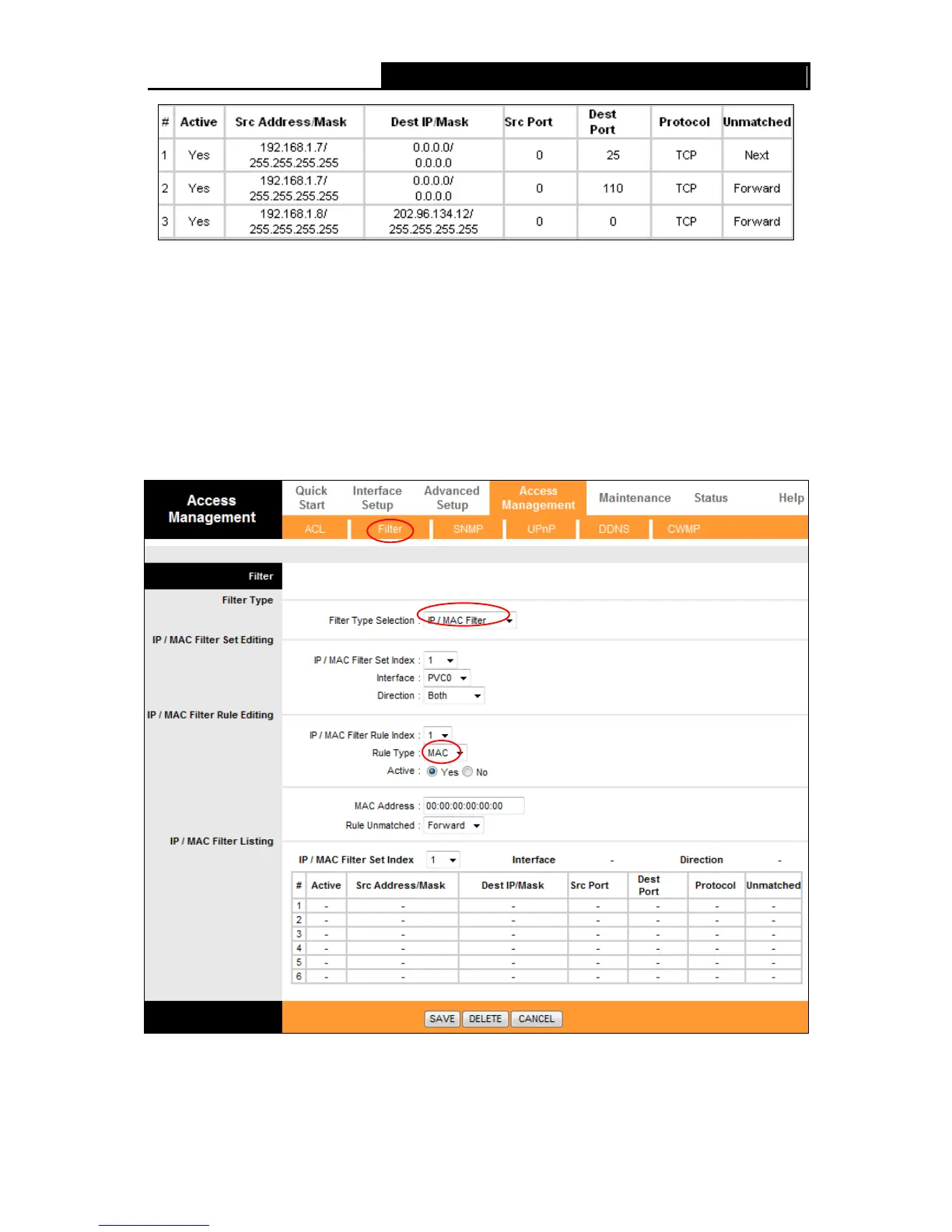

Select IP/MAC Filter as the Filter type, and select MAC as the Rule type (shown in Figure 4-45),
and then you can configure the filter rules based on MAC address.
Figure 4-45
Rule Type: Select MAC for the MAC Filter rule.
Active: Select “Yes” to make the rule to take effect.
65
