TD-W8950ND 150Mbps Wireless N ADSL2+ Modem Router User Guide
)
Note:
The Total Upstream Bandwidth and Total Downstream Bandwidth are required to be configured.
4.4.9.1 Rule List

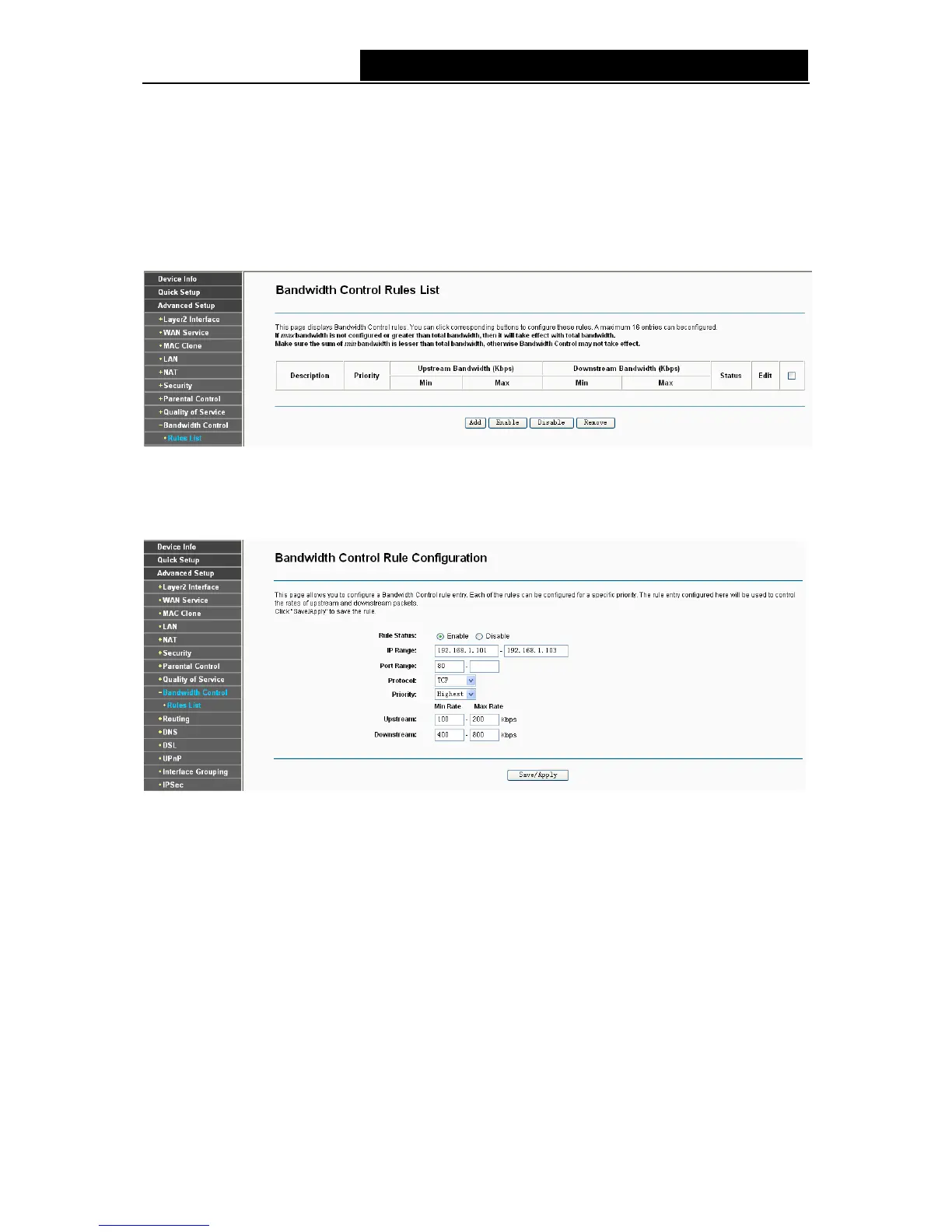

Choose “Advanced Setup”Æ“Bandwidth Control” Æ“Rule List” and then you will see the
screen as shown in Figure 4-47. This page allows you to view and configure TC rules.
Figure 4-47
To add a TC rule, click the Add button and you can configure it in the screen as shown in Figure
4-48.
Figure 4-48
¾ Rule Status: Select the status of the rule from the drop-down list to enable or disable the rule.
¾ IP Range: Enter a single IP address or a range of IP addresses.
¾ Port Range: Enter a single port or a range of ports.
¾ Protocol: Select a protocol type from the drop-down list. TCP, UDP and ALL are available
here.
¾ Priority: Select priority form the drop-down list. There are five options: Highest, 1, 2, 3, 4, 5, 6
and Lowest. The default precedence of the rule is 4.
¾ Upstream: Enter the min and max upload speed through the WAN port.
¾ Downstream: Enter the min and max download speed through the WAN port.
After completing the above configuration, click the Save/Apply button to make it take effect and
then you will see the following list as shown in Figure 4-49. If you want to modify the rule, click the
48
