TD-W8950ND 150Mbps Wireless N ADSL2+ Modem Router User Guide

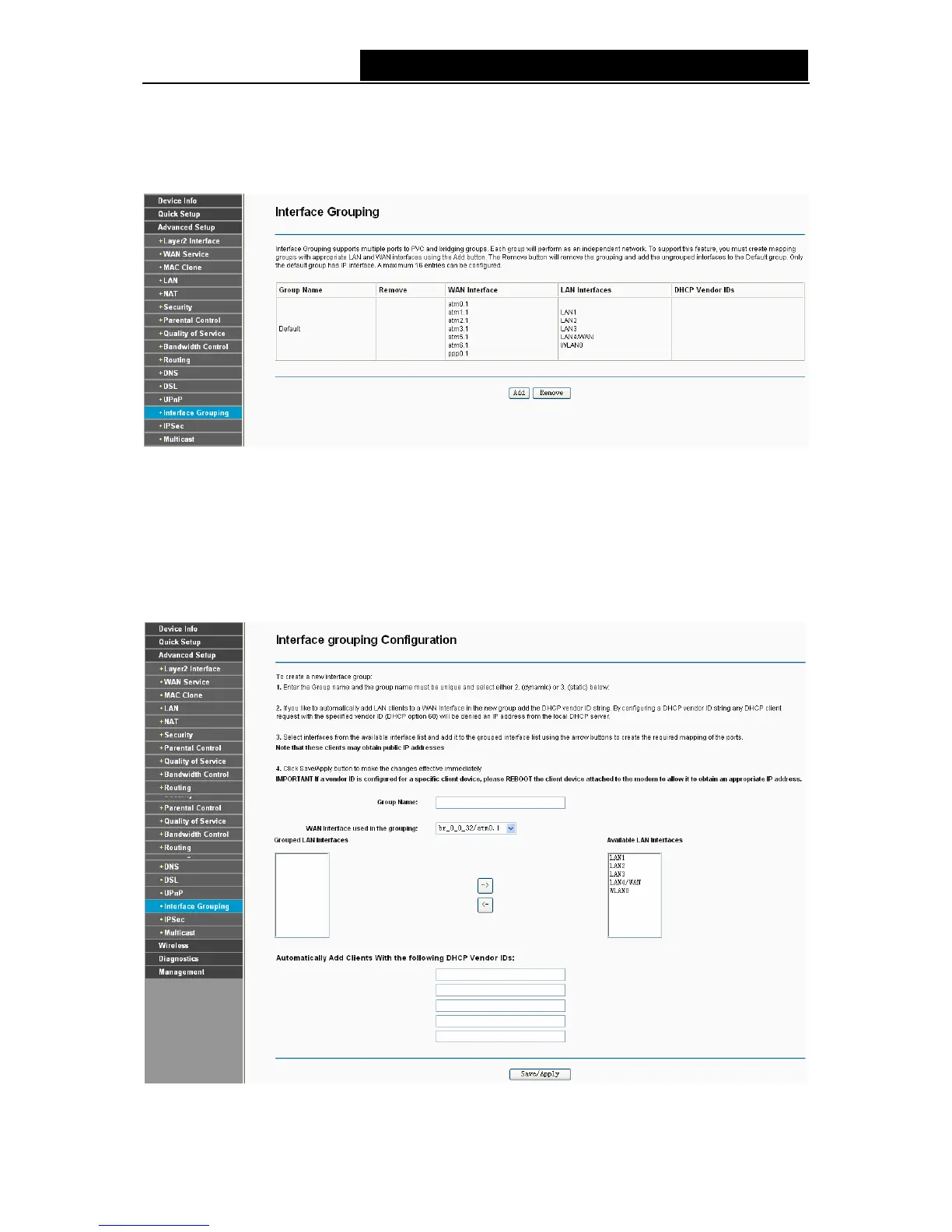

4.4.14 Interface Grouping
Choose “Advanced Setup”Æ“Interface Grouping”, you can configure multiple ports to PVC and
bridging groups to perform as an independent network.
Figure 4-60
To support this feature, you must create mapping groups with appropriate LAN and WAN
interfaces using the Add button. The Remove button will remove the grouping and add the
ungrouped interfaces to the Default group. Only the default group has IP interface.
To create a new interface group:
1. Click the Add button. You can add a new interface group in the next screen.
Figure 4-61
55
