TD-W8950ND 150Mbps Wireless N ADSL2+ Modem Router User Guide

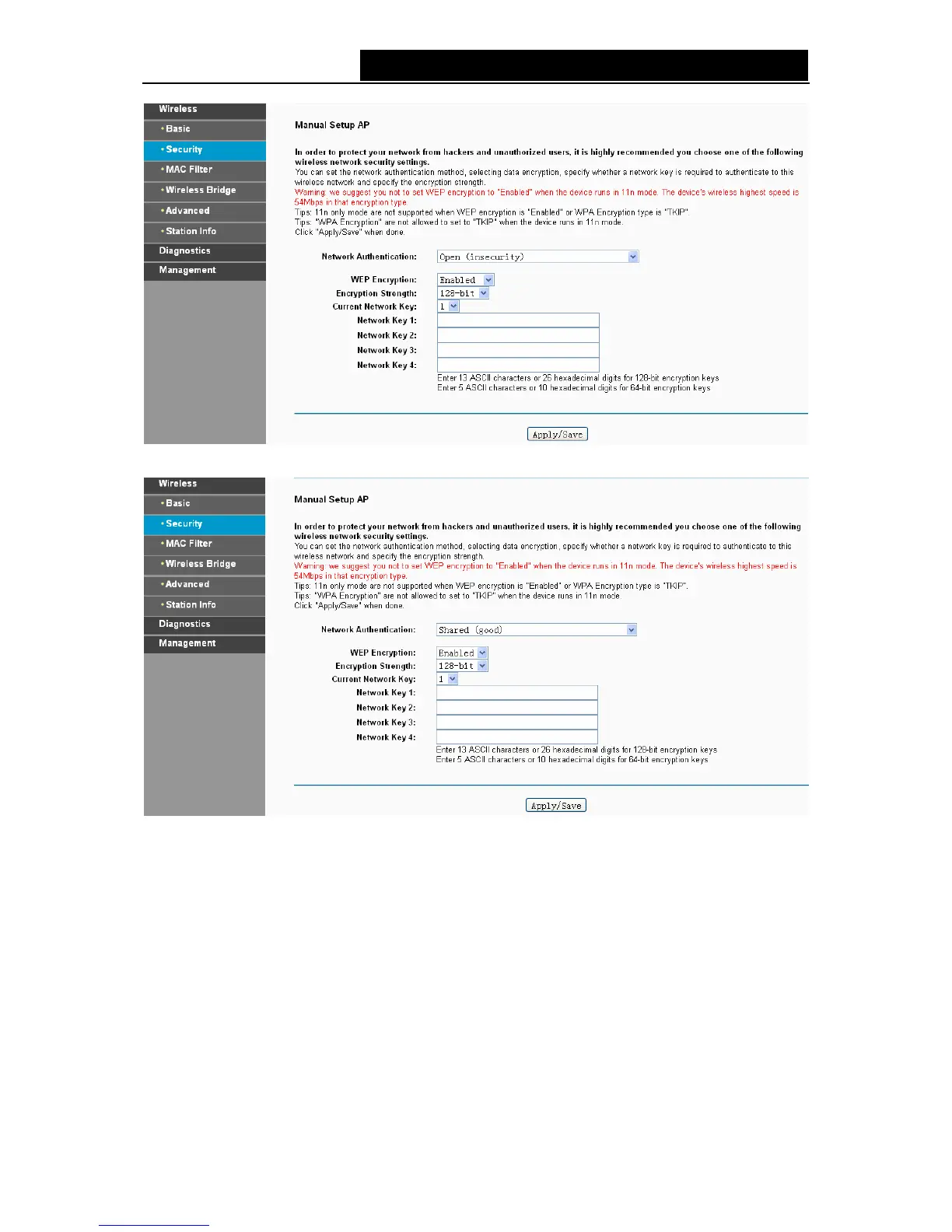

Figure 4-76
Figure 4-77
¾ Encryption Strength: Select the appropriate level of encryption, 64-bit or 128-bit.
¾ Current Network Key: To indicate which WEP key to use, select a transmission key number.
¾ Network Key 1-4: If you want to manually enter the WEP keys, then enter them in the network
Key 1-4 fields.
Configure WEP Settings
1. Select Shared (good) from the Network Authentication drop-down list. The menu will
change to offer the appropriate settings.
2. Select 64-bit from the WEP Encryption drop-down list.
3. Select “1” from Current Network Key drop-down list.
4. Type in the password in the Network Key 1 field.
70
