TD-W8968 300Mbps Wireless N USB ADSL2+ Modem Router User Guide
16
¾ Wireless Router Mode: In this mode, the device enables multi-users to share Internet via
Ethernet WAN (EWAN) using its interchangeable LAN/WAN port and share it wirelessly at
300Mbps wireless 802.11n speeds.
z ADSL Modem Router Mode
1) Change the VPI or VCI values which are used to define a unique path for your connection.
If you have been given specific settings for this to configuration, type in the correct values
assigned by your ISP. Click Next.

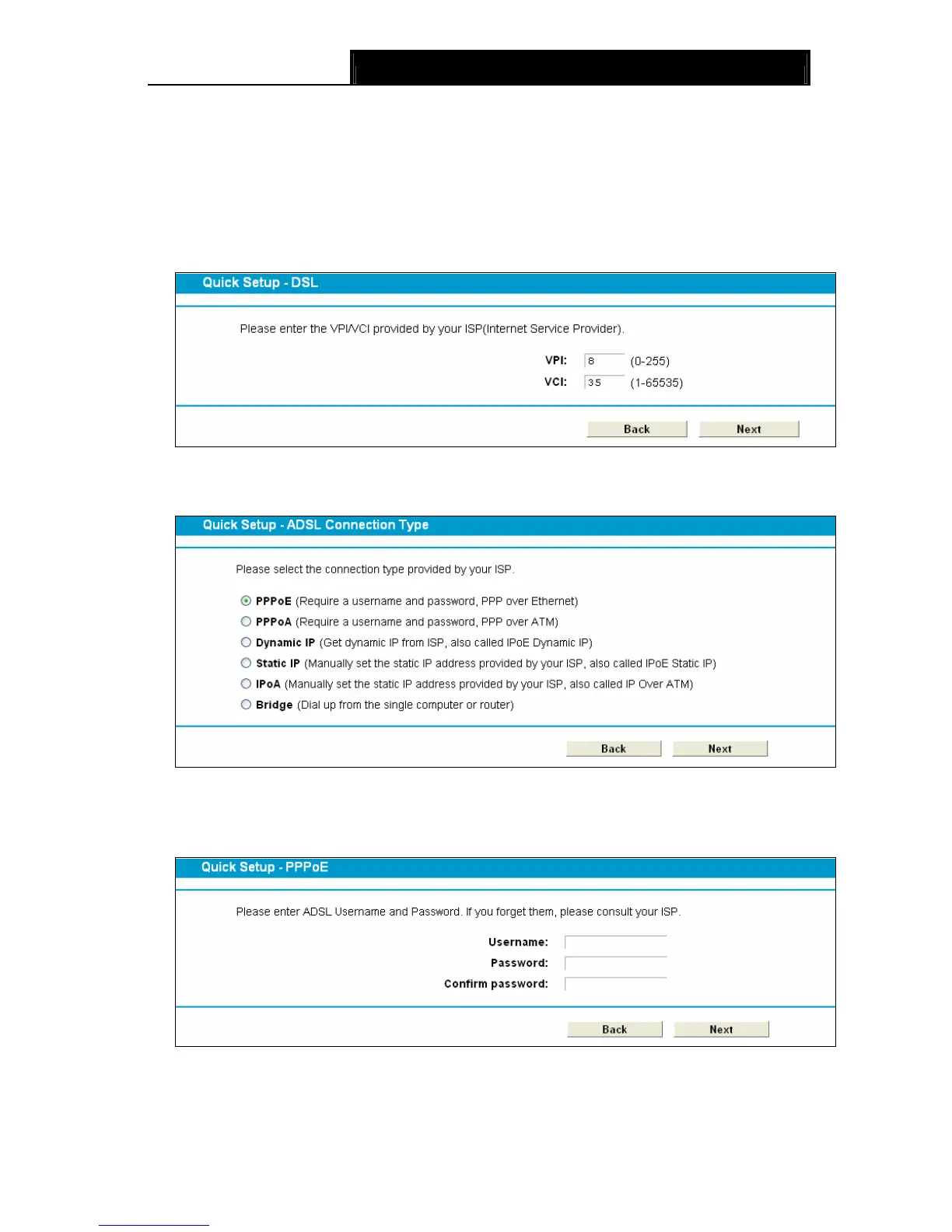

Figure 3-11
2) Please select the Connection Type given by your ISP.
Figure 3-12
3) Here we use PPPoE as an example. Enter the Username, Password and Confirm
Password given by your ISP, and then click Next.
Figure 3-13
