Configuring LAG
Choose the menu Switching > LAG to load the following page.

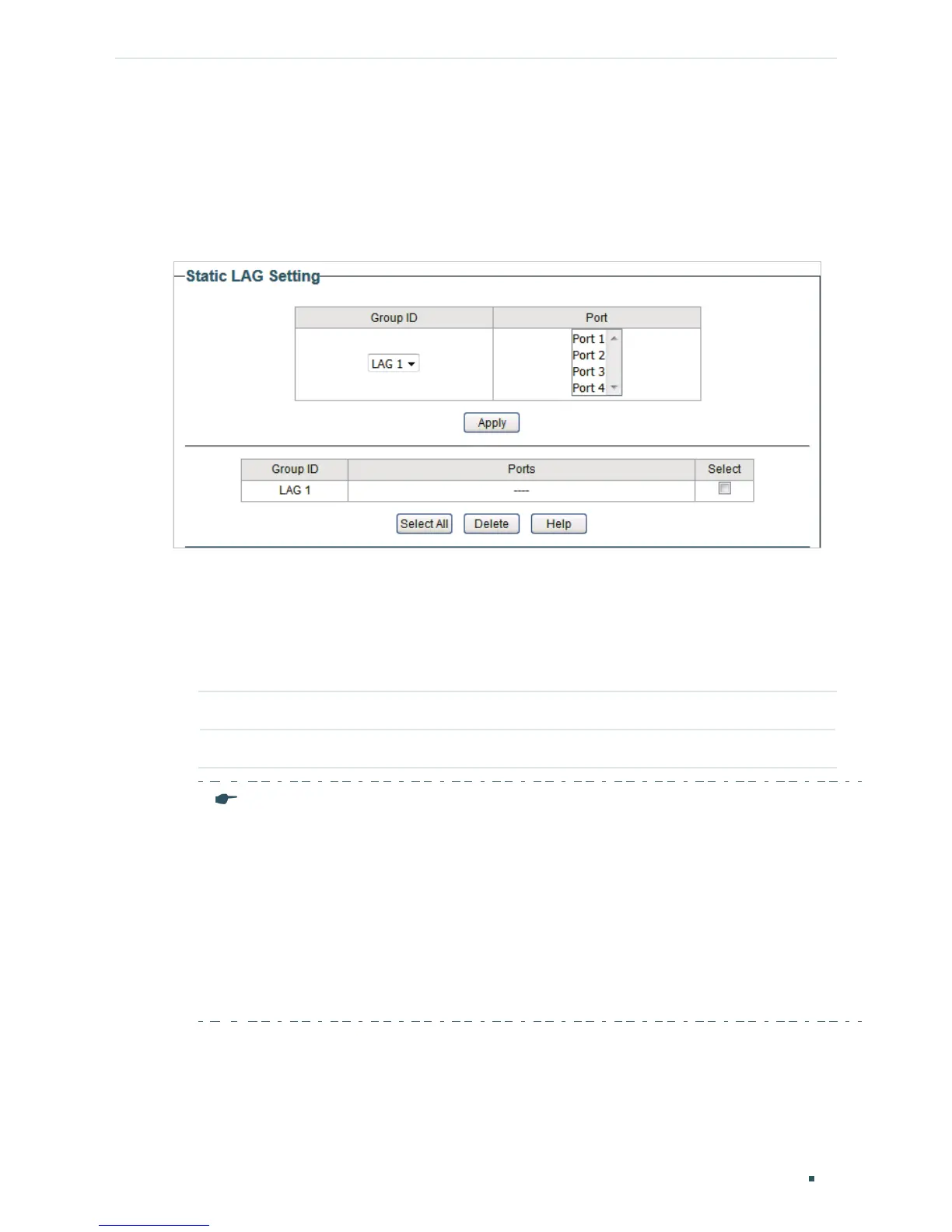

Figure 4-1 Configuring LAG
Follow these steps to configure LAG:
1) Select the desired LAG group from the drop-down list.
2) Click the ports to add to the LAG group. Click Apply.
3) In the table below, you can verify the LAG configuration result. You can select the LAG
and click Delete to delete ports from the LAG group.
Group ID Displays the ID of the LAG group.
Ports Displays the LAG member ports.
Note:
•
It is recommended to configure the LAG function before configuring the other functions for
the member ports.
•
Ensure that devices on both ends of the aggregation link use the same number of physical
ports with the same speed and duplex mode, flow control setting and QoS setting.
•
Mirroring and mirrored port cannot be added to an LAG group.
•
The max number of LAG groups that the switch can support is as follows:
1 for TL-SG105E; 2 for TL-SG108E; 8 for TL-SG116E
•
Each LAG group has 2 port members at least and 4 port members at most.
