Configuring VLAN Configuring 802.1Q VLAN
User Guide
51
VLAN Name Enter a VLAN name for identification. The VLAN name should not be more
than 10 characters using digits, letters, hyphens and underlines only.
Untagged /
Tagged / Not
Member
Set the port as an untagged port, as a tagged port or not as a member port
in the VLAN.
Untagged: Select the egress rule of the port as Untagged. An untagged
port will forward frames after removing the VLAN tags.
Tagged: Select the egress rule of the port as Tagged. A tagged port will
forward frames with the current VLAN tags remained.
Not Member: The port that is not selected as a member will not forward
frames in the target VLAN.
3) In the table below, you can verify the configuration result of 802.1Q VLAN. You can
delete a VLAN as you wish by selecting the VLAN and clicking Delete.
Note:
•
By default, all the ports are added to VLAN 1.
•
The port can be removed from VLAN 1 only when the port is also a member of the other
VLANs.
•
Once a port is removed from all the current VLANs, it is added to VLAN 1 automatically.
•
VLAN 1 cannot be deleted.
4.2 Configuring the PVID
Choose the menu VLAN > 802.1Q PVID Setting to load the following page.

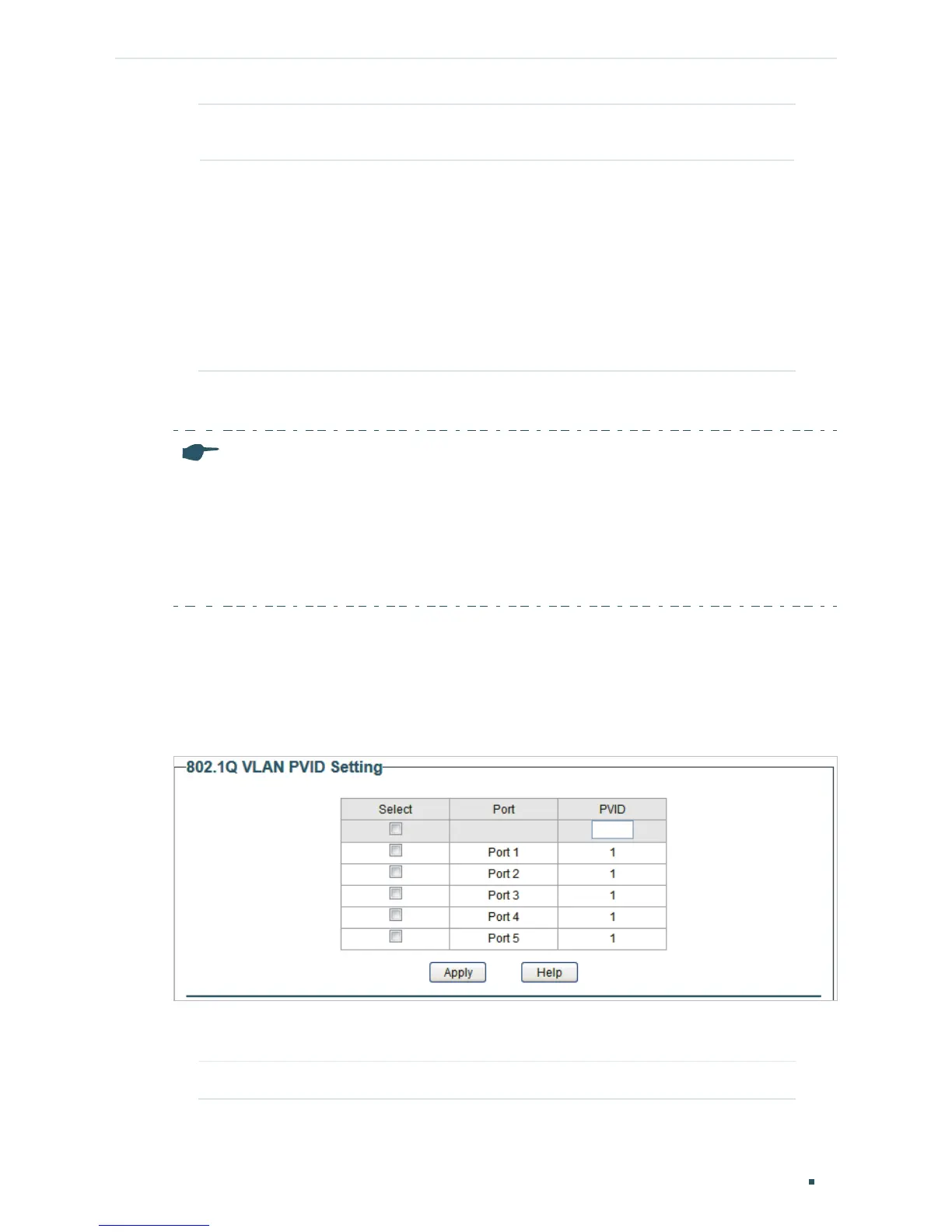

Figure 4-2 Configuring 802.1Q PVID
Follow these steps to configure the PVID:
1) Select the ports and set the PVID for the ports.
PVID Set the PVID for the ports. The PVID ranges from 1 to 4094.
2) Click Apply.
