Configuring VLAN Configuration Example for 802.1Q VLAN
2) Choose the menu VLAN > 802.1Q VLAN to load the following page. Specify the VLAN
ID as 2, specify the VLAN name as Dept_A. Add port 2 to the VLAN as an untagged port.
Add port 4 to the VLAN as a tagged port. Click Add/Modify.

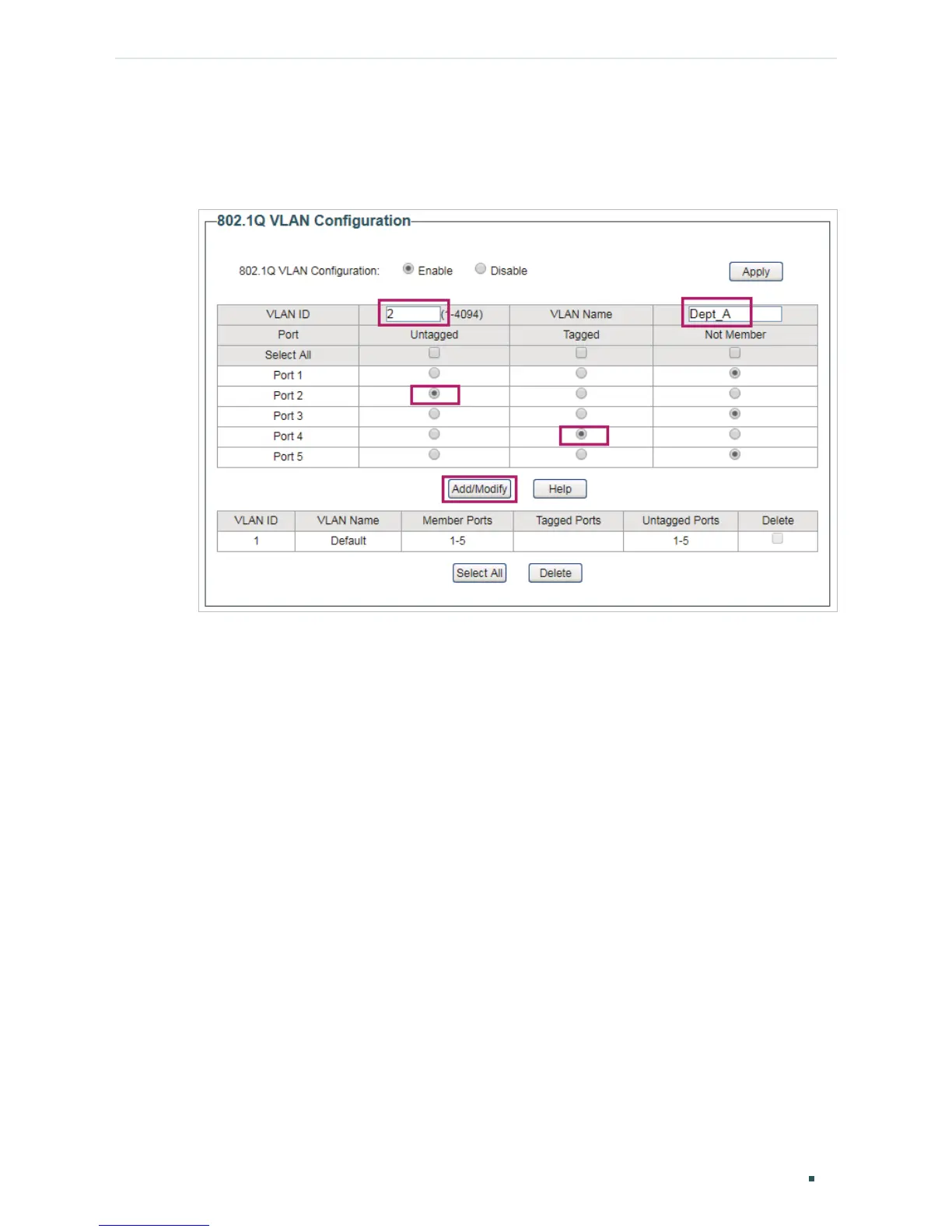

Figure 5-3 Creating VLAN 2 and Adding Ports to the VLAN
