TL-WA601G 108M Wireless Access Point User Guide
9
There are the detailed explanations for each web page's key functions below.
3.2 Status
The Status page displays the AP's current status and configuration. All information is read-only.
Network
This field displays the current settings or information for the Network, including the MAC address,
IP address and Subnet Mask.
Wireless
This field displays basic information or status for wireless function, including Operating Mode,
SSID, Channel, Mode, MAC Address and IP Address.
Traffic Statistics
This field displays the AP's traffic statistics.
System Up Time
The time of the AP running from it's powered on or reset.

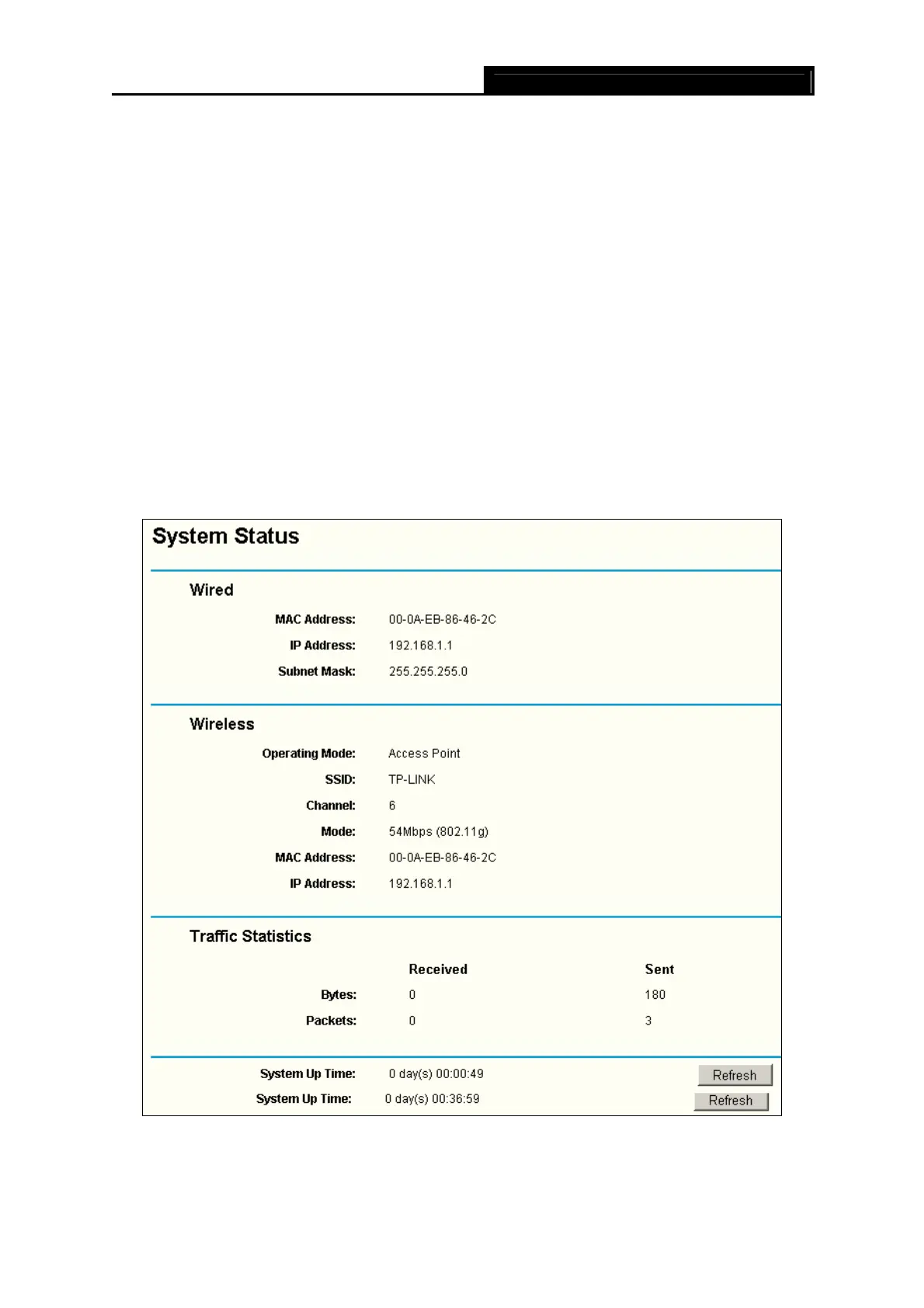

Figure 3-3 AP Status
