TL-WA601G 108M Wireless Access Point User Guide
27

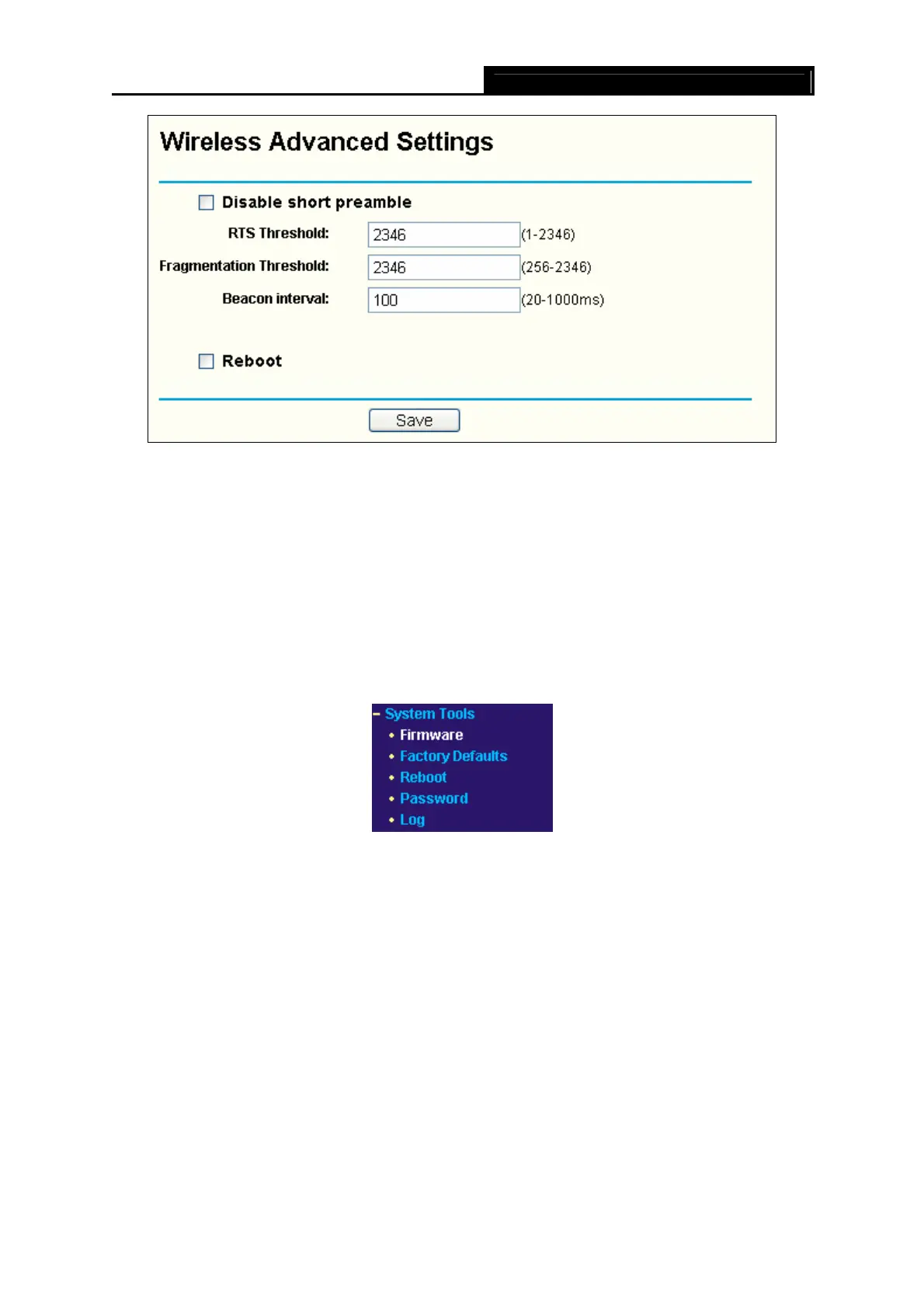

Figure 3-19 AP Wireless Advanced Settings
¾ Disable short preamble - Disable short preamble and use long preamble only. 802.11b
mode supports only long preamble and this parameter will be ignored.
¾ RTS threshold - RTS/CTS Threshold, the packet size that is used to determine if RTS/CTS
should be sent.
¾ Fragmentation threshold - The maximum packet size used for fragmentation.
¾ Beacon Interval - The interval time between two successive beacons.
3.7 System Tools
Figure 3-20 The System Tools menu
There are five submenus under the System Tools menu (shown in Figure 3-20): Firmware,
Factory Defaults, Reboot, Password, and Log. Click any of them, and you will be able to
configure the corresponding function. The detailed explanations for each submenu are provided
below.
3.7.1 Firmware
The page (shown in Figure 3-21) allows you to upgrade the latest version of firmware for the AP.
