TL-WA601G 108M Wireless Access Point User Guide
2
Chapter 2 Hardware Installation

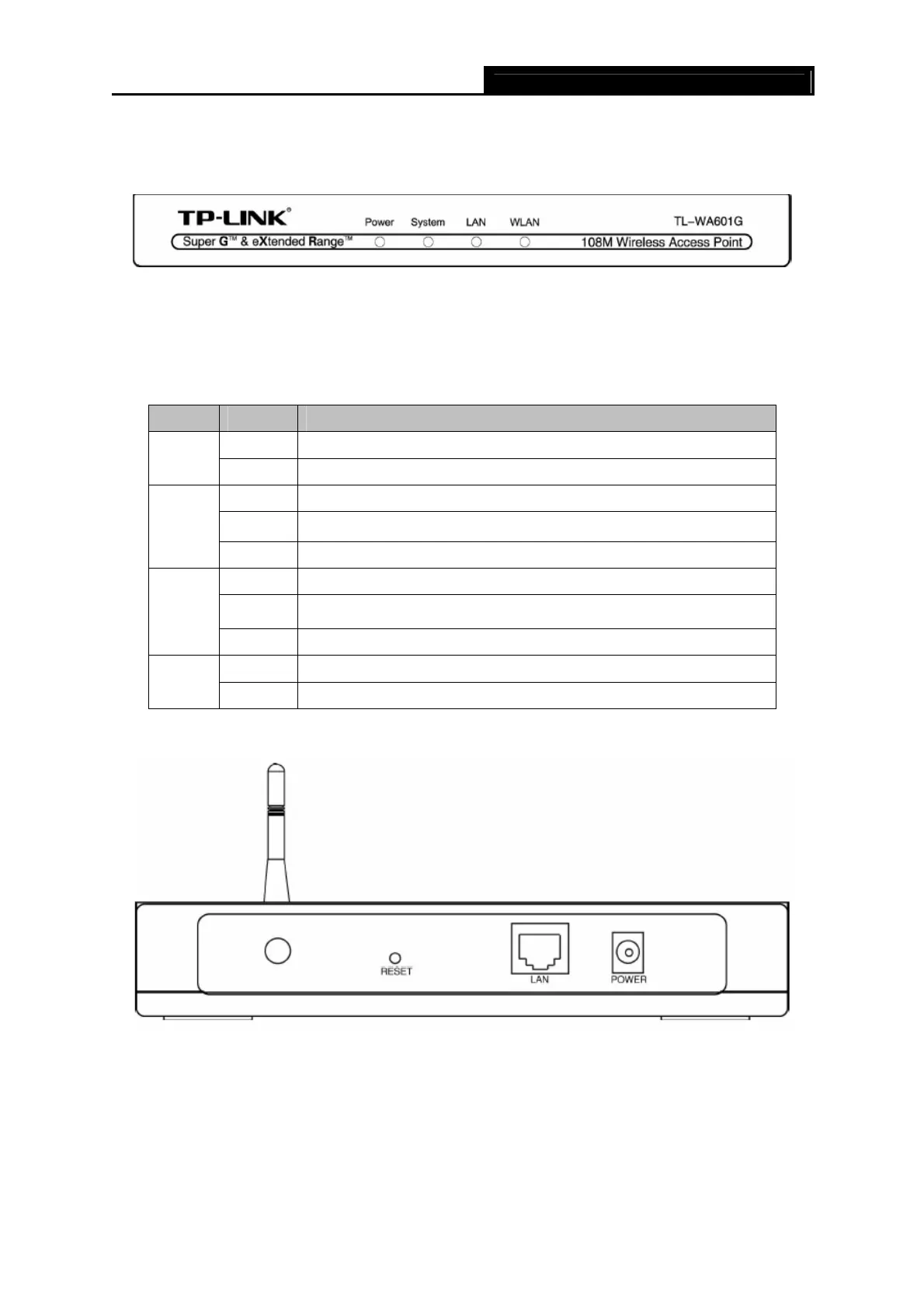

2.1 The Front Panel
Figure 2-1
The LED indicators displayed on the front panel, the status of these LED indicators represent the
device’s working circs. For details, please refer to 2.1.1 LED Explanation
2.1.1 LED Explanation
Name Status Description
Off No Power
Power
On Power on
Off The AP has a hardware error
On
The AP is initialising
System
Flashing The AP is working properly
Off There is no device linked to the corresponding port
On There is a device linked to the corresponding port but no activity
LAN
Flashing There is an active device linked to the corresponding port
Off The Wireless Radio function is disabled
WLAN
Flashing The Wireless Radio function is enabled
2.2 The Back Panel
Figure 2-2
¾ Wireless antenna
¾ Factory Default Reset button
¾ There are two ways to reset the AP's factory defaults:
• Use the Factory Defaults function on System Tools -> Factory Defaults page in the
AP's Web-based Utility.
