Pr
oduct Installation
■
Desktop Installation
To install the device on the desktop, follow the steps:
1.
Se
t the device on a flat surface which is strong enough to support the
entire weight of the device with all fittings.
2.
Re
move the adhesive backing papers from the rubber feet.
3.

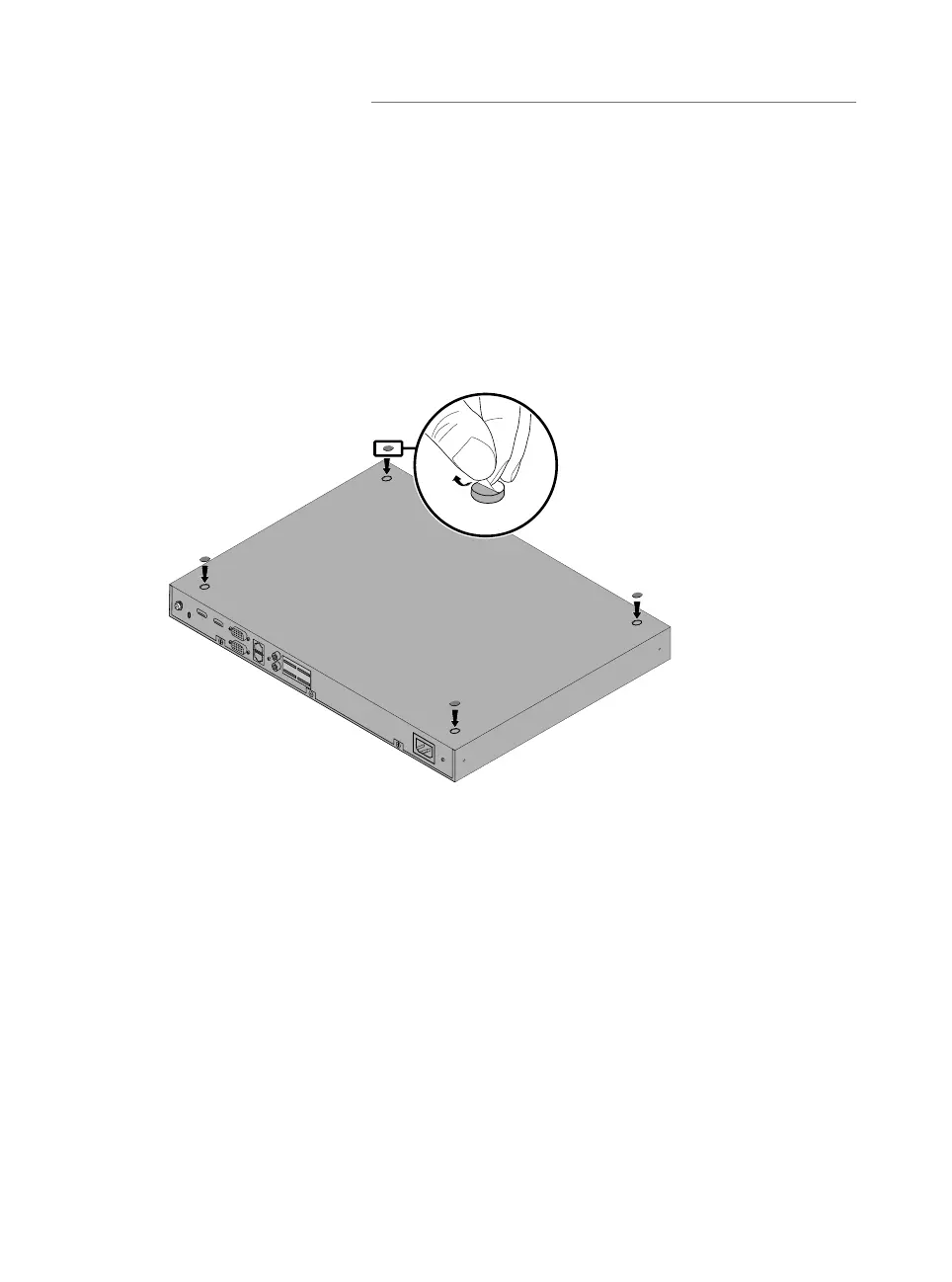

Tu
rnover the device and attach the supplied rubber feet to the
recessed areas on the bottom at each corner of the device.
■
Rack Installation
To install the device in an EIA standard-sized, 19-inch rack, follow the
instructions described below:
1. Check the efficiency of the grounding system and the stability of the
rack.
2. Secure the supplied rack-mounting brackets to each side of the device
with supplied screws, as illustrated in the following figure.
