Status-LED
General information

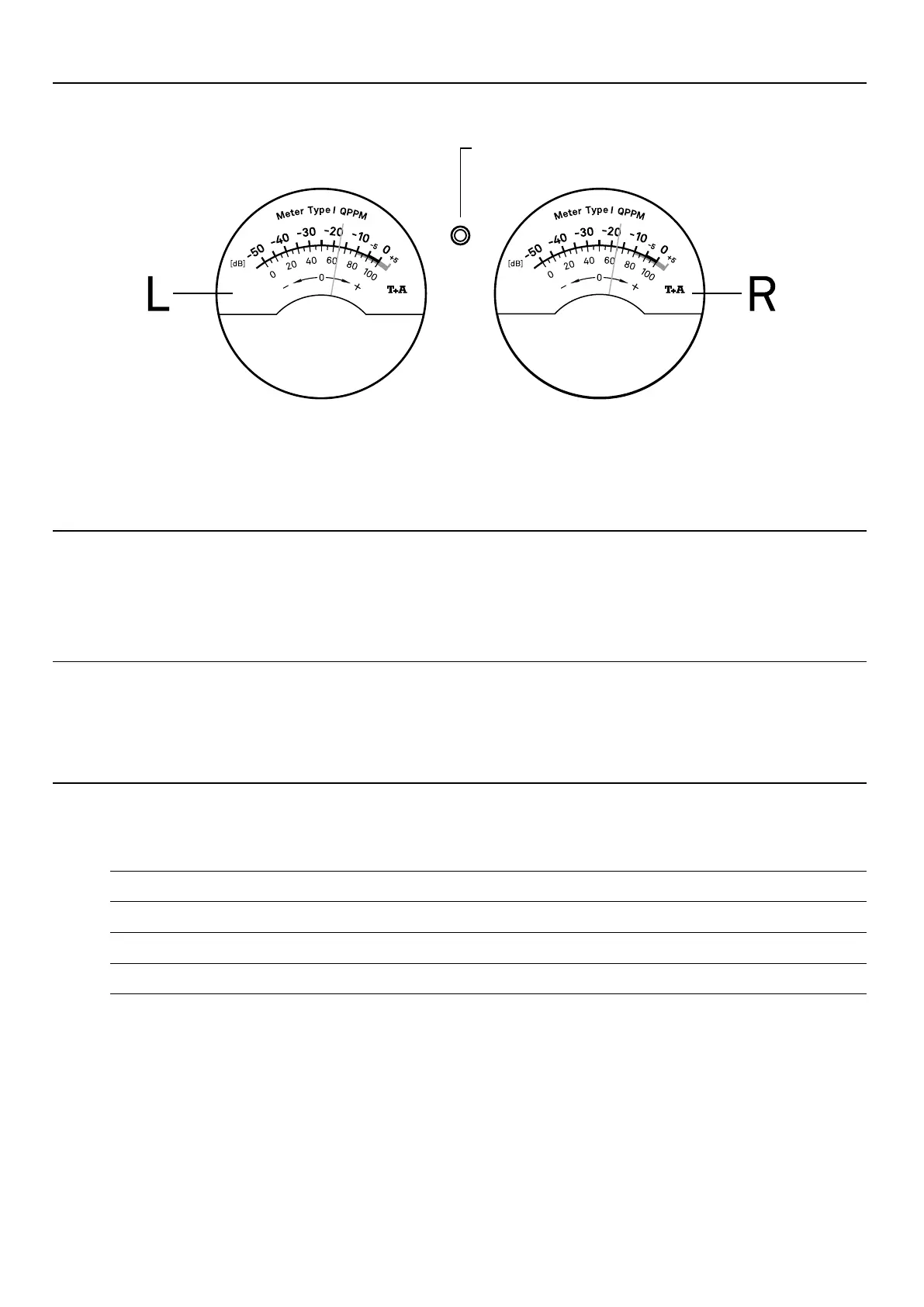

The meters of the DAC 200 are used for various display functions. There are 3 scales available for the dif-
ferent measurements:
• VU Scale [-50...+5 dB] for level measurements
• 0...100 Scale for temperature and relative % measurements
• - 0 + scale for frequency offset and trend measurements
j
The scaling and characteristics of the meter corresponds to those for QPPM meters of type I (DIN PPM).
Status LED
The status LED between the two meters indicates the current display function.
Status-LED Display function
Off VU-Meter - Input level
Blue VU-Meter - Output level
Red Display of temperature
Green Display of Stream quality
0
Meter
48
